   FPV/ Aerial Photography Cameras/Video Recorder/Capture DJI Zenmuse Z3 Gimbal 1240WP Camera 3.5x Optical Zoom, 2x Digital Zoom
   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc.
SKU:  DJI-Z3
Browse DJI

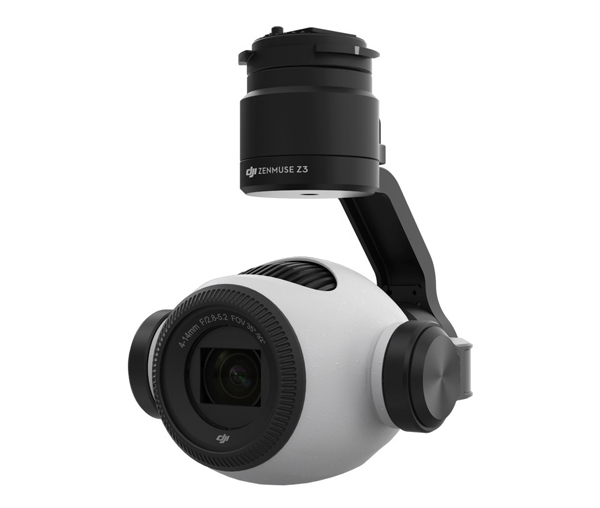

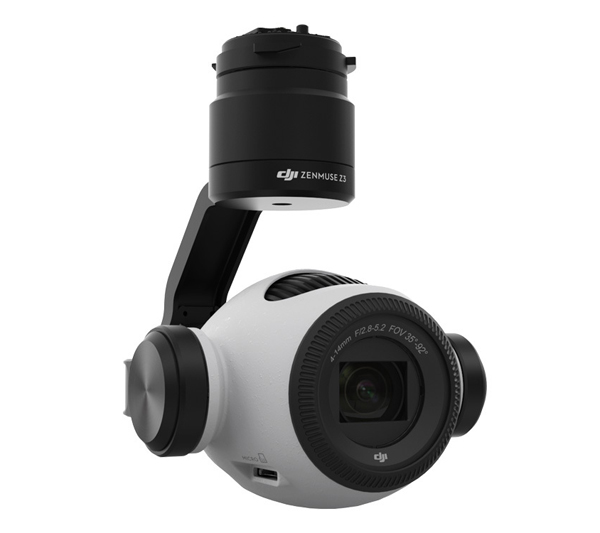

DJI Zenmuse Z3 Gimbal 1240WP Camera 3.5x Optical Zoom, 2x Digital Zoom
Customers rating.
Add To Wish List
Added:2016/08/01
Updated:2016/08/01
Follow Us on:


  Tags: DJI Zenmuse Z3 Gimbal 1240WP Camera 3.5x Optical Zoom  2x Digital Zoom

Features:

INTEGRATED ZOOM

The DJI Zenmuse Z3 is an integrated aerial zoom camera based on DJI’s class leading Zenmuse X3 and optimized for still photography. A 7x zoom made up of 3.5x optical and 2x digital lossless zoom creates a 22mm to 77mm equivalent focal length range, making it ideal for industrial applications.




ENHANCED YAW STABILITY

When a camera is zoomed in the smallest movements are magnified. Adding an additional layer of stability to the yaw control of the Z3 is a custom designed reaction wheel. This works in tandem with the normal yaw motor to allow for more refined movement.


HIGH QUALITY IMAGING

Featuring the same highly refined Sony 1/2.3 inch sensor found on the DJI Inspire 1 2.0 and DJI Phantom 4, image quality is class leading. Still images can be captured at a resolution of 12 megapixels, while Adobe DNG RAW support allows for advanced image editing. Video can be captured at up to 30 frames per second in crisp 4K.




APPLICATIONS

The ability to zoom in the air creates many new opportunities to streamline and enhance industrial and commercial drone use, from power line inspection to search and rescue. It also provides aerial photographers with greater control over composition.


RAPID SETUP AND EXTENDED FLIGHT TIME

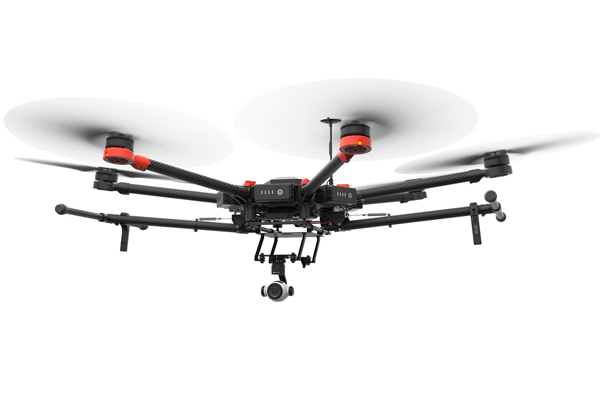

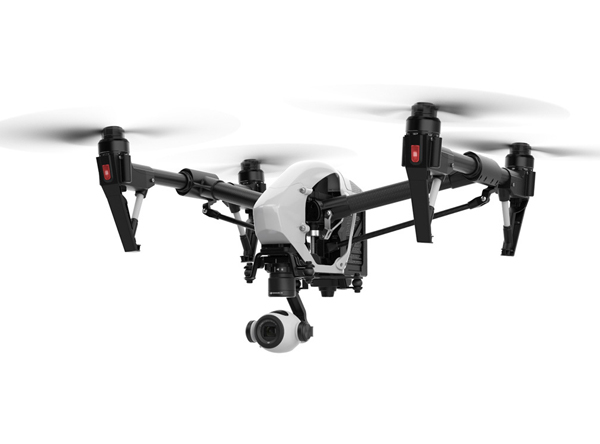

Flying with the Zenmuse Z3 is as simple as attaching it to the DJI Inspire 1, Matrice 100 or Matrice 600. Once connected, it works seamlessly with the integrated DJI Lightbridge and Lightbridge 2 found on these platforms to provide 3.1mi (5km) of HD transmission range. Aircraft setup can be further accelerated using the DJI SDK to create industry specific aircraft automation protocols that maximize aircraft efficiency.


Flight times when used with a DJI Inspire 1 reach up to 19 minutes, and can even reach 30 minutes when flying a dual-battery equipped Matrice 100 and 39 minutes using the Matrice 600. Longer flight times maximize airtime, increasing the efficiency of industrial and commercial projects while providing photographers with additional time to wait for the right light, compose and capture the perfect shot.



Specifications:

DJI Zenmuse Z3 Gimbal 1240WP Camera 3.5x Optical Zoom, 2x Digital Zoom

GENERAL

NameZenmuse Z3
Dimensions105×115×85 mm
Weight262 g

CAMERA

SensorCMOS, 1/2.3"
Max Pixels: 12.76 M, Effective Pixels: 12.4M
Lens3.5x Optical Zoom, 22–77mm Equivalent
F2.8 (Wide) - F5.2 (Tele), FOV 92° (Wide) - 35° (Tele)
Photo Resolutions4:3
  • L: 12M, 4000x3000
16:9
  • L: 9M, 4000x2250
Video ResolutionsUHD: 4K (4096x2160) 24/25p
4K (3840x2160) 24/25/30p
2.7K (2704×1520) 24/25/30p
FHD: 1920x1080 24/25/30/48/50/60p
Video QualitySuperfine, Fine, Normal
Photo FormatsJPEG, DNG, JPEG+DNG
Video FormatsMOV, MP4
Video Repair FeatureSupported
Working ModesCapture, Record, Playback
Still Photography ModesSingle shot, Burst shooting: 3/5/7 frames, Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV bias, Time-lapse
Exposure ModeAuto, Shutter
Exposure Compensation±3.0 (1/3 increments)
Metering ModeCenter-weighted metering, Average metering, Spot metering (Area option 12x8)
AE LockSupported
Electronic Shutter Speed8 - 1/8000s
White BalanceAuto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K–10000K)
ISO Range
  • 100 - 3200 (video)
  • 100 - 1600 (photo)
Video CaptionsSupported
Anti-flickerAuto, 50Hz, 60Hz
PAL/NTSCSupported
Supported SD Cards
  • MicroSD(SD/SDHC/SDXC)
  • Max. Capacity: 64 GB, Class 10 or UHS-1
Supported File Systems
  • FAT32 (≤ 32 GB)
  • exFAT (> 32 GB)
USB PortUSB 2.0 Host/Device

Includes/Requires:
Includes:
1 x Zenmuse Z3 Gimbal Camera
1 x 16GM Micro SD card
