   FPV/ Aerial Photography Video Glasses/ Monitors 7 inch 5.8G Receiver Integrated FPV Monitor
SKU:  FPV75A

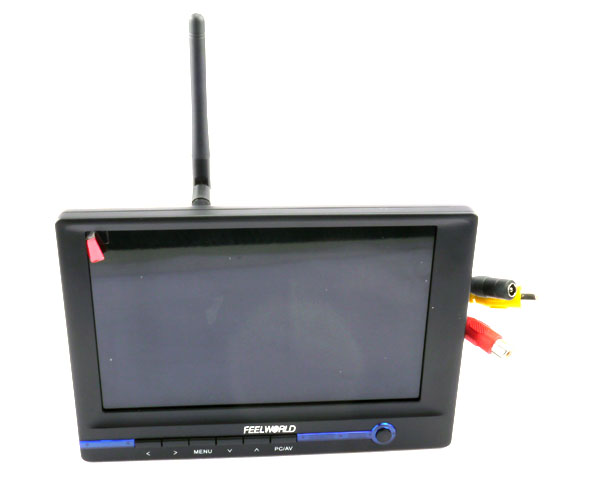

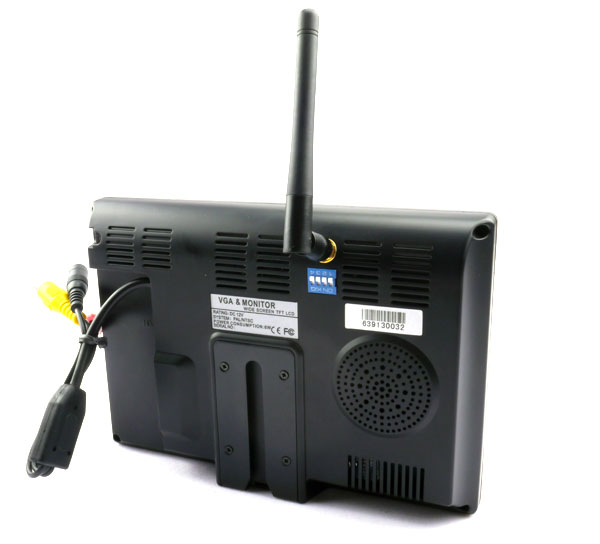

7 inch 5.8G Receiver Integrated FPV Monitor
Customers rating.
Manual:
Add To Wish List
Added:2013/09/06
Updated:2016/07/06
Follow Us on:


  Tags: outdoor monitor  FPV monitor  5.8G A/V receiver  Camera-top monitor

Features:
No Blue Screen, specially designed for FPV application.
Specifications:

7 inch 5.8G Receiver Integrated FPV Monitor

Display

Model                                FPV-639A
Resolution                        800 x 480 Pixels
Aspect Ratio                     16:9
Brightness                         300cd/m2
Contrast                             500:1

Backlight                             LED
Support Video Format      PAL-4.43; NTSC-3.58
Input

Input Singnal                     Video\Audio

Power

Input Voltage                      DC:6~20V
Power Consumption       ≦6W

Dimension

Size                                    184(L)x126(W)x32(H)mm


Antenna connector: RP-SMA, jack (monitor side) See connector type diagram



*  THE MANUFACTURER USES SAME OUTER PACKING FOR MANY DIFFERENT VERSIONS OF PRODUCTS, SO THERE MAY HAVE MANY DISCREPANCIES  ON THE OUTER PACKING, PLEASE DISREGARD THOSE DISCREPANCIES IF ANY.


Includes/Requires:
Includes:
1 x monitor
1 x 2db antenna

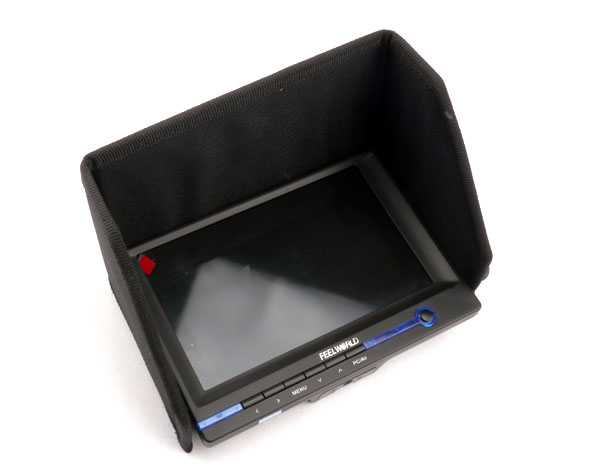

1 x sun shield


*Electronic version Instruction Manual   (this manual is a general version and for reference only, it is not written for this specific type monitor)
