   FPV/ Aerial Photography Video TX/RX & Accy. 5.8GHz 40CH Auto-scan Diversity Receiver FR632 | New 40Ch Edition
SKU:  FR-632

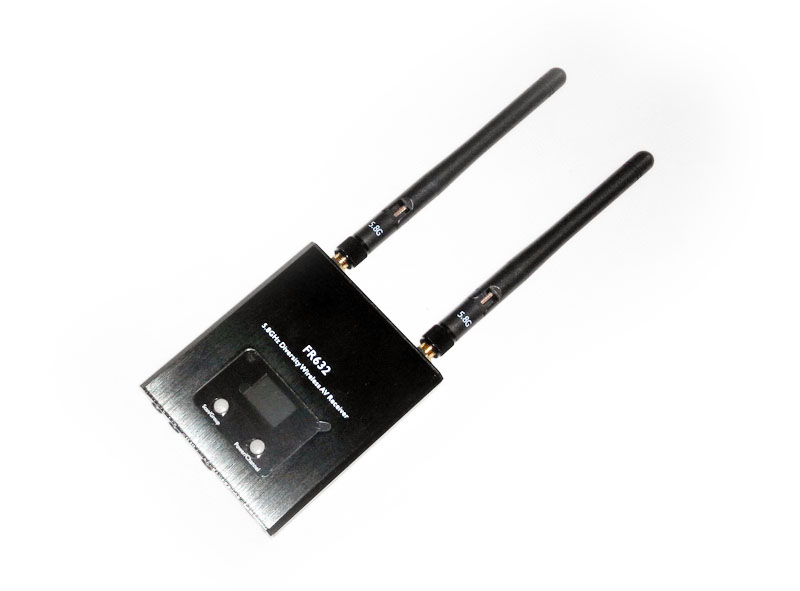

5.8GHz 40CH Auto-scan Diversity Receiver FR632 | New 40Ch Edition
Customers rating.
Add To Wish List
Added:2014/07/15
Updated:2016/01/20
Follow Us on:


  Tags: 5.8GHz 40CH Auto-scan Diversity Receiver FR632

Features:

Special features:
32 Channel
Automatic Switching Built-in Dual Receiver Automatically for best reception
Dual buffered AV outputs
Unique channel search function
Large input voltage range, Very low current consumption
Not affect by 2.4GHz R/C Radios
LCD display, high brightness, very intuitive work status
Specifications:

Super Light 5.8G 200mW  40Ch Transmitter (6.7g only, 2-7S input) FT952

Specification:
1 Receiving frequency: ISM 5.6GHz-5.95GHz 32 CH
2 Operating Voltage : +6.0V~+28.0V
3 Supply current : <130mA/12V DC
4 Video Output Level: 1V±0.2Vp-p/75Ω
5 Audio Output Level: 0.5 ~ 2.0Vp-p/10KΩ
6 TV System: PAL/NTSC/SECAM (AUTO)
7 Wireless Receiver Sensitivity: <-92dBm(15dBuV)
8 Antenna Connector: SMA Connector
9 Weight: 92g
10 Dimensions (L x W x H): 78x68x15mm
11 Operating Temperature: -10℃ ~ +85 ℃
12 Antenna connector type: SMA jack (receiver module side)



Special hint:
We discovered that in the recent batch, on some of the transmitters, the A/V cables supplied are cross-wired, the vido out comes on the RED lead instead of the YELLOW lead, in case your transmitter doesn't work properly, please check the A/V cable first and see if it is caused by the cross-wired cables.

To resolve this issue, you can use the RED connector as video input.

Sorry for this inconvenience.

Includes/Requires:

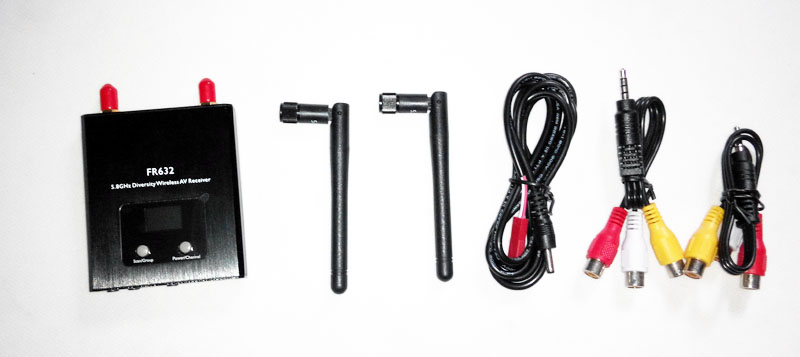

Includes:
1 x receiver (RX)
1 x power supply cable
2 x 5.8G 2db antennas
2 x RCA wires
1 x manual
