Looking for a monitor compatible with all your 5.8G transmitters of different bands? here come the one for all monitor, all bands 32 channel edition 5.8G receiver integrated monitor.

Features:
1. Built-in 5.8G Receiver
2. Not affect by 2.4GHz R/C Radios, no blue-screen effect.
3. Small, light weight, durable
4. All bands, 32 channels edition, compatible with all 5.8G FPV devices currently available on market, including fat shark, boscam 5.8G transmitters.

5.8GHz  32CH 7 inch 800x480 LCD FPV Monitor W/Light Shield All bands 32CH Edition

Specification:
1.  Video input, Audio(Lotus head RCA interface)
2.  Power input: DC 12V
3.  Sensitivity:- 90dBm; Antenna:5dBi
4.  Screen size: 7’’; Resolution : 800 x 480
5.  Brightness: 400-450cd/m2
6.  View Angle: 70°/70°,50°/70°(L/R,U/D)
7.  Video color mode:PAL-4.43; NTSC-3.58(automatically recognizes)
8.  Working Voltage: DC12V
9.  Power Consumption: ≤6w
10.  Working temperature: -20℃~ 60℃
11.  Size:180(W)×120(H)×23(D)mm

Antenna connection type: RP-SMA, jack (on monitor side)


About Menu
Menu:Light, contrast, Color, Language, Picture mode
Press MENU to inter menu, press +\- to adjust.
Press V1/V2 to switch video channel

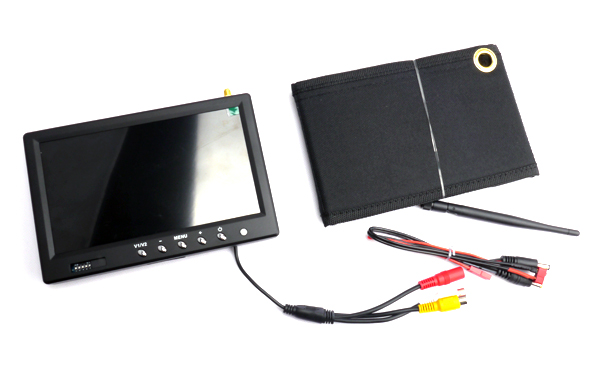

Includes:
1 x monitor
1 x light shield (Fabric hood)
1 x 5.8G 5db antennas
1 x JST plug cable
1 x T plug cable
