   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. 3rd Axis Extension Board of Joystick Controller Simple Rocker for Handheld BL Gimbal (extension board only)
SKU:  TH-3AX
Accessories Required

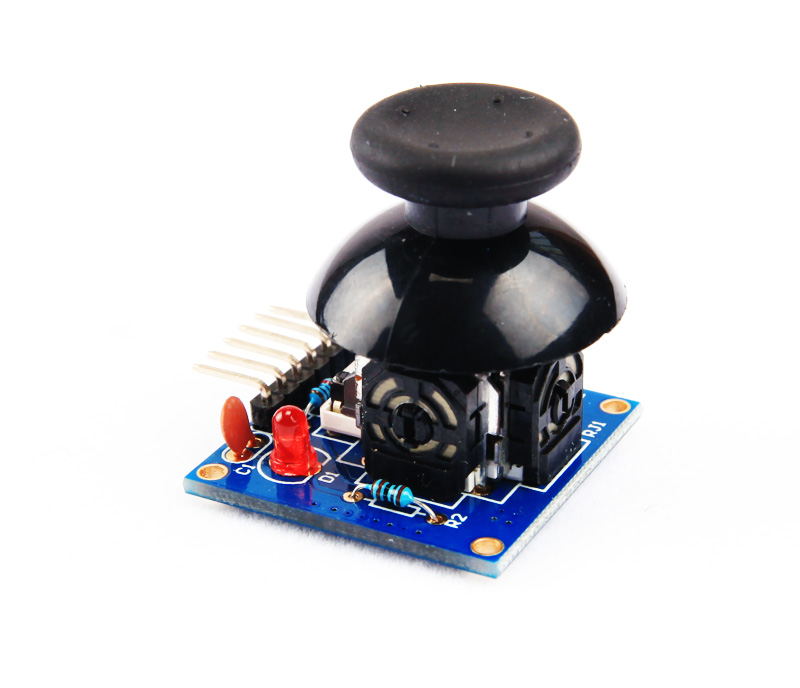

3rd Axis Extension Board of Joystick Controller Simple Rocker for Handheld BL Gimbal (extension board only)
Customers rating.
Add To Wish List
Added:2014/04/04
Updated:2016/11/01
Follow Us on:



  Tags: 3rd  Axis  Extension  Board  of  Joystick  Controller  Simple  Rocker  for  Handheld  BL  Gimbal  extension  board  only

Features:

Simple Rocker 0.9 is the extension board for Simple Rocker 1.2.
Output YAW through left-right control; Output camera signal through up-down control. (Applicable to camera focus and shutter trigger.)
When main board assembled with extension board, the output interface is on main board. PMW1 and PMW2 are both output same signal- camera signal. ROLL, PITCH, and YAW are controlled through serial ports.
Camera signal is usually turned off. Press the joystick on main board to activate output PWM, and release the joystick to turn it off.
Specifications:

Joystick Controller Simple Rocker 1.2 for Handheld Brushless Gimbal (Main Board Only)


Includes/Requires:
Includes:

1 x extension board (the 3rd axis) for Joystick Controller

Requires:
1 x Joystick controller main board
