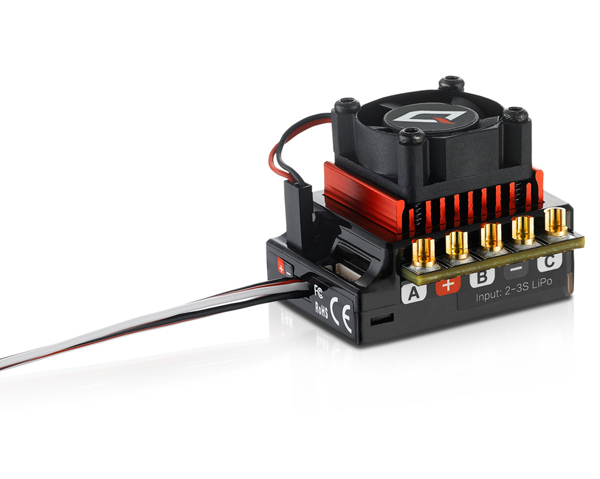

Hobbywing QuicRun WP-10BL120-SENSORED 120A Waterproofing Brushless ESC for Cars

Specifications

Product Name

QuicRun 10BL60 Sensored

QuicRun 10BL120 Sensored

Product Number

30108000

30125000

Type

Scale

1/10th

Brushed/Brushless

BL

Sensored/Sensorless

SD

Waterproof

No

Specifications

Cont./Peak Current

60A/380A

120A/760A

Input

2-3S LiPo/6-9 Cell NiMH

2-3S Lipo/5-9 Cell NiMH

BEC Output

Linear Mode:6V/2A

Linear Mode:6V@3A

Wires & Connectors

Input Wires

Red-12AWG-200mm*1/Black-12AWG-200mm*1

Output Wires

Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1

Input Connectors

No

Output Connecotors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

25.0x25.0x10.0mm

25x25x10mm

Voltage Range

5-8.4V

Powered by

Powered by BEC

(Powered by the Battery)

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

Program/Throttle Wire

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

33x28x31.5mm (w/ Fan)

Weight

59g

105g105g (w/ Wires)

Applications

Motors

SL BL Motors/SD BL Motors

Vehicles

1/10thTouring Cars/Buggies/Drift Cars/F1

KV Rating/T Count

22S LiPo: 1/10th Touring Cars≥8.5T, 1/10th Buggies≥13.5T 3S LiPo: 1/10th Touring Cars≥13.5T, 1/10th Buggies≥17.5T (3650 Motors)

2SLipo: 1/10thTouring Cars≥4.5T；1/10thBuggies≥5.5T
3SLipo: 1/10thTouring Cars≥10.5T；1/10thBuggies≥13.5T

Programmable Items

Installation & Connection

Includes:
1 x ESC QuicRun WP-10BL120-SENSORED
