NAME:

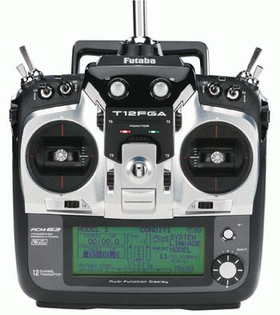

 72Mhz Futaba 12FGA 12-Channel FM/PCM Radio System W/R5114DPS, 2x S9154, 2x S9255 Mode 1
SKU:  T12FGA72
Click for more images
Customer Rating:     Rate
SUBCATEGORY:  12 - 14 Channel Radios
MANUFACTURER:   Futaba
WEIGHT:
SIZE:
Add To Wish List    Universal Currency ConverterUCC    Weights & Measures Converter   Freight Calculator Freight Calculator
More Pics: Album1

Added:2008/01/12  Updated:2008/01/14


Features:

  Futaba 12FGA is a 12-channel radio system with PCM-G3, PCM1024 and FM selectable. PCM-G3 system has a 40% faster response than the PCM1024, giving you a unmatched resolution of 2048. Futaba 12FG has 12 linear channels and 2 switch channels. Futaba 12FG has preset mixing and programmable mixing designed for airplanes, gliders and helicopters.
The other features of the Futaba 12FG includes:

* Large graphic LCD and user-friendly key stroke for easy setup
* Stick is supported by dual ball-bearings
* Uses WFSS - Wireless Frequency Setting System for setting frequency of receiver Futaba FP-R5114DPS
* Uses SD card (Secure Digital memory card) - not included
* Easy adjustment of stick-lever tension and ratchet system

Specifications:

  Specifications for the Futaba 12FG:

* Frequency: 72Mhz
* Channels available: 17,18, 19, 20, 21, 50, 51, 52, 53 & 54 channel.
* Modulation: PCM-G3, PCM1024 or FM/PPM switchable
* Power supply: 7.2v HT6F1700B NiMh battery
* Current drain: 500mA (average) for transmitter, 75mA (for receiver - no servos)
* Weight of receiver R5114DPS: 32.5g
* Dimension of receiver R5114DPS: 37.7x52.3x16mm

Includes/Requires:

  Includes:
1 x Futaba T12FGA
1 x Futaba R5114DPS PCM-G3 receiver
2 x S9255 digital servos
2 x S9154 digital servos
1 x HT6F1700B transmitter NiMh battery,7.2V/1700mAh
1 x Futaba battery charger HBC-2C(4), 230V input, 7.2V & 4.8V output
1 x instruction manual (English)
