This is a power distribution hub specially designed for multi-rotor speed controller connection.
Well matched with KK flight control unit, also can be used for other multi-rotor application.
It makes the wiring of your multi-rotor system neater, nicer, securer.
1. Weld the power input wires of ESCs to the hub, suggested inner circle for "+", and outter circle for "-".
2. Isolate the hub with tape or shrinking tube, or use double side tape to fix it to the main frame of your multi-rotor aircraft.
Max ESC number: 8
Size: 5 x 5cm
Fixing hole diameter: 3.5mm

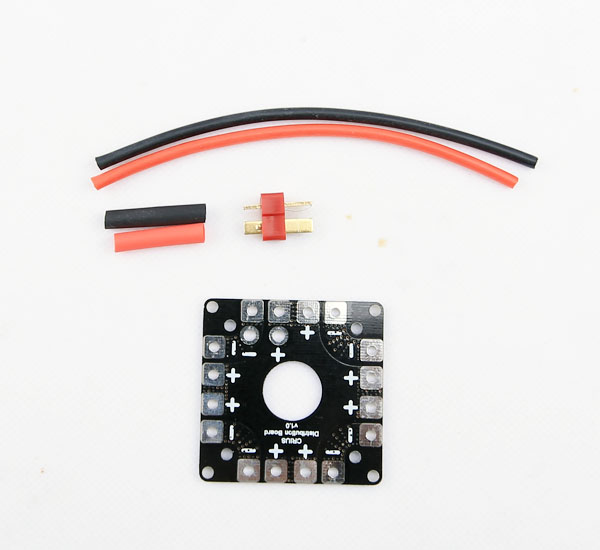

1 x wiring hub
1 x T connector
2 x silicon wires (AWG 14)
2 x heat shrinking tube
* This is a PCB board for easier wiring purpose, and does not include ESC or other accessories.
Primary Additional Accessories for the completion of the Universal 2-8 Way Multi-rotor Power Distribution Hub Type 2
