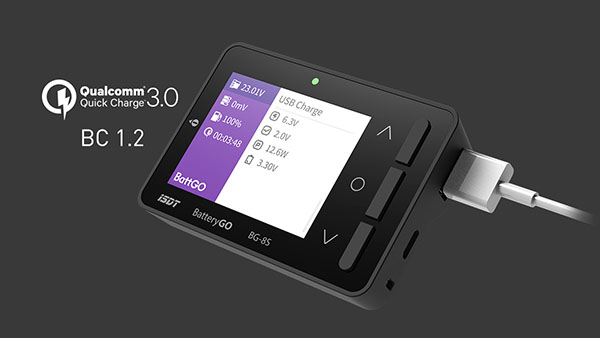

Operating voltage range: 5.0V-36V Balance port 1st string Input voltage range: 0.8V-15V Balance port 2-8 string Input voltage range: 0.8V-4.8V Number of batteries supported: 1-8S Voltage measurement accuracy: ± 0.005V @ 4.2V Cell balance accuracy: <0.005V Supports USB charging: QC 2.0 / 3.0, BC1.2, maximum output 12V / 2A Support for smart batteries: Set the charge and discharge parameters, query the battery information and use Supported battery types: (1-8S) / LiPo (1-8S) / LiFe (1-8S) Lilon (1-8S) / NiMH / Cd (1-10S) Display Type: 2.4 color 320 × 240 26 million color IPS LCD Dimensions : 80 X 55 X 19 mm Weight: 59g
Includes: 1 x iSDT BG-8S battery tester
