Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Power Supplies (AC/DC adaptors/Power Panel/Power distributor) eFuel 110V Input 15-24V 60A 1200 Watt Output Switching AC/DC Power Adapter - 110V Edition
SKU:  1200W110
Browse SKYRC
eFuel 110V Input 15-24V 60A 1200 Watt Output Switching AC/DC Power Adapter - 110V Edition
Customers rating.
Add To Wish List
Added:2013/08/05
Updated:2013/08/05
Follow Us on:


  Tags: eFuel  110V  Input  15-24V  60A  1200  Watt  Output  Switching  AC  DC  Power  Adapter  110V  Edition

Features:

General Description

The eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-120V AC  to 15-24V DC power and can supply up to 60 amperes of continuous power. The maximum output current is regulated by the output power of this power supply and does not exceed 60 Ampere. Maximum Current = 1200W divide by output voltage. ( eg. DC20V output, maximum current = 1200W / 20V = 60A; DC24V output, maximum current = 1200W / 24V = 50A.)

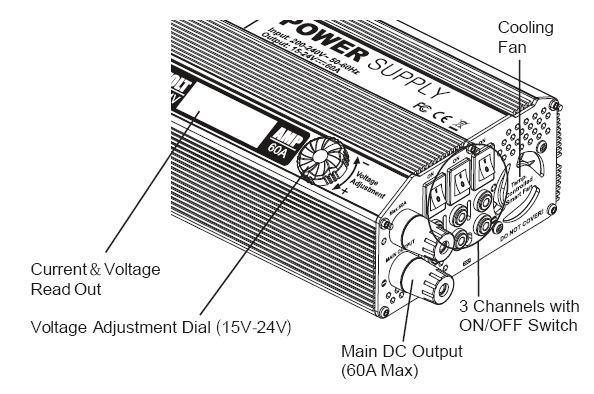

Features

* One main DC power outputs, up to 60 amperes, three output channels with ON/OFF switch.
* Output voltage adjustable 15-24V
* Large LCD indicates voltage and current amperes output
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection





Specifications:
Type:  110V AC Input, PSU 60ADE
Input AC Voltage: 100V - 120V AC
Input AC Frequency: 50Hz/60Hz
Output Voltage: 15-24V
Output Current: 60A±3A
Current Overload Protection: ≤63A
Input Fuse: 110V AC 25A Fuse

Cooling Method: Cooling Fan
Operating Temperature: 0-40℃
Operating Humidity: 0-90%
Dimensions (L*W*H): 305x140x78mm
Net weight: 2.52kg
Output port number: 4-way output with separate switches


* IF YOU ARE LOOKING FOR 220V VERSION, PLEASE REFER TO SKU SKY1200.



Includes/Requires:
Includes:
1 x AD/DC power adaptor
