   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Sunrise BLHELI Multi Series 40A 2-6S Speed Controller for Multicopter BLHELI-Multi-40A-OPTO (Tube installation)
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  BLHL40
Browse SUNRISE
Sunrise BLHELI Multi Series 40A 2-6S Speed Controller for Multicopter BLHELI-Multi-40A-OPTO (Tube installation)
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2014/07/23
Updated:2014/07/23
Follow Us on:

5B3160762746

PRICE(USD):
    $15.47   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Sunrise model  BLHELI

Features:

Special Features:

Response faster, better linearity.
All N-channel MOSFET design
Support PWM, PPM signals input.
Support online flashing, using AVR chip, customers can flash Simonk or other firmwares.
Can be installed inside the arm tube of multicopters, PCB has been specially processed with low heat  generation.

Specifications:

Sunrise BLHELI Multi Series 40A 2-6S  Speed Controller for Multicopter BLHELI-Multi-40A-OPTO (Tube installation)

Model: BLHELI-MULTI-40A-OPTO
Constant Current: 40A
Max Current: 45A for 10 seconds
Input Voltage:  2-6S Lipo
BEC Output: NO
Response:20-500Hz
PCB Size: 17mmX 46mm (excluding capacitor)
Weight: 20 g (including wires)


Includes/Requires:
Includes:
1 x ESC
Customer Reviews:
Average Customer Review: 4 stars   5 customer review(s).   [Write a review/question]

r****ielk
Grade:

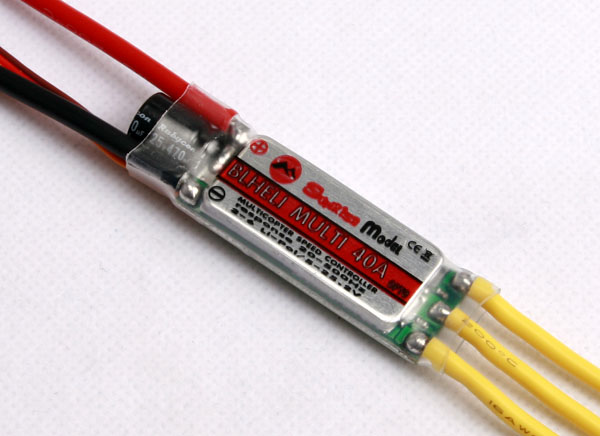

The reputation of the Sunrise ESC's are not good at all, as another customer said do not use this for a big ring, if you want to try, use in something small... I had a very bad experience with the sunrise 20A tube installation version... and looking at this one, they say 2-6S setup but look at the picture and you will see that the capacitor that they use is rate to 25V, fully charge 6S battery is 25.2V and is obvious that it won't last long...
March 10 2015     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


f****kmokaya
Grade:
I do not recommend these escs for a big rig like dslr or sony Nex size carrying hex. I had one go out on my T810 and it was no fun. Stay away from these!
February 12 2015     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


G****-Gimbal
Grade:
ESC do not work. 8 ESC ordered two have a short circuit. An ESC burning and smoking .
January 08 2015     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


akwa38
Question :
Have some interesting problem about those ESC.
Original BLHeli firmware (MultiStar 30A) is not compatible to ESC, but work fine.
If flashing BLHeli SunRise Slim 30A, then there are problems with positiv polarity and power at 100% throttle.
Here video on both firmwares: http://youtu.be/-QQKposr5KA
November 16 2014     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]


A****mas
Grade:
kda_nfet FW, see details here: http://www.rcgroups.com/forums/showpost.php?p=29181434
August 31 2014     Was this review helpful to you?   Yes [ 2 ]   No [ 1 ]    [Reply this review]
