   Electric BEC / UBEC Mini size 4.5-28V Input, 0.8-20V Output Step-down Voltage Regulator
SKU:  MINIDC
Browse HiModel

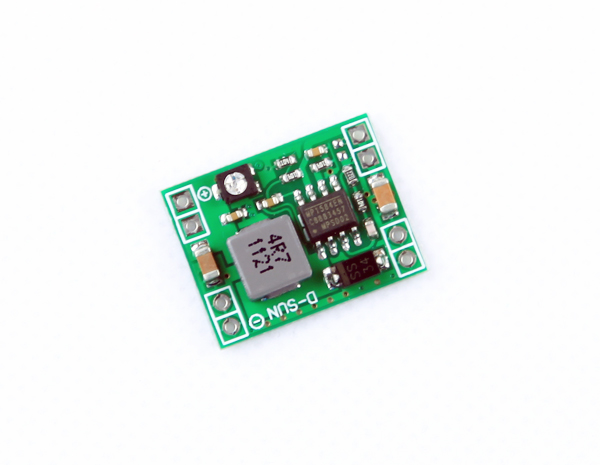

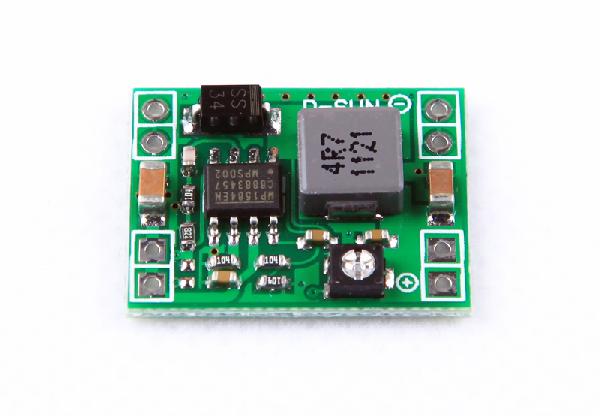

Mini size 4.5-28V Input, 0.8-20V Output Step-down Voltage Regulator
Customers rating.
Add To Wish List
Added:2013/06/28
Updated:2013/06/28
Follow Us on:


  Tags: voltage regulator  step-down regulator

Features:

Special features:

- Using imported high efficiency conversion chips.
- Imported Panasonic potentiometer.- Super small in size, only 22mm x 17mm in dimension, and 2g in weight.

Specifications:

Mini size 4.5-28V Input, 0.8-20V Output Step-down Voltage Regulator


Input voltage:4.5V~28V
Output voltage:0.8V~20V adjustable
Output current: 3A (max)
Efficiency:Max 96%
Output ripple:< 30mV
Dimension: 22mm  x 17mm  x  4mm
Weight: 2g


*This device is specially introduced to those experienced DIYers, basic electronic knowledge and DIY/welding skills are required, we are not responsible for damages due to lack of welding skills or wrong wirings etc.

*Check the output voltage and adjust the virable resistor to adjust the voltage if needed before connect to your device.





Includes/Requires:
Includes:
1 x voltage regulator

* Wires are not provided, customers need to weld the input and output wires yourselves, so basic welding skills are required, also wrong polarity will cause severe damage to the unit.
