Input 6-12V/ Output 1.4V On-board Glow Plug Voltage Regulator

■ 6V ~12V auto-detect
■ Touch button, 15 seconds auto-shut off.
■ Short circuit and over heat protection.
■ Automatically adjust the output currency based on the load.
■ Switch mode energy conversion, efficiency is over 90%.
■ Lightweight, and can be installed directly to the aircrafts.
■ LED indication one-touch button.

Power input: 6V to 12V/ 2-3S Lipo
Output: 1.4V
Max output currency: 6A
Weight: 19.3g / 0.68oz (including wires, connectors)

Typical application: Any model using glow plug engine.

Average Customer Review: 3 stars

2 customer review(s). [Write a review/question]

b****zca

Grade:

ikitane almıştım.her ikisi birden daha ilk elektrik verişimde yandı.
habi birincisefer girişleri hatalı bağladım,ya ikincisinde çok dikkatli idim. elektrik vermeden 3 kez kontrol ettim.(ilk seferden dilim yandığından)
tavsiye etmiyorum.
October 15 2010 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

hapzap1****hoo.com
STD member

Grade:

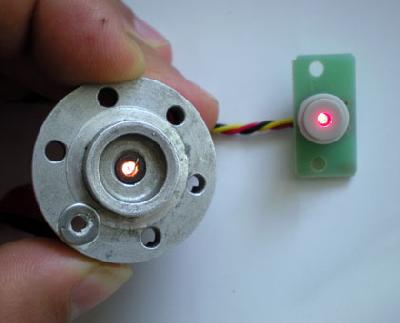

I bought 2 of these to try because I do not need or want a radio switched unit. There is no instructions, but it is obvious how to connect, and is very simple, the wires for the push button were 8" long and enough to mount back by header tank on my .50 size heli. Installed unit and tested and works exactly as described, 1.4 volts output, hot glow, very impressed. The push button is a bit over sized but I bet I can use any button to make it work.

The component part of the unit is about 7mm thick, about 17mm wide and about 30mm long. Approx, I did not measure it, the plastic extends past circuit board and protects wires.

I will buy again, great product for any glow powered vehicle, very light weight.

July 30 2010 Was this review helpful to you?

Yes [ 4 ]

No [ 0 ] [Reply this review]
