   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING 40A / 60A 2-6S Electric Brushless Speed Controller (ESC) Type Platinum-40A
SKU:  PLT40A
Browse HOBBYWING

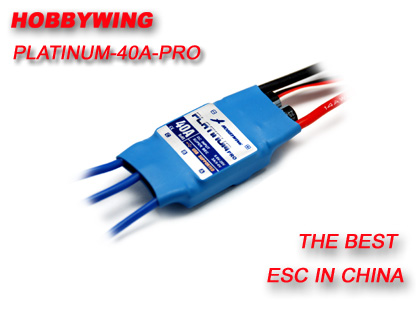

HOBBYWING 40A / 60A 2-6S Electric Brushless Speed Controller (ESC) Type Platinum-40A
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2008/12/26
Updated:2009/04/22
Follow Us on:

1P6L55560386

PRICE(USD):
    $26.12   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Hobbywing  Electric speed controller  ESC  Platinum Serires

Features:
► High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
► Maximum motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
► 3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
► Throttle range can be configured to be compatible with all transmitters currently available on market.
► Smooth, linear, quick and precise throttle response.
► Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
► Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
► The output of the built-in BEC is switchable by user programming (5.25V or 6.0V).
► With governor mode for helicopter.
► USB supported. The firmware of the ESC can be updated by the USB adapter.
► Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.
Specifications:
Platinum Series
Normal Voltage ESC(Supports 2 to 6 Cells Lipo)
Class Model Cont.
Current
Burst
Current
BEC
Mode
BEC
Output
User
Programmable
Battery Cells Weight Size
Lipo NiMH L*W*H
40A Platinum-40A 40A 60A Switch 5.25V or 6V, 3A Yes 2-6 5-18 38g 59*27*12
60A Platinum-60A 60A 90A Switch 5.25V or 6V, 3A Yes 2-6 5-18 68g 70*34*16
80A Platinum-80A 80A 120A Swicth 5.25V or 6V, 3A Yes 2-6 5-18 77g 70*34*16
100A Platinum-100A 100A 150A Switch 5.25V or 6V, 3A Yes 2-6 5-18 82g 70*34*16
150A Platinum-150A-OPTO 150A 220A None None Yes 2-6 5-18 125g 88*55*15
High Voltage ESC(Supports 5 to 12 Cells Lipo)
50A Platinum-50A-HV 50A 75A None None Yes 5-12 15-36 68g 70*34*16
70A Platinum-70A-HV 70A 105A None None Yes 5-12 15-36 82g 70*34*16
100A Platinum-100A-HV 100A 150A None None Yes 5-12 15-36 123g 88*55*15
120A Platinum-120A-HV 120A 180A None None Yes 5-12 15-36 125g 88*55*15
Includes/Requires:
Includes:
1 x ESC
1 x English Manual
Customer Reviews:
Average Customer Review: 5 stars   5 customer review(s).   [Write a review/question]

felipecalixto
Question :
Could I to use this ESC for Multirotor aplications?
November 27 2014     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]


x****py
Question :
Is the delivery product the platinum 40A blue ?
Or platinum 40A black ?
January 30 2013     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
Discussion of this question:

I think the 30A units are black and the 40A units are blue.
-- Jul 29 2014 by robzr


w****key29
Grade:
Definately the bost ESC in china.
Governor mode was great, little to no loss of rpm, provided with good battery.
Iam looking to get 3 more but out of stock.

the one that i got is exactly like in picture, and its switch BEC. you choose between 5.25 or 6v.
February 25 2011     Was this review helpful to you?   Yes [ 2 ]   No [ 0 ]    [Reply this review]


d****e99
Grade:
But this model is with the new switch BEC or linear??
December 11 2009     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


x****el00
Grade:
Absolutely BEST ECS 40A for Profesional heli Trex 450 on the market in these days! Flying 3D without any bugs or lost power!!
Thanks HiModel!!
May 31 2009     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]
