   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner 16g 2200KV Outrunner Brushless Motor Type 1510
SKU:  151022
Browse HiModel

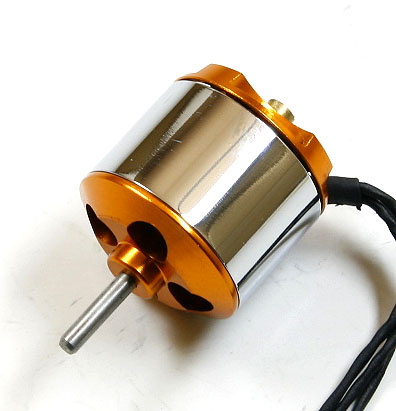

16g 2200KV Outrunner Brushless Motor Type 1510
Customers rating.
Add To Wish List
Bookmark and Share
Added:2008/03/17
Updated:2011/06/21
Follow Us on:

135046301975

PRICE(USD):
    $9.56   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: 16g  2200KV  Outrunner  Brushless  Motor  Type  1510

Specifications:
KV:2200

Dimension:Φ18mm x 17.5mm (excluding shaft)

Weight:16.1g/0.57oz (not including connectors)

Diameter of shaft:Φ2mm

Length of front shaft:8mm

Resistance: 0.52 Ω

Max efficiency currency: 2A to 6A, >70%

Max working currency: 8.5A

IO: 0.5A/10V

Prop recommendation:
3S/10V, GWS 5030HD, 16500RPM, 5.5A, thrust 272g
2S/7V, GWS 7035HD, 10150RPM, 5.6A, thrust 215g
Includes/Requires:
Includes:
1 x brushless motor
Customer Reviews:
Average Customer Review: 5 stars   4 customer review(s).   [Write a review/question]

b****c
Grade:
Supplied screws not long enough - can you specify mount screw thread?

Cheers
March 05 2013     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
Discussion of this review:

It is M2.5 , quality motor is not OK.
-- Mar 18 2013 by t****n


a****shlamp
Grade:
This is great little motor!!

i am using it on 15" Eurofighter, with 3s 460 mAh lipo and 5x4 GWS prop!!!! Great power, it zooms around like rocket!!!!!

it screams in the sky!!!!
even good power with 2s Lipo!!!

this motor comes with prop adapter and mounting accessories!!!
January 10 2011     Was this review helpful to you?   Yes [ 4 ]   No [ 0 ]    [Reply this review]


d****op
Grade:

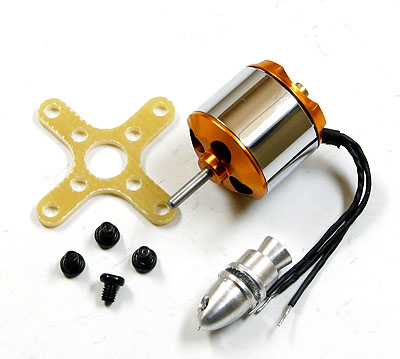

There is a mistake in Includes/Requires section in description. This motor includes shaft adapter and motor mount with 4 screws. Great motor!
June 04 2010     Was this review helpful to you?   Yes [ 3 ]   No [ 0 ]    [Reply this review]


a****tros
Grade:
using this motor over 1 year almost every saturday, broke over 100 prop gws7035 on 300 mah 3S lipo(himodel) , with 12Afly esc only little warm after 2 batt empty aprox 15 min full throtle...
very good for little plain, wingspan 20"...180g
January 14 2010     Was this review helpful to you?   Yes [ 5 ]   No [ 0 ]    [Reply this review]
