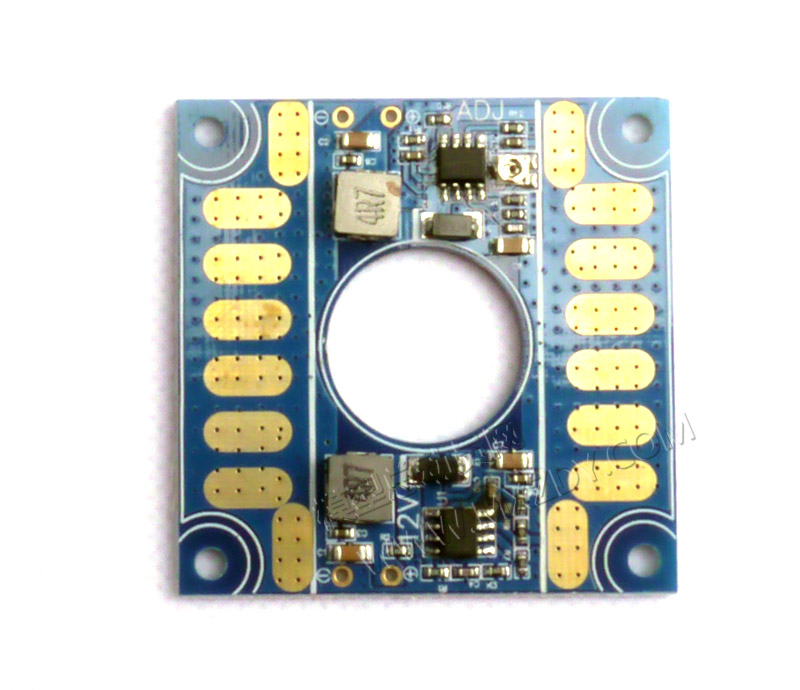

100A Multi-rotor Power Distribution Hub W/ 2 x BEC outputs

Special features:

- Integrated with 2 BEC outputs, one is fixed at 12V output for FPV devices like A/V transmitter, camera etc., another BEC is 3-20V adjustable for servos etc, both BEC can work continuously at 2A. (Higher than 2A may burn the chips)

100A Multi-rotor Power Distribution Hub W/ 2 x BEC outputs

Max currency: 100A
Adjustable BEC ouput: 3-20V 2A
Fixed BEC output: 12V/ 2A
Power input: max 6S
Dimension: 52 x 52mm

Includes:
1 x wiring hub

Average Customer Review: 5 stars

2 customer review(s). [Write a review/question]

rscofield

Question :
What are dimensions of the mount holes?
June 28 2014 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]

Discussion of this question:

Just got mine. The holes are 45mm square
-- Jul 10 2014 by r****field

R****mptioner
STD member

Grade:

Great little board, too bad about the fail not making both BECS able to be adjusted.
January 15 2014 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

Discussion of this review:

There is a small pot for adjustment...look for it, only the one side has it.
-- Aug 07 2014 by t****irm99
