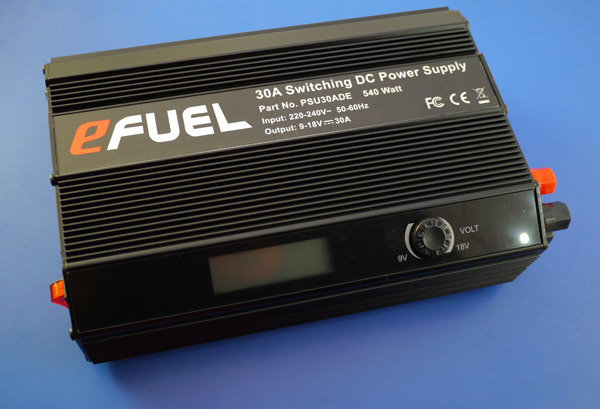

eFUEL 240V Input 9-18V 30A 540 Watt Output Switching AC/DC Power Adapter PSU30ADE

Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2011/06/11
Updated:2011/11/10

Follow Us on:





PRICE(USD):
    $81.78   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: eFUEL  240V  Input  9-18V  30A  540  Watt  Output  Switching  AC  DC  Power  Adapter  PSU30ADE

Choose other components to build your saving combo:

PictureStock NumberManufacturer & Product DescriptionCombo PriceSaveQTY RequiredStock StatusSelect
Battery Chargers & Battery Accessories
Click for the detail!SKPS00eFUEL Fuse Protected Power Strip $21.26-$1.12Discontinued
  Features:

  THIS IS THE 220V VERSION OF POWER SUPPLY.

Your eFUEL switching DC Power Supply is designed to use household AC power source to power

equipments that required DC power. The eFUEL converts standard household power 200-240V AC to 9-18V DC power and can supply up to 30 amperes of continuous power.

If you are R/C hobbyist, technician or electronic hobbyist, you will appreciate the many uses for the power supply at your workbench or in your house. For example, power your battery chargers, checking the operation of auto sound systems before you install them into your vehicle, use your CB mobile transceiver as a base station. To top it all off, you can even power your mobile phone, digital camera or even your iPhone via the USB port.

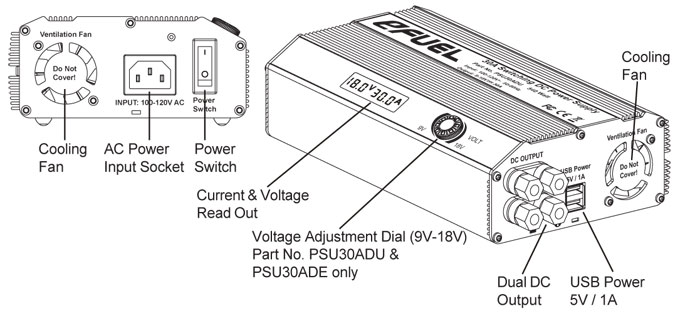

FEATURES

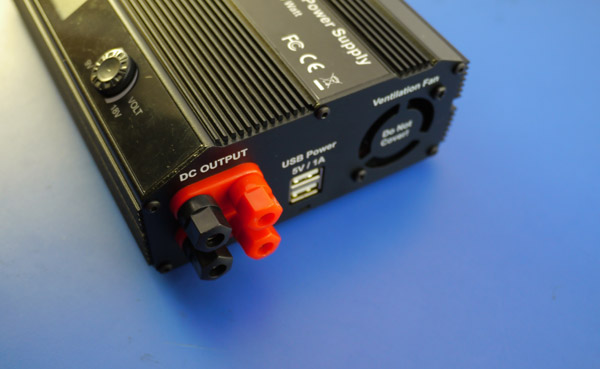

* Two DC power outputs, up to 30 amperes
* Output voltage adjustable 9-18V(Part No. PSU30ADU & PSU30ADE only)
* Large LCD indicates voltage and current amperes output
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection

  Specifications:

  * Type: PSU30ADU 220V AC Input

Input AC Voltage: 220V AC
Input AC Frequency: 50Hz/60Hz
Output Voltage: 9-18V DC±0.5V
Output Current: 30A±1A
Current Overload Protection: ≤31A 500MS
Input Fuse: 220V AC 5A Fuse
LCD Display: Voltage Precision ±0.3V
Current Precision ±0.5A
Output Voltage Ripple: <100MV
Power Efficiency: >80%
Power Factor: >0.7
Over Temperature Protection: <100℃
Cooling Method: Cooling Fan
Operating Temperature: 0-40℃
Operating Humidity: 0-90%
Dimensions (L*W*H): 208x139x59.5mm
Net weight: 1.50kg

Wall plug type: 2-round pins (EU standard)

* This version is 220V AC input, can not be used under 110V AC input.
  Includes/Requires:

  Includes:

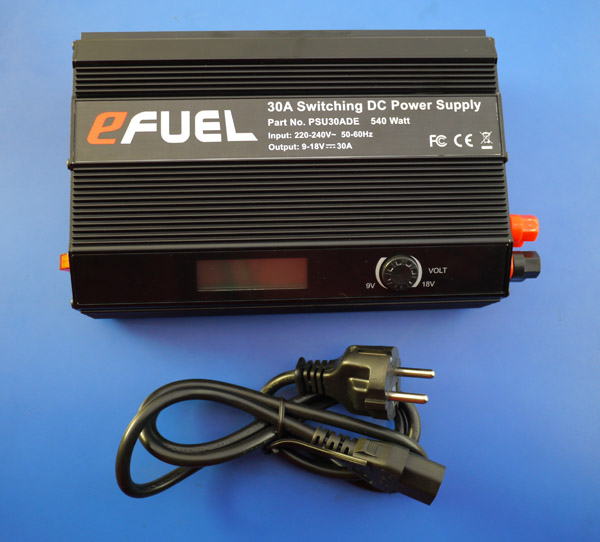

1 x AD/DC power adaptor

* Please make sure this is the correct version for your local house power supply, for 110V AC input version, please refer to Power Adapter PSU30ADU.
