  Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Inrunner LEOPARD 4042/4000KV 4-Poles Inrunner Brushless Motor Red LBP5692/2Y Welcome Guest  [Sign Up/ Log in]
SKU:  40422Y
Browse LEOPARD

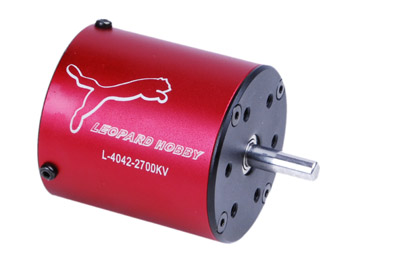

LEOPARD 4042/4000KV 4-Poles Inrunner Brushless Motor Red LBP5692/2Y
Customers rating.
Add To Wish List
Bookmark and Share
Added:2010/08/05
Updated:2010/08/05

Follow Us on:





PRICE(USD):
    $37.04   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Leopard  4-poles burshless motor  red leopard

  Features:
  ★new design,four-pole rotor,the overall efficiency of more than 90%;

★extremely low temperature without additional heat sink can meet the vast majority of applications;

★compared to competitive products,lighter weight,higher torque;

★use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings;

★rotor using special materials reinforced,high-speed operation under the non-burst phenomenon;

★good heat dissipation ,high overload capacity；

★Low electromagnetic interference;

★minimum required electrical maintenance;

★long life
  Specifications:
  Model: LBP5692/2Y

LBP-4042 Series

Model

Max Amps

Lipo Cell

Max Power

KV(RPM/Volt)

Resistance

No-load Current（7.4V）

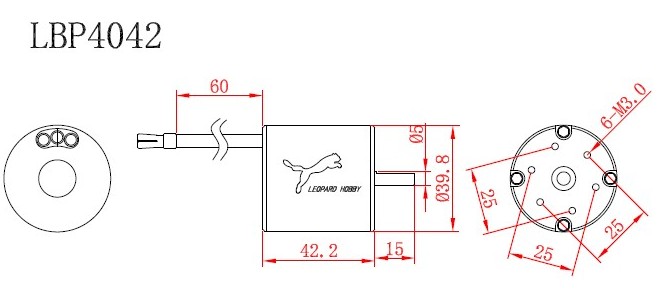

Diameter×Length (mm)

Mounting hole depth

Length of extend Shaft

Shaft Diameter (mm)

Weight

LBP4042/2Y

98A

2-3s

1200W

4000

0.0050

3.4A

Φ39.8×42.2

4mm

15mm

Φ5.0

220g

LBP4042/3Y

66A

3-5s

1200W

2700

0.0092

1.5A

Φ39.8×42.2

4mm

15mm

Φ5.0

220g

LBP4042/4Y

58A

3-6s

1200W

2000

0.0160

0.9A

Φ39.8×42.2

4mm

15mm

Φ5.0

220g

LBP4042/2Y

98A

2-3s

1200W

4000

0.0050

3.4A

Φ39.8×42.2

4mm

15mm

Φ5.0

220g





  Includes/Requires:
  Includes:
1 x motor
3 x bullet connectors
