   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner LD-Power MT3510 700KV Brushless Motor for Multicopter (3-4S)
   Multi-rotors Motors
SKU:  MT351070
Browse LD-Power

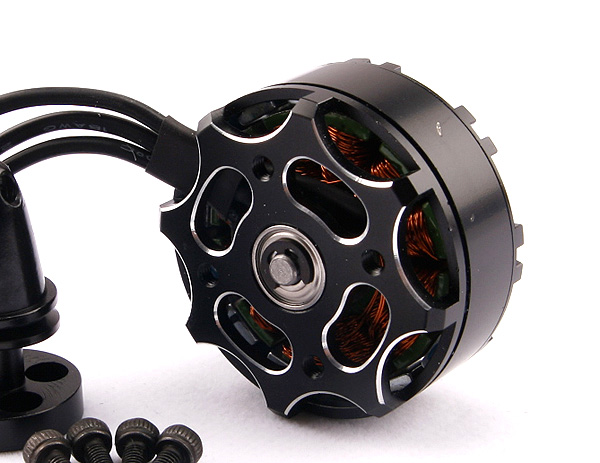

LD-Power MT3510 700KV Brushless Motor for Multicopter (3-4S)
Customers rating.
Add To Wish List
Added:2013/12/05
Updated:2013/12/05
Follow Us on:



  Tags: multi-rotor  brushless motor  ldpower

Specifications:

LD-Power MT3510 700KV Brushless Motor for Multicopter (3-4S)

ModelMT3510
Motor  Diameter42mm
Motor Length29mm
Stator Diameter35mm
Stator Length10mm
Shaft4mm
Weight102
Batteries3-6Cells
No Load Current0.8A

Prop Test Data                            MT3510-700KV
Voltage(V)Propeller
(inch)		ThrottleCurrent (A)Watts(W)Thrust(G)RPM
(RPM/Min)		Efficiency (G/W)
11.1APC 12*3.850%2.628.86378356713.10
65%4.448.84516413310.57
75%888.882347769.27
85%11.3125.43108851898.67
100%15.5172.05124557897.24
APC13*450%2.527.75358384012.90
65%444.4509458911.46
75%666.6725544410.89
85%8.594.3585057899.01
100%10.6117.66102062108.67
14.8APC11*4.750%459.256645369.56
65%6.596.280053778.32
75%11162.8110963426.81
85%14.3211.64129067896.10
100%19281.2155674445.53
APC 12*3.850%459.2661455411.17
65%7.6112.4892150788.19
75%12.5185120957896.54
85%17.8263.44155663005.91
100%23340.4177867785.22

Includes/Requires:
Includes:

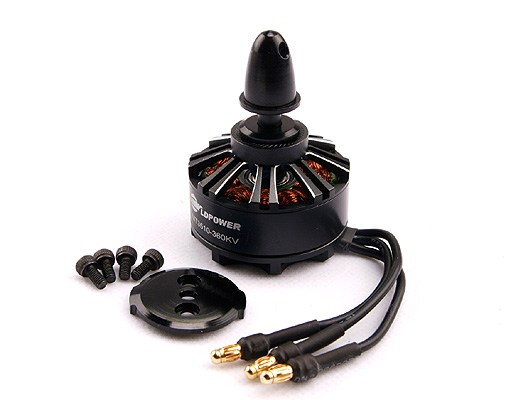

1 x motor
1 x prop adaptor
1 x prop holding down plate
4 x screws
