LD-Power MT1806 2280KV 2-3S Brushless Motor CW/CCW Set for Multicopter
Customers rating.
Add To Wish List
Added:2015/03/24
Updated:2015/03/24
Follow Us on:



  Tags: multi-rotor  brushless motor  ldpower

Specifications:

LD-Power MT1806 2280KV 2-3S Brushless Motor CW/CCW Set for Multicopter

Model MT1806
Motor  Diameter 22.8mm
Motor Length 14.8mm
Stator Diameter 18mm
Stator Length 6mm
Shaft Diameter 3mm
Weight 17.5g
Batteries 2-3 Cells
No Load Current 0.3A
Mounting Hole Spacing 12mm/ 12mm



Testing data               1806-2280KV
Voltage(V) Propeller
(Inch)		 Throttle Current
(A)		 Power (W) Pull
(G)		 RPM G/W Ratio
7.4 5030 100% 5 37 236 17390 6.40
11.1 100% 8 88.8 380 18510 4.3
Includes/Requires:
Includes:

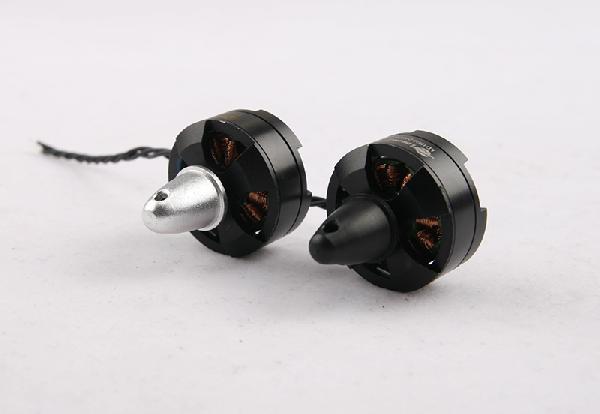

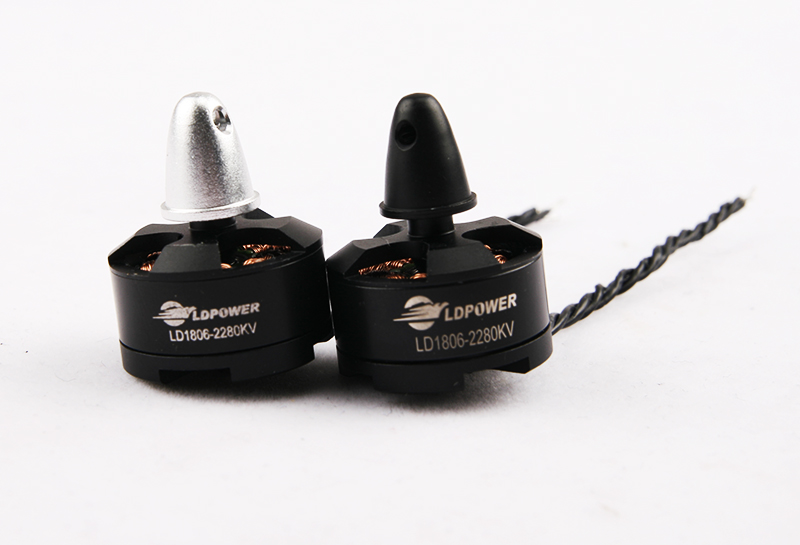

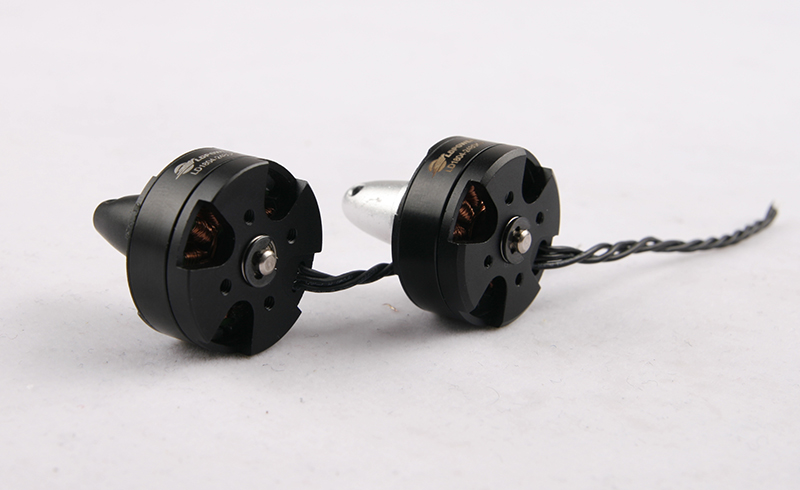

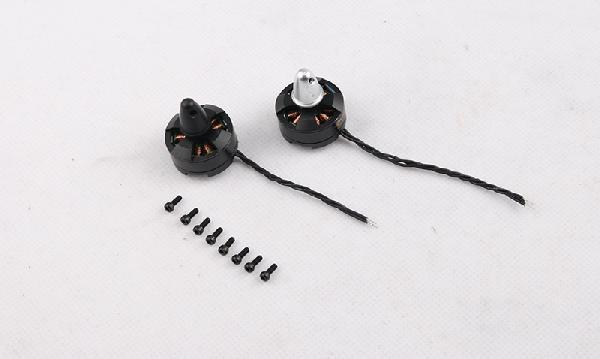

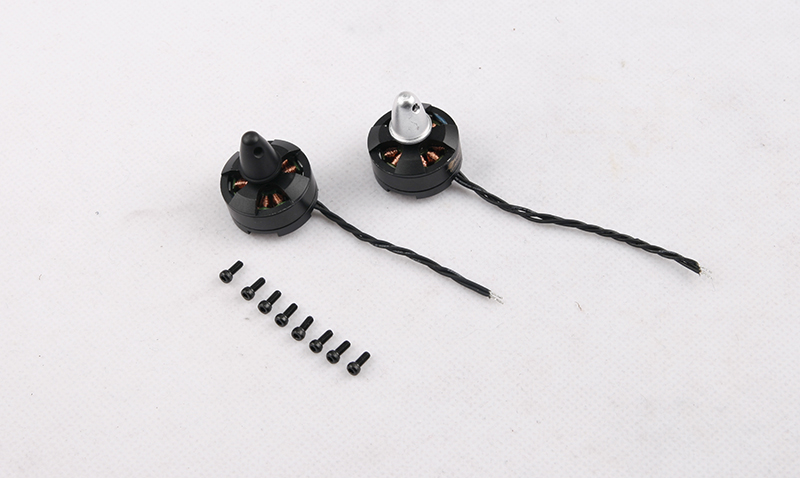

1 x CW  motor with prop adaptor
1 x CCW motor with prop adaptor
8 x screws
