   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING 60A / 90A 2-6S Electric Brushless Speed Controller (ESC) Type Platinum-60A Welcome Guest  [Sign Up/ Log in]
SKU:  PLT60A
Browse HOBBYWING

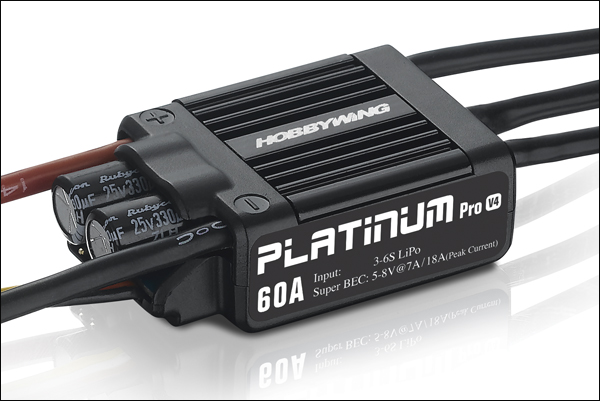

HOBBYWING 60A / 90A 2-6S Electric Brushless Speed Controller (ESC) Type Platinum-60A
Customers rating.
Add To Wish List
Added:2008/12/26
Updated:2014/04/28

Follow Us on:

P2L353653474

PRICE(USD):
    $48.93   Out of Stock
Member PRICE:
    Sign in or Sign up for member price
 Notify Me When Available.     Freight Calculator
  Tags: Hobbywing  Electric speed controller  ESC  Platinum Serires

  Features:
► High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
► Maximum motor speed: 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
► 3 start modes: Normal / Soft / Very-Soft, compatible with fixed-wing aircraft and helicopter.
► Throttle range can be configured to be compatible with all transmitters currently available on market.
► Smooth, linear, quick and precise throttle response.
► Separate voltage regulator IC for microprocessor to get a better anti-jamming capability.
► Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
► The output of the built-in BEC is switchable by user programming (5.25V or 6.0V).
► With governor mode for helicopter.
► USB supported. The firmware of the ESC can be updated by the USB adapter.
► Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.
  Specifications:
Platinum Series
Normal Voltage ESC（Supports 2 to 6 Cells Lipo)
Class Model Cont.
Current		 Burst
Current		 BEC
Mode		 BEC
Output		 User
Programmable		 Battery Cells Weight Size
Lipo NiMH L*W*H
40A Platinum-40A 40A 60A Switch 5.25V or 6V, 3A Yes 2-6 5-18 38g 59*27*12
60A Platinum-60A 60A 90A Switch 5.25V or 6V, 3A Yes 2-6 5-18 68g 70*34*16
80A Platinum-80A 80A 120A Swicth 5.25V or 6V, 3A Yes 2-6 5-18 77g 70*34*16
100A Platinum-100A 100A 150A Switch 5.25V or 6V, 3A Yes 2-6 5-18 82g 70*34*16
150A Platinum-150A-OPTO 150A 220A None None Yes 2-6 5-18 125g 88*55*15
High Voltage ESC（Supports 5 to 12 Cells Lipo)
50A Platinum-50A-HV 50A 75A None None Yes 5-12 15-36 68g 70*34*16
70A Platinum-70A-HV 70A 105A None None Yes 5-12 15-36 82g 70*34*16
100A Platinum-100A-HV 100A 150A None None Yes 5-12 15-36 123g 88*55*15
120A Platinum-120A-HV 120A 180A None None Yes 5-12 15-36 125g 88*55*15
  Includes/Requires:
Includes:
1 x ESC
1 x English Manual
