SKU:  HMBM01
SPEKTRUM DSM2 DSMX Satillite Bind Module BM01
Customers rating.
Add To Wish List
Added:2017/12/16
Updated:2017/12/16
Follow Us on:


  Tags: SPEKTRUM DSM2 DSMX Satillite Bind Module BM01

Specifications:

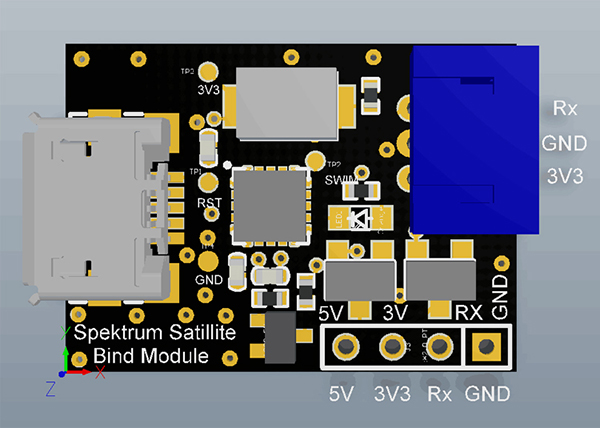

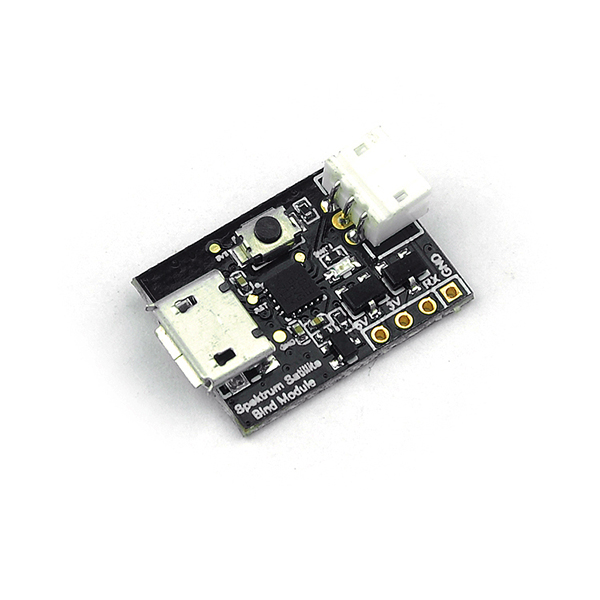

SPEKTRUM DSM2 DSMX Satillite Bind Module BM01


Working voltage: 5V USB
Output voltage: 3.3V/ 5V optional
Dimension: 21 x 14 x 6mm
Weight: 1.2g


How to bind?
- Hook up the satillite receiver which to be binded, directly connect it to 5V power source, the BM01 bind module will enters into DSMX binding mode.
- Hook up the satillite receiver which to be binded, press and hold down the button on the BM01 bind module then power it on, the BM01 module will enter into DSM2 binding mode.





Includes/Requires:
Includes:
1 x bind module
