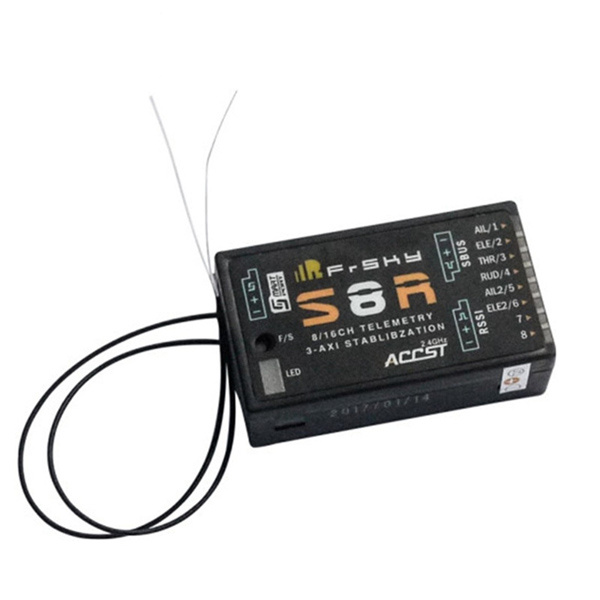

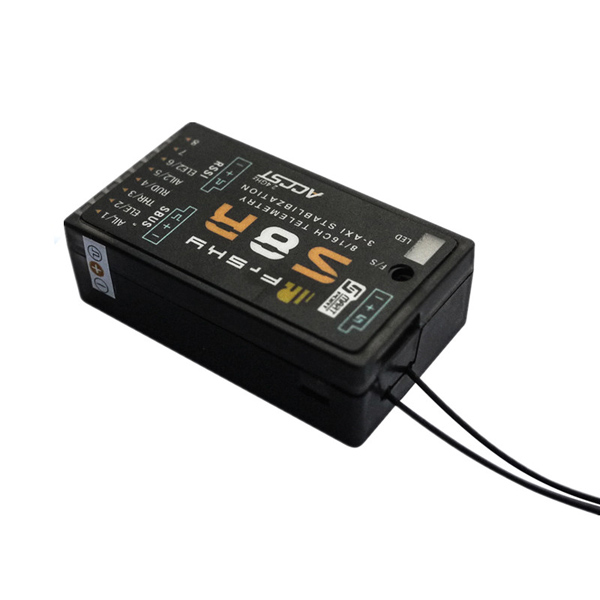

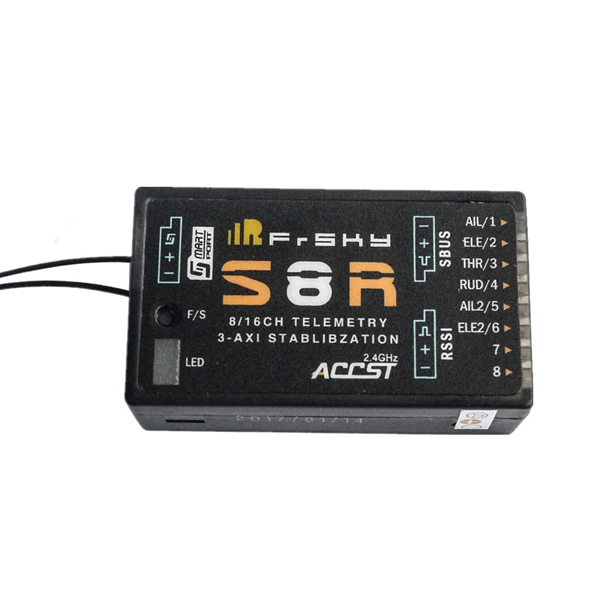

FrSky S8R 8/16 CH Receiver with built-in 3-axis gyro and 3-axis acceleration
Customers rating.
Add To Wish List
Added:2018/05/08
Updated:2018/05/08
Follow Us on:


  Tags: FrSky S8R 8/16 CH Receiver with built-in 3-axis gyro and 3-axis acceleration

Features:
● Built-in RSSI PWM output(0-3.3V)


● Built-in battery voltage detection


● Built-in 3-axis gyroscope and 3-axis accelerometer sensor module


● Smart Port enabled


● SBUS Port enabled
Specifications:

FrSky S8R 8/16 CH Receiver with built-in 3-axis gyro and 3-axis acceleration

CompatibilityFrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16 mode

S8R-EU only works with FrSky Taranis X9D Plus/X9E/X7/Horus X12S/XJT in D16-EU mode

Firmware UpgradableFirmware Upgradeable
Dimension46.47×26.78×14.12 mm (L×W×H)
Weight14g
Operating RangeFull range
Operating Voltage Range4.0-10V
Operating Current120mA@5V
Number of Channels8/16CH (1-8ch from conventional channel outputs, 1-16ch from SBUS output)
RSSI(Y/N)With RSSI PWM output on board: PWM voltage output(0-3.3V), 100Hz, 1500±500us
Measurement RangeGyroscope Measurement Range: ±2000dps

Accelerometer Measurement Range: ±4g

Includes/Requires:
Includes:
1 x FrSky S8R receiver
