   Radios Receivers & Accessories 5 - 6 Ch. Receivers FrSky S6R 6CH Receiver with built-in 3-axis gyro and 3-axis acceleration
   FPV/ Aerial Photography Flight Controller/OSD/ GPS/ Stablizer
SKU:  FRSKY-S6R
Browse FrSky

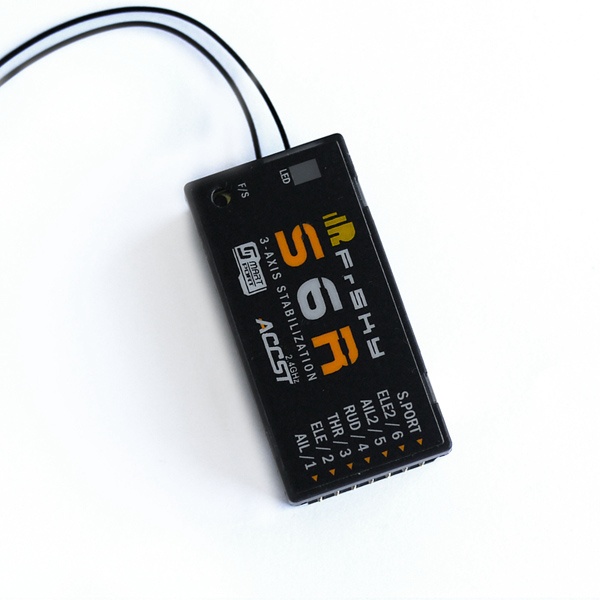

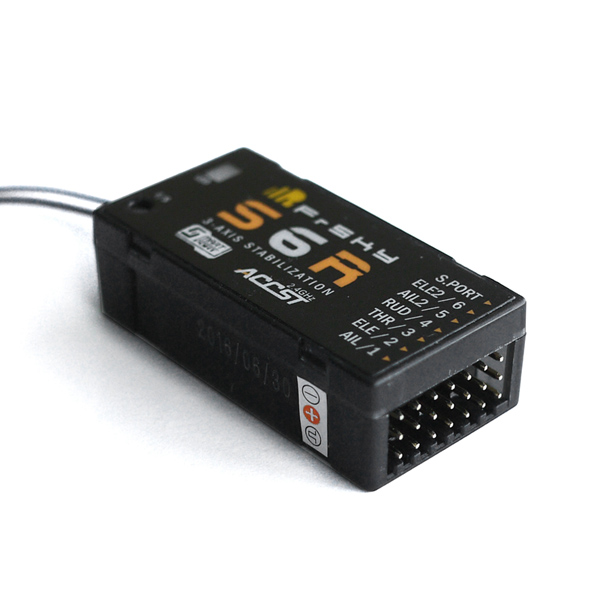

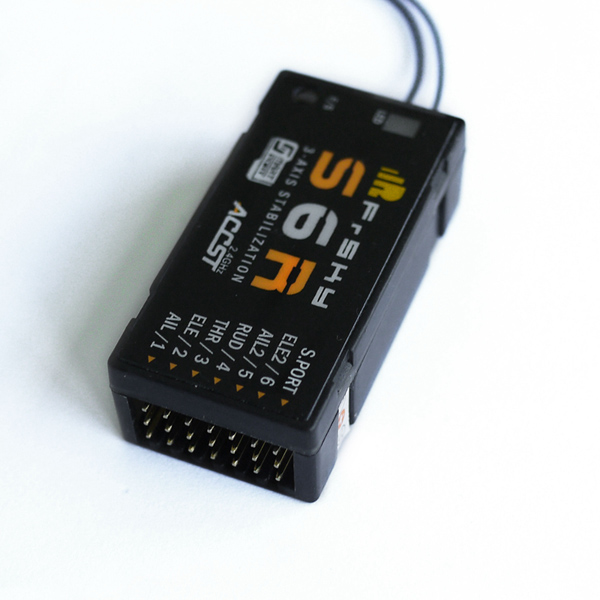

FrSky S6R 6CH Receiver with built-in 3-axis gyro and 3-axis acceleration
Customers rating.
Add To Wish List
Added:2018/05/08
Updated:2018/05/08
Follow Us on:


  Tags: FrSky S6R 6CH Receiver with built-in 3-axis gyro and 3-axis acceleration

Features:
Built-in a three-axis gyro and three-axis accelerometer sensor module
Built-in RSSI PWM output (0~3.3V) on board
Built-in battery voltage sensor
Smart Port enabled
Specifications:

FrSky S6R 6CH Receiver with built-in 3-axis gyro and 3-axis acceleration


CompatibilityFrSky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode

S6R-EU only works with Horus X12S and Taranis X9D Plus/X9E-EU/XJT-EU in D16-EU mode

ModelX6R(6CH receiver with built-in 3-axis gyro and 3-axis acceleration)
Dimension47.42*23.84*14.7mm(L*W*H)
Weight12.1g
Operating Rangefull range
Operating Voltage Range4.0~10V
Operating Current100mA@5V
Number of Channels6CH(1~6CH from conventional channel outputs)
Measurement Range±4g



Includes/Requires:
Includes:

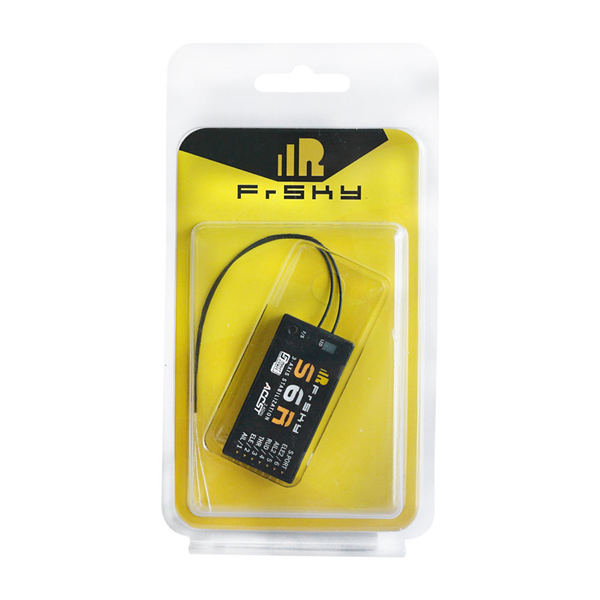

1 x FrSky S6R receiver
