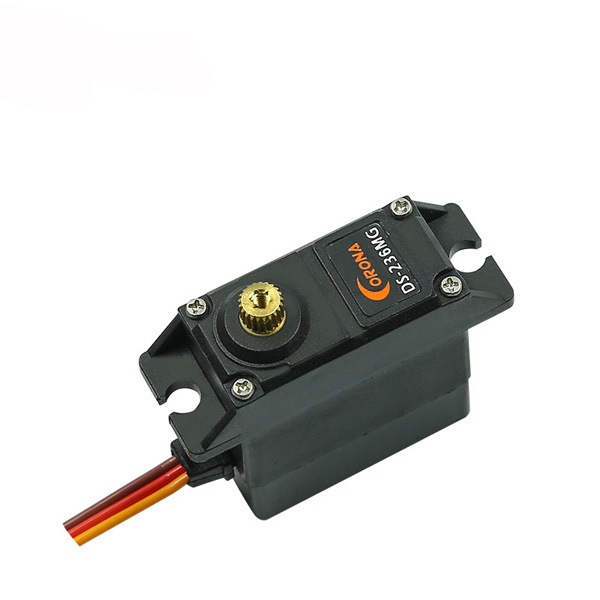

Corona DS-236MG 27g 7Kg Metal Gear Digital Servo
Customers rating.
Add To Wish List
Added:2021/05/07
Updated:2021/05/07
Follow Us on:



  Tags: Corona  DS-236MG  27g  7Kg  Metal  Gear  Digital  Servo

Features:
Features:
• Higher resolution
• The tightest dead band
• Accurate positioning
• Faster control response
• Quicker acceleration
• Constant torque throughout the servos travel
• Increased holding power when stationary
Specifications:

Corona DS-236MG 27g 7Kg Metal Gear Digital Servo


Model: DS-236MG
Operating Voltage: 4.8V / 6.0V
Operating Current: 300mA / 400mA
Operating Speed: 0.13sec.60°/ 0.12sec.60°
Stall Torque: 6.0kg.cm /7.0kg.cm
Size: 28X14X32mm
Weight: 27g
Dead Band: ≤3uSec
Operating Travel: 40°/one side pulse traveling 400us
Gear: Metal
Motor: Coreless
Connector wire: 215mm
Operating Temperature Range: -20°C ~ +60°C
Spline count: 21
Includes/Requires:
Includes:

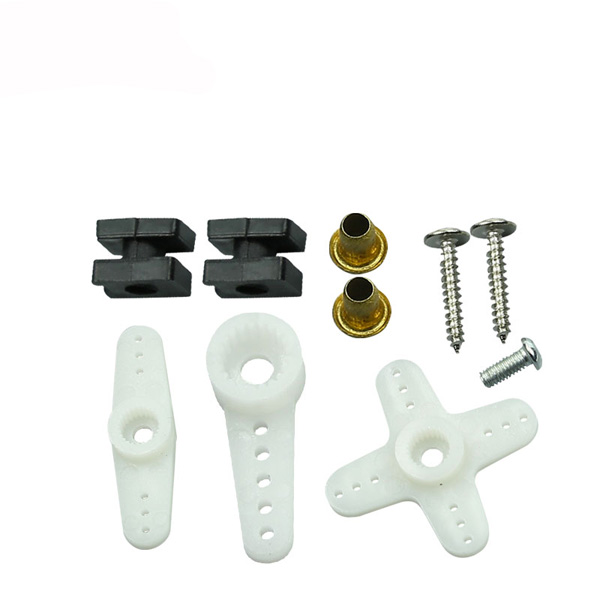

1 x servo with servo horns
