SKU:  BL1029HV
Browse CORONA
Corona BL1029HV 82g 50kg Large Torque All Metal Servo
Customers rating.
Add To Wish List
Added:2024/08/02
Updated:2024/08/02
Follow Us on:



  Tags: Corona  BL1029HV  82g  50kg  Large  Torque  All  Metal  Servo

Features:
Servo motors  can be  used in many industrial applications as follows.


1. Electric lock (anti-heft door lock servo)


2. Smart lamp Switch Servo


3. Washing machine safety mechanism servo


4. Water/gas valve control Servo


5. Luggage case lock servo


6. Camera gimbal control servo


7. UAV heavy duty servo


7. Servo Release Servo Drop


9. Safety lock servo


10. Automatic Perfume and liquids Sprayer Servo


11. Smart bike gear change servo


12. Electric car mirror servo


13. Car seat adjustment servo


14. Robot arm servo


15. Medical equipment servo


16. Curtain Servo


17. Robot servo


18. Wheel servo


19. Car window winding servo


20. A lock door in waste container


21.Vacuum cleaner


22.Toilet


23.Printer


24. EV Charger
Specifications:

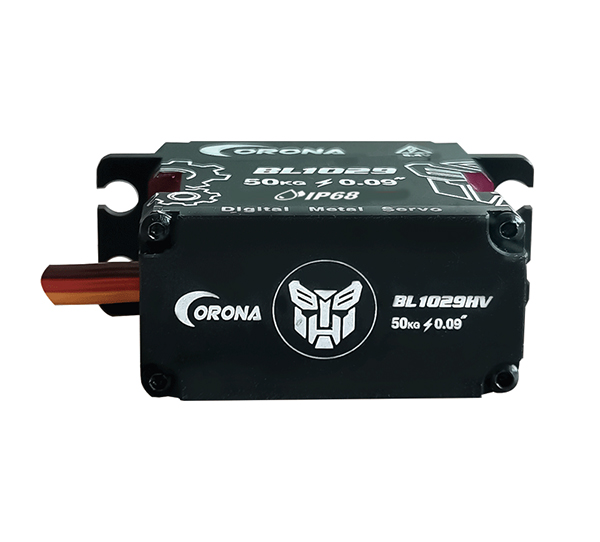

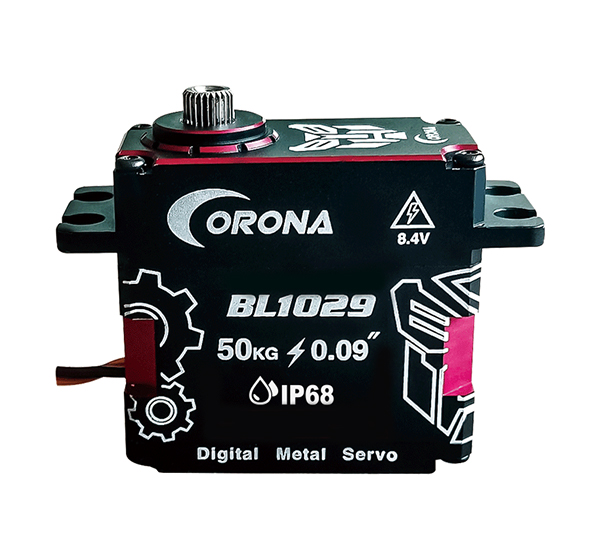

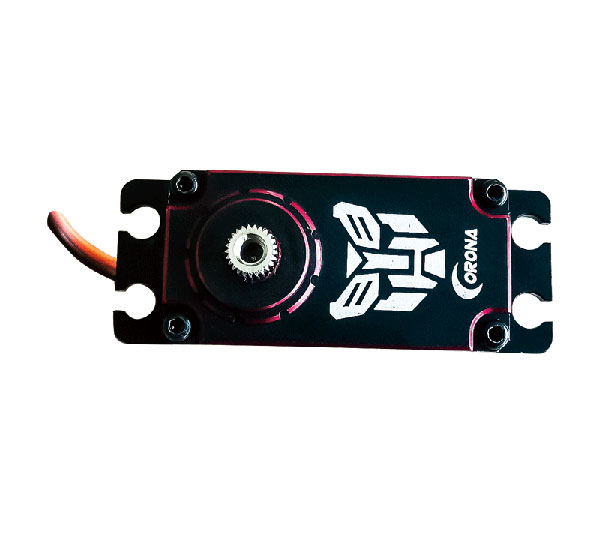

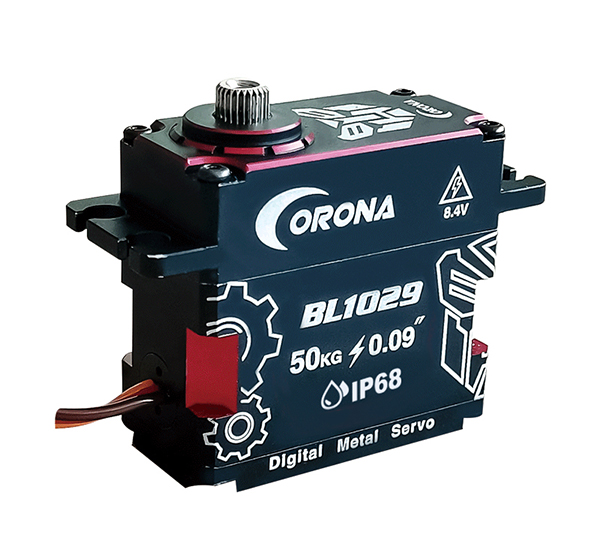

Corona BL1029HV 82g 50kg Large Torque All Metal Servo


BL1029HV is a full metal brushless waterproof servo. It can be used in rc car and industrial application.



model:BL1029HV

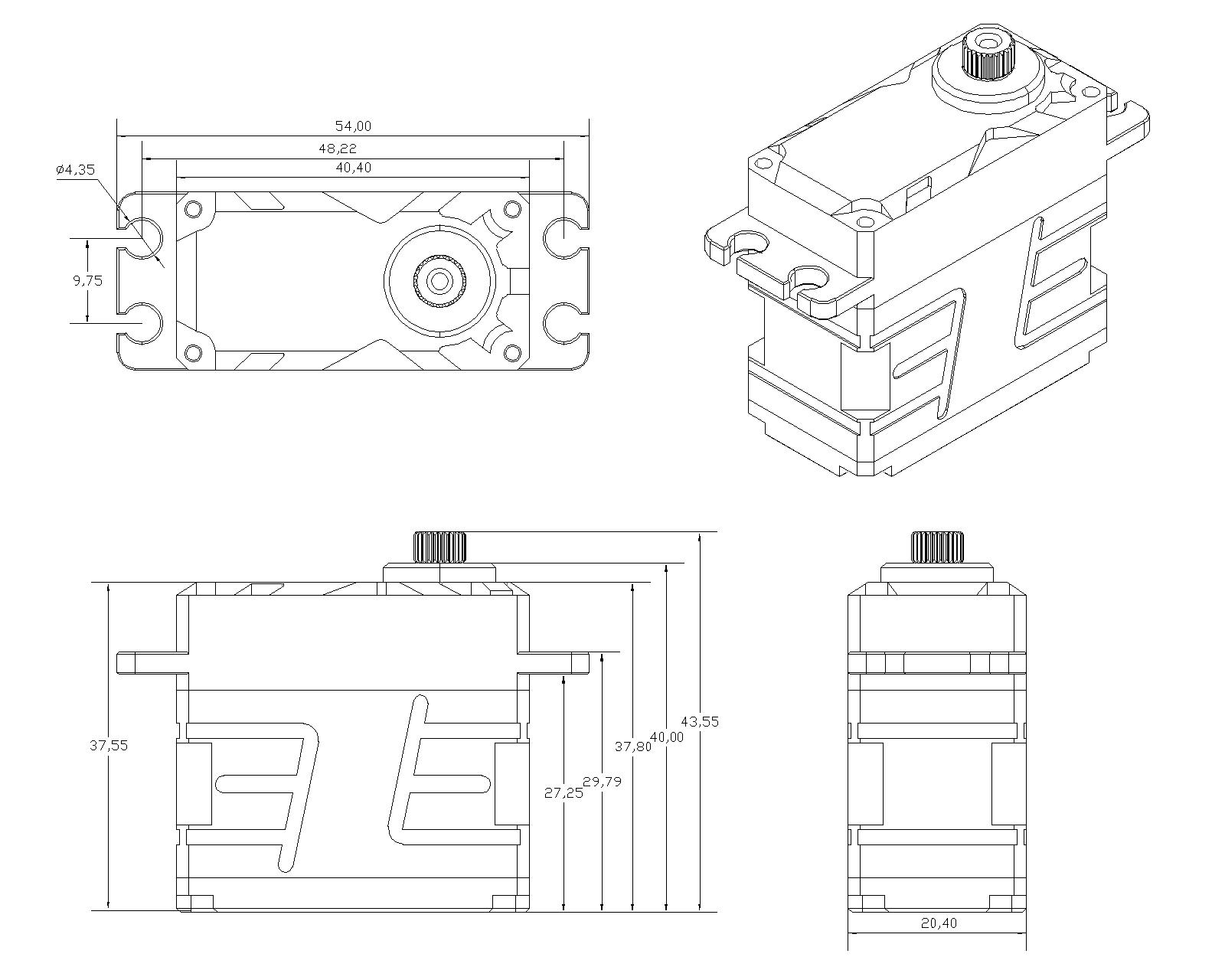

size:40X21X38mm(1.57"x0.8"x1.5")
weight:82g
Operating Voltage:5.0V /6.0V /7.47 /8.4V
stand-by current:44mA
Working rate:0.12sec. 60° /0. 11sec. 60° /0. 10sec. 60°/0. 09sec. 60°
Stall Torque:16kg. cm I 17kg. cm/21kg. cm/ 25kg. cm
Maximum stall torque:32kg. cm / 35kg. cm/ 42kg. cm/50kg. cm
Stall current2.2A/2.4A/3. 1A/3.6A
Waterproof performanceIP68
Dead Bandwidth:≤1uSec
work plan:40°/unilateral pulse stroke 400us
Potentiometer Type:Square high precision indirect drive
High-precision rolling bearings:MR106
Gear Material:Metal
Cable length:290m
Operating temperature:-20C~+60C



Includes/Requires:
Includes:

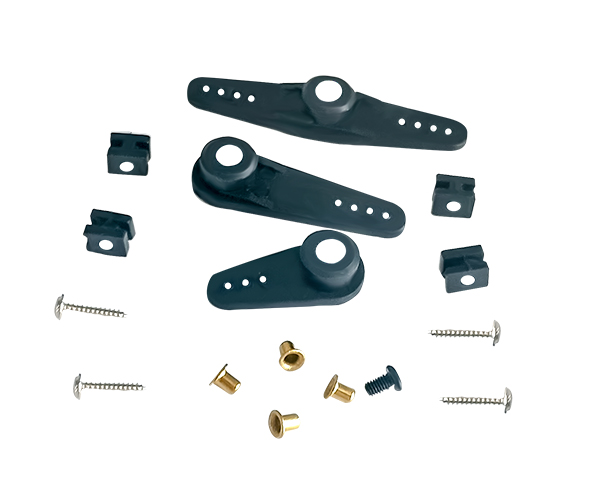

1 x servo with servo horns
