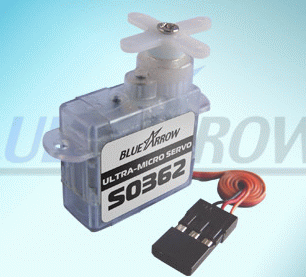

Blue Arrow 3.6g Ultra-micro Servo S0362
Customers rating.
Add To Wish List
Added:2007/01/31
Updated:2008/11/14
Follow Us on:


  Tags: Blue  Arrow  3.6g  Ultra-micro  Servo  S0362

Features:
Amplifier type: Analog Pulse Width / Audion Drive
Potentiomete Type: PT6
Potentiomete Resistance: 10K Ω
Motor Type: 5F Coreless Motor
Gear Material: POM(Polyformaldehyde)
Gear Series: 5
Gear Ratio: 1:400
Output gear diameter: Φ3.64 mm(Φ0.14 in)
Splined fixed set screw: 1.5mm*5 mm
Crust Material: Transparent PC
Crust Color: Gray
Splined Color: White
Splined Horns: 4 Class
Top Ball Bearing: NONE
Plug Specification: JR
Connector Wire Length:130mm(5.12 in)
Connector Wire SPEC: 0.08mm*20
Servo Weight: 3.2g(0.11oz)
3.9g(0.14oz)(including wire)
Size: 19.7mm*8.4mm*22.7 mm
(0.78in*0.33in*0.89 in)
Specifications:
Control System: Pulse Width Control
Speed: 0.07sec/60°@4.8V
0.09sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 4mA
Running Current: 120mA
Hold Current: 350mA
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 0.40kg•cm@4.8V
5.55oz•in @4.8V
0.50kg•cm@6.0V
6.94oz•in @6.0V
Includes/Requires:
Includes:
1 x servo
1 x horn set
