Amplifier type: Analog Pulse Width / Audion Drive
Potentiometer Type: R103N
Potentiometer Resistance: 5K Ω
Motor Type: Strong Magnetoe Motor
Gear Material: POM(Polyformaldehyde)
Gear Series: 5
Gear Ratio: 1:400
Output gear diameter: Φ3.8 mm(Φ0.15 in)
Crust Material: POM
Crust Color: Black
Splined Color: Black

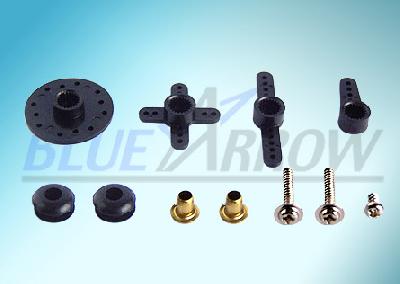

Splined Horns: 4 Class
Top Ball Bearing: MR85 Ball Bearing
Plug Specification: JR
Connector Wire Length: 230mm(9.06 in)
Connector Wire SPEC: 0.08mm*20
Servo Weight: 8.9g(0.31oz)
10.6g(0.37oz)(including wire)

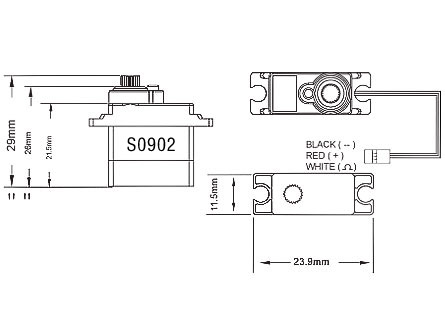

Size: 23.9mm*11.7mm*29.1 mm
(0.94in*0.46in*1.15 in)

Control System: Pulse Width Control
Speed: 0.15sec/60°@4.8V
0.12sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 5 mA
Running Current: 200mA
Hold Current: 800mA
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 1.65kg•cm @4.8V
22.91oz•in @4.8V
1.85kg•cm @6.0V
25.69oz•in @6.0V
