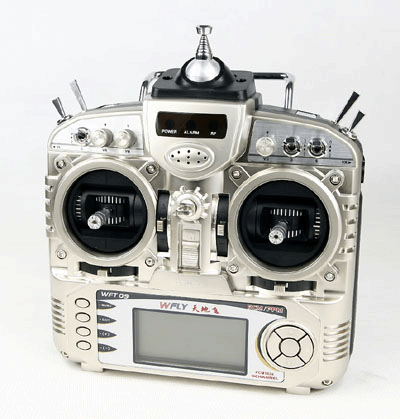

36Mhz WFT 09 9-Channel Radio w/WFR08-P Receiver
Customers rating.
Add To Wish List
Added:2008/06/20
Updated:2011/05/09
Follow Us on:


  Tags: 36Mhz  WFT  09  9-Channel  Radio  w  WFR08-P  Receiver

Features:
Computerized transmitter.
132 x 64 FSTN LCD, easy operating buttons.
Metal slab shell.Adjustable antenna basement.
Tightness and length of the control stick can be adjusted freely.
Excellent touch of the stick movement.
Full digital trim.Independent RF module for easy band exchange.
Trainer function.
3 independence timer, all can be set to count down or increment.
PCM and PPM modulation supported.
Multi mixing function.All curves have eleven fully position adjustable point.
User defined switch and knob.
Model parameter can be exchange between transmitter.
10-model memory.
FT09 transmitter is compatible with FUTABA and JR (PPM) receiver.
Dual conversion receiver(PPM) is compatible with FUTABA and JR transmitter.
Specifications:
TRANSMITTER
MODEL NO.: WFT09H
MODULATION: FM(PPM) and PCM
OUTPUT POWER: ≤700mW
POWER SUPPLY: 1.2V x 8 (9.6V)
CURRENT DRAIN: 200mA
Band: 36MHz
Stick mode: both mode 1 & mode 2 are available, mode 2 will be provide by default.


RECEIVER
Receiver type: WFR08-P

* Both mode 1 & mode 2 are available, mode 2 will be provided by default for international orders, you can specify the stick mode by leaving a message in the Remark field on the last step when place the order.

SINCE THE MANUFACTURER CHANGED THE CODING METHOD OF THEIR RADIO SYSTEM, ALL THE WFLY TRANSMITTER NOW CAN ONLY WORK WITH THEIR OWN RECEIVERS, AND ALL WFLY RECEIVERS ARE ALSO ONLY COMPATIBLE WITH THEIR OWN TRANSMITTERS.

IN OTHER WORDS, THE WFLY RADIO SYSTEM NOW ARE NOT COMPATIBLE WITH OTHER FUTABA STANDARD TRANSMITTERS AND RECEIVERS!

THIS RADIO SET NOW COME IN FOAM PACKING ONLY, WITHOUT THE OUTER COLOR CARTON BOX.


Includes/Requires:
Includes:
1 x transmitter
1 x RF module
1 x transmitter battery holder
1 x receiver battery holder
1 x neck strap
1 x trainer cable/data transfer cable
1 x simulator cable
1 x PPM receiver
1 x switch harness

* No printed instruction provided with the radio, please download electronic edition manual here.
* Charger is no longer included from factory since May 2011.
