Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Radio Sets RF Module / Receivers & Accy 2.4G 6-Channle DSM2 Microlite Park Flyer Receiver AR6110E (JR/SPEKTRUM Compatible)
   Radios Receivers & Accessories 5 - 6 Ch. Receivers
SKU:  AR6110-E

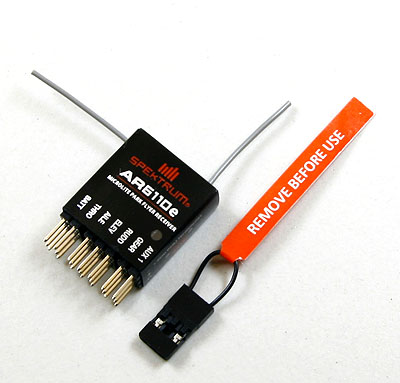

2.4G 6-Channle DSM2 Microlite Park Flyer Receiver AR6110E (JR/SPEKTRUM Compatible)
Customers rating.
Add To Wish List
Added:2010/11/22
Updated:2013/04/10
Follow Us on:


  Tags: 2.4G  6-Channle  DSM2  Park Flyer  Receiver  AR6110e

Features:
JR/SPEKTRUM Compatible DSM2 2.4G Micro Receiver.
Specifications:
* # of Channels: 6
* Modulation: DSM2
* Band: 2.4 GHz
* Dimensions (WxLxH): 21mm x 28.7mm x 10mm
* Weight: 4.0 grams
* Voltage Range: 3.5v - 9.6v
* Antenna Length: 2 @ 30mm each

How to bind?
1.with the power off, plug the bind plug into the BATT port.
2.power on the receiver. if powered by a separate battery,plug the battery into any unused port.
3.Position the transmitter's control sticks and switches in the desired fail-safe positions(normally low throttle and all other controls at netural).
4.press and hold the bind button on the back of the transmitter while turning on the transmitter. the button will flash for several seconds, then the LED on the transmitter and receiver will remain solid on, indicating a successful bind.
5.remove the bind plug to prevent the system form rebinding the next time the power is turned on.
Includes/Requires:
Includes:
1 x DSM2 receiver
1 x bind plug
