   Multi-rotors Flight Controller (FC) Teeny1S F4 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIF4SD firmware)
   FPV/ Aerial Photography Flight Controller/OSD/ GPS/ Stablizer
SKU:  1SF4FK
Teeny1S F4 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIF4SD firmware)
Customers rating.
Add To Wish List
Added:2017/07/20
Updated:2018/04/28
Follow Us on:



  Tags: Teeny1S F4 Flight Controller W/ OSD 5V Step-up Module | (betaflight  3.1.7  OMNIF4SD firmware)

Features:
Features:
-Support the newest DSHOT ESC
-Built-in OSD
-Built-in 5V 500MA BEC
Specifications:

Teeny1S F4 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIF4SD firmware)

Item name: Teeny1S_F4 flight control board
Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 2.1g
Processor: STM32F405RGT6
Without blackbox
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.5_OMNIBUSF4SD
Built-in BEC: 5V 500MA
Power supply: 1S lipo battery ( 3.3V-4.2V)
Receiver: PPM, SBUS, IBUS, DSM2, DSMX etc.
Suitable for FPV mini brushless frame



Includes/Requires:

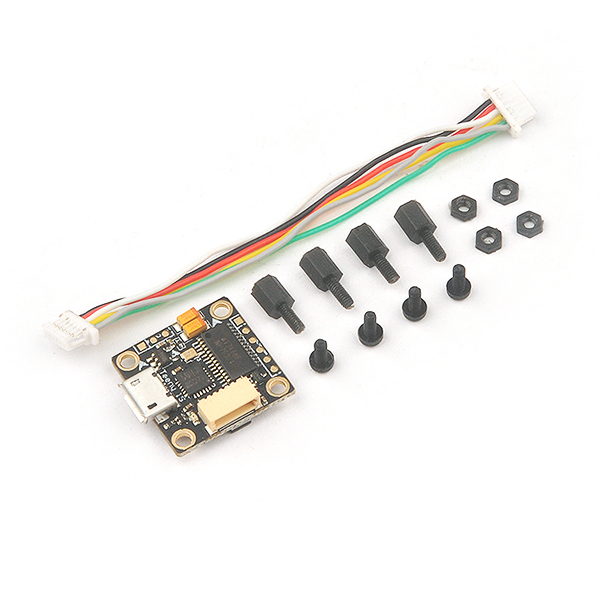

Includes:
1x Teeny1S F4 flight control board
1 x connection cable
4x M2*5+5 Nylon column
4x M2 Nuts
4x M2 Screw
