   Multi-rotors Flight Controller (FC) Teeny1S F3 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIBUS firmware)
   FPV/ Aerial Photography Flight Controller/OSD/ GPS/ Stablizer
SKU:  1SF3FK
Teeny1S F3 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIBUS firmware)
Customers rating.
Add To Wish List
Added:2017/07/18
Updated:2017/07/18

Follow Us on:


  Tags: Teeny1S F3 Flight Controller W/ OSD 5V Step-up Module | (betaflight  3.1.7  OMNIBUS firmware)

  Features:

Features:
-Support programmable LED_Strip
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Default Dshot600 ready
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD

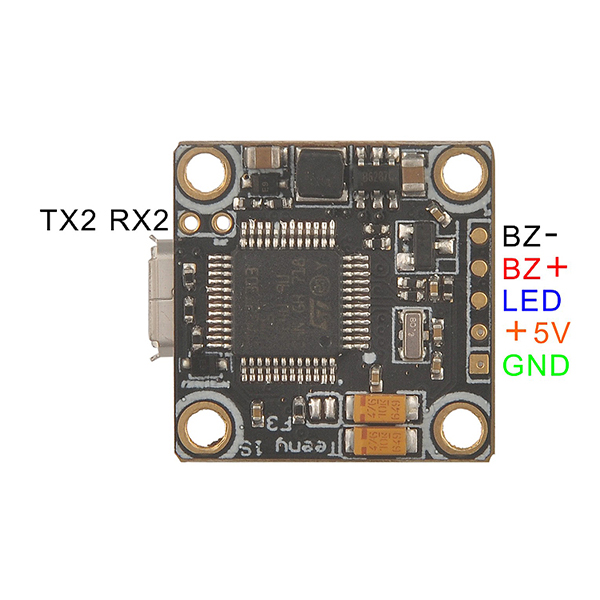

-Buzzer solder pin
-LED_STRIP solder pin
  Specifications:

Teeny1S F3 Flight Controller W/ OSD 5V Step-up Module | (betaflight_3.1.7_OMNIBUS firmware)

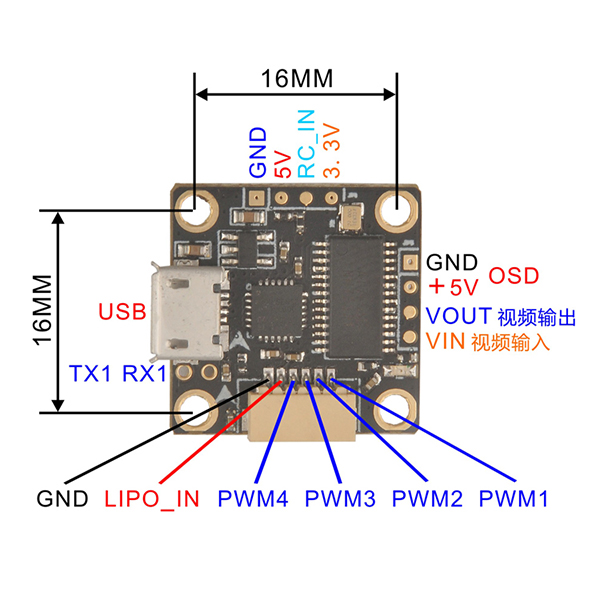

Size: 20*20mm
Mounting hole: 16*16mm
Diameter: 2mm
Weight: 2.0g
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBUS
Receiver: PPM, Spektrum 1024/2048, SBUS, IBUS, XBUS, SumD SumH RX etc.
Power supply: 1S lipo battery (3.3V-4.35V)
BEC: Built-in 5V/ 0.5A
Suitable for 60mm-80mm mini brushless FPV Quadcopter frame


  Includes/Requires:

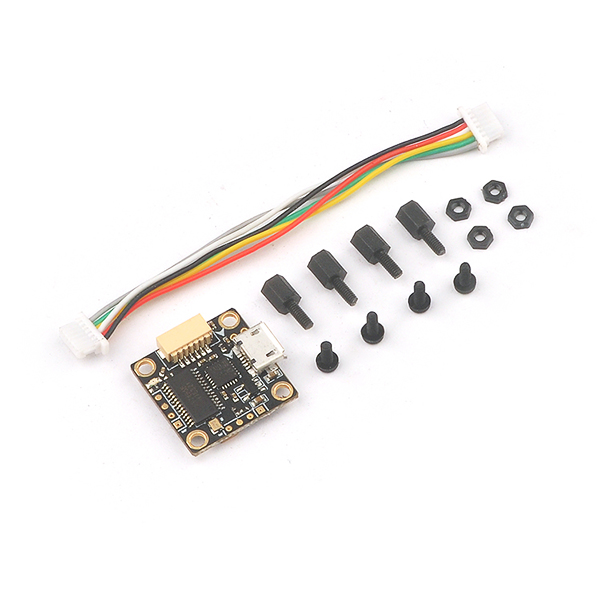

Includes:

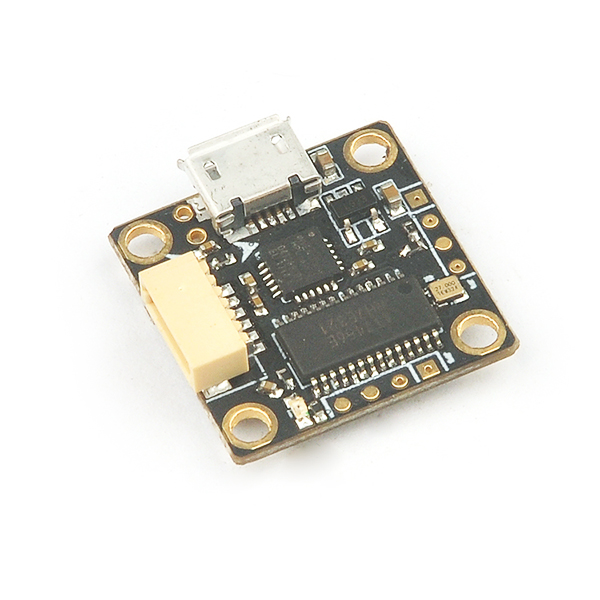

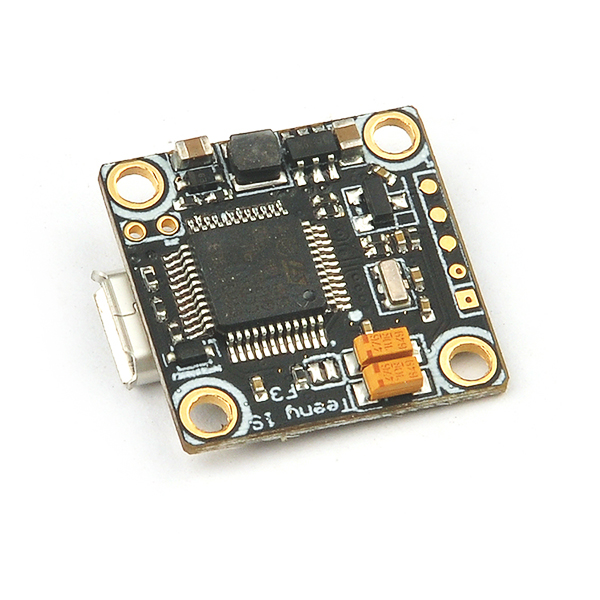

1x Teeny1S F3 flight control board
4x M2*5+5 Nylon column
4x M2 Nuts
4x M2 Screw
