Multi-rotor aircrafts and accessories
   Multi-rotors Motors SUNNYSKY M80 150KV Outrunner Brushless Motor for multi-rotors
   Electric (Brushless) Motors & Accessories
SKU:  M80150

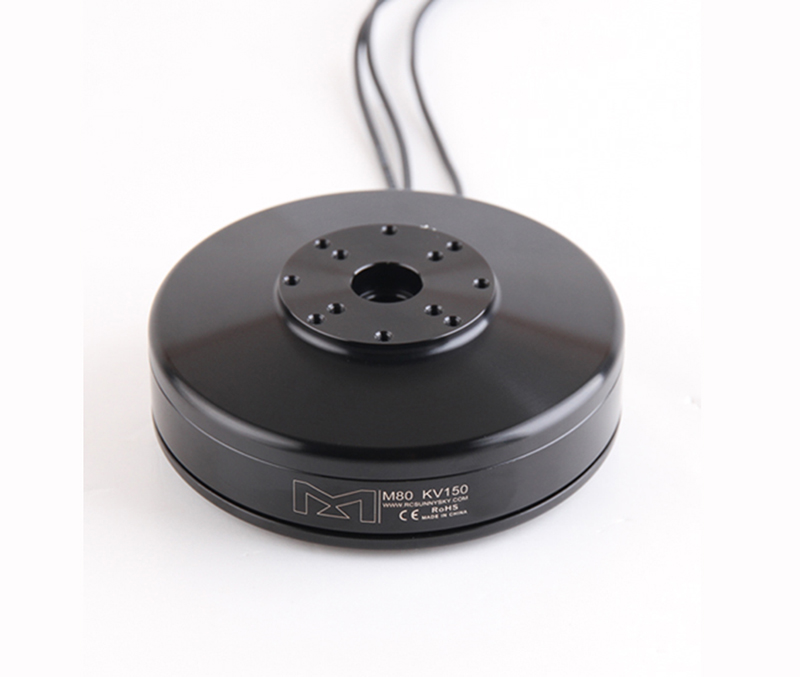

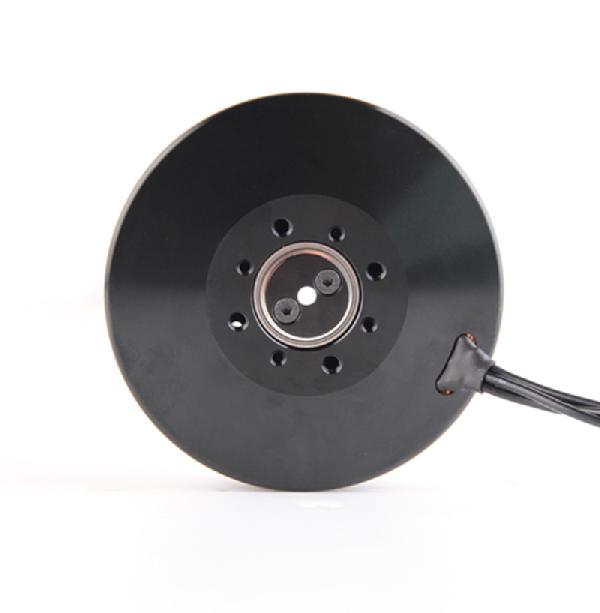

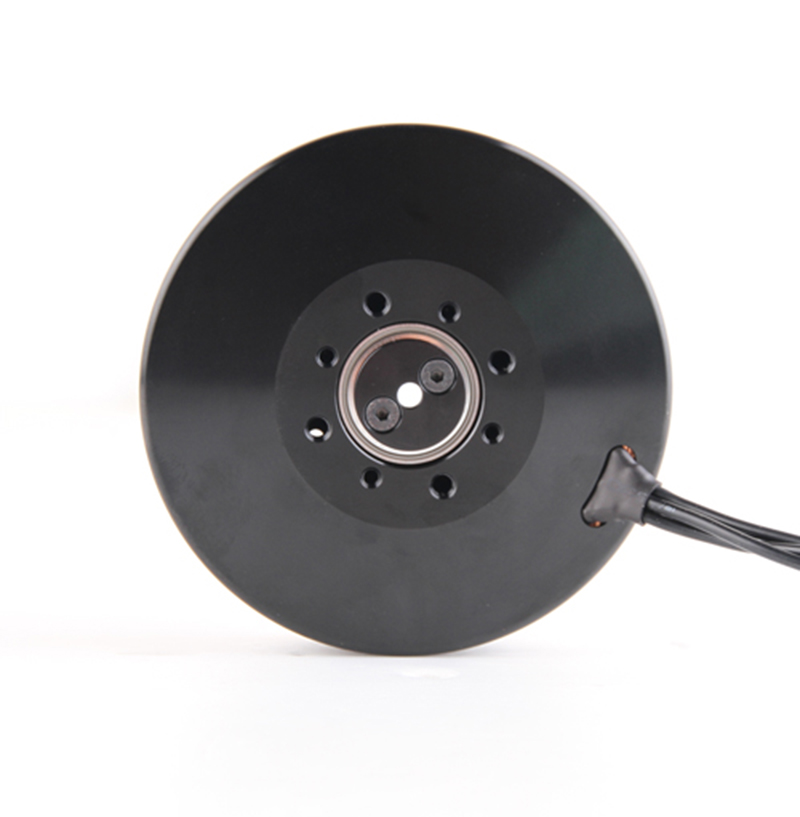

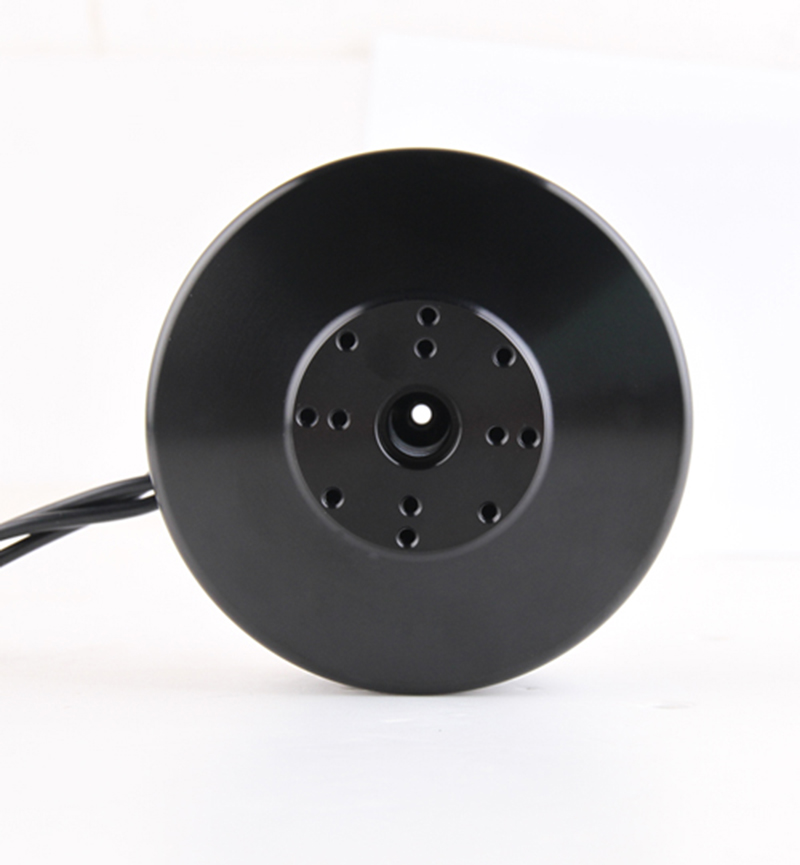

SUNNYSKY M80 150KV Outrunner Brushless Motor for multi-rotors
Customers rating.
Add To Wish List
Added:2015/09/18
Updated:2015/09/18
Follow Us on:



  Tags: SUNNYSKY  M80  150KV  Outrunner  Brushless  Motor  for  multi-rotors

Specifications:

SUNNYSKY  M80 150KV Outrunner Brushless Motor for multi-rotors



Specifications M80
No. of Stator Arms 36
No. of Stator Poles 40
Motor Kv  150
No-Load Current (A/10V)  1A
Motor Resistance  71mΩ
Max Continuous Current  33A/30S
Max Continuous Power 732W
Weight 356g
Outside Diameter 88.6mm
Shaft Diameter 10mm
Body Length 31.5mm
Overall Shaft Length 31.5mm
Max Lipo Cell  6S
ESC 40A
Recommended Prop(inch) TM26x8.5M; TM29x9.5; TM30x10.5
Suggested multicopter weight @ 6S ≤ 2500g x (# of axis)



Prop
Volts
Amps
Thrust(g)
Watts (W)
Efficiency
Temperature @ full throttle
(inch)
(V)
(A)
(g/W)
TM26*8.5 22.2 3.3 1000 73.26 13.7
4.1 1200 91.02 13.2
5.1 1400 113.22 12.4
6 1600 133.2 12.0
7.1 1800 157.62 11.4
8.1 2000 179.82 11.1
9.3 2200 206.46 10.7
10.5 2400 233.1 10.3
11.5 2600 255.3 10.2
12.7 2800 281.94 9.9
13.8 3000 306.36 9.8
15.8 3200 350.76 9.1
17.2 3400 381.84 8.9
18.3 3600 406.26 8.9
19.7 3860 437.34 8.8 35℃
TM29*9.5 22.2 2.9 1000 64.38 15.5
3.6 1200 79.92 15.0
4.4 1400 97.68 14.3
5.2 1600 115.44 13.9
6 1800 133.2 13.5
7 2000 155.4 12.9
8 2200 177.6 12.4
9 2400 199.8 12.0
10 2600 222 11.7
11.1 2800 246.42 11.4
12.2 3000 270.84 11.1
13.3 3200 295.26 10.8
14.6 3400 324.12 10.5
16 3600 355.2 10.1
17.3 3800 384.06 9.9
18.8 4000 417.36 9.6
19.8 4200 439.56 9.6
21.4 4400 475.08 9.3
23.1 4600 512.82 9.0
24.2 4800 537.24 8.9
26.5 5000 588.3 8.5
28.4 5300 630.48 8.4 51℃
TM30*10.5 22.2 2.7 1000 59.94 16.7
3.4 1200 75.48 15.9
4.1 1400 91.02 15.4
4.8 1600 106.56 15.0
5.7 1800 126.54 14.2
6.6 2000 146.52 13.7
7.5 2200 166.5 13.2
8.4 2400 186.48 12.9
9.5 2600 210.9 12.3
10.6 2800 235.32 11.9
11.7 3000 259.74 11.6
12.6 3200 279.72 11.4
13.8 3400 306.36 11.1
15.1 3600 335.22 10.7
16.4 3800 364.08 10.4
18 4000 399.6 10.0
19.2 4200 426.24 9.9
20.7 4400 459.54 9.6
22.2 4600 492.84 9.3
23.4 4800 519.48 9.2
24.7 5000 548.34 9.1
26 5200 577.2 9.0
28.1 5400 623.82 8.7
29.6 5600 657.12 8.5
31.5 5800 699.3 8.3
33.1 6000 734.82 8.2
33.8 6100 750.36 8.1 61℃


Includes/Requires:
Includes:
1 x motor

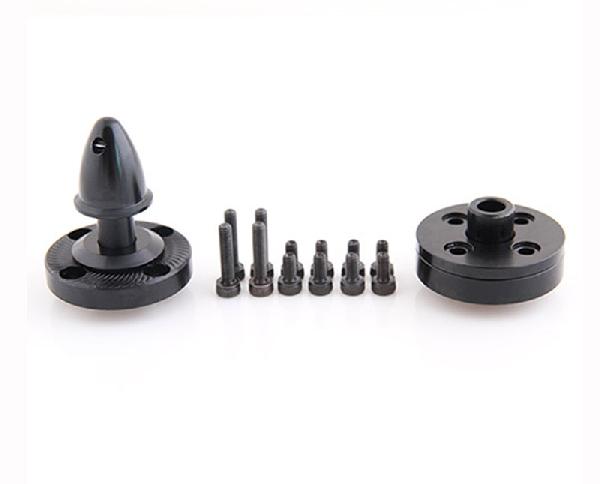

1 x accessory bag
