   Multi-rotors Motors SUNNYSKY M80L 100KV Outrunner Brushless Motor for multi-rotors
   Electric (Brushless) Motors & Accessories
SKU:  M80L100

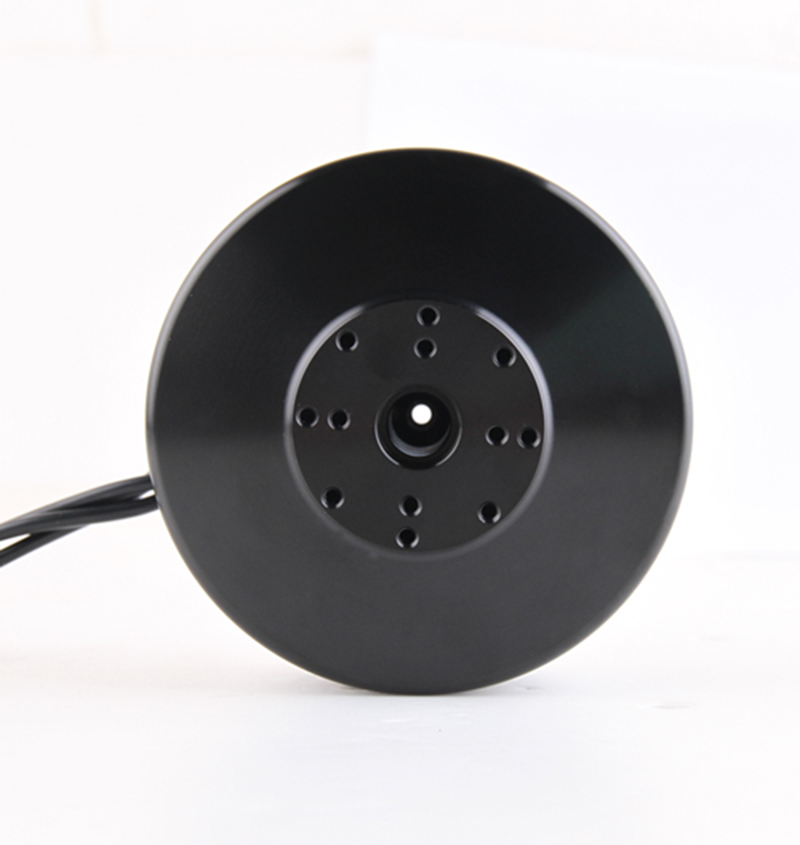

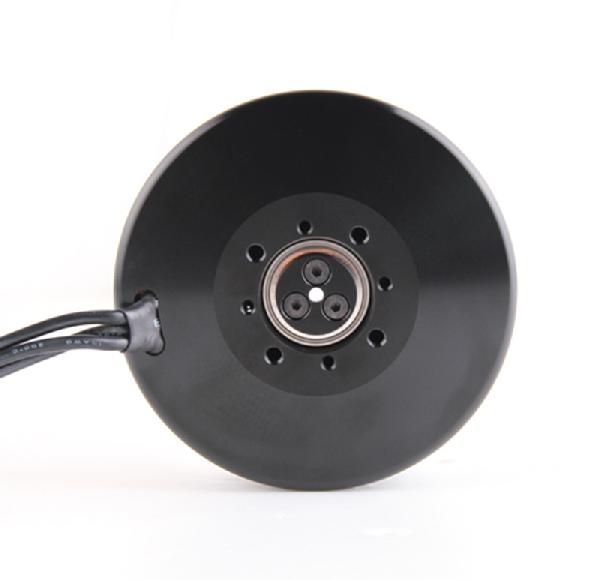

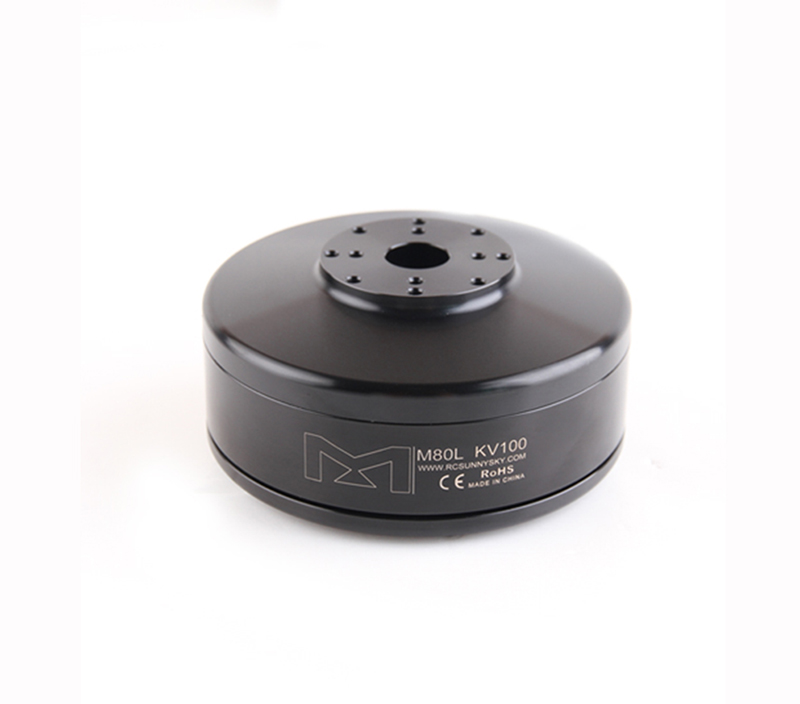

SUNNYSKY M80L 100KV Outrunner Brushless Motor for multi-rotors
Customers rating.
Add To Wish List
Added:2015/09/18
Updated:2015/09/18
Follow Us on:



  Tags: SUNNYSKY  M80L  100KV  Outrunner  Brushless  Motor  for  multi-rotors

Specifications:

SUNNYSKY  M80L 100KV Outrunner Brushless Motor for multi-rotors


Specifications M80L
No. of Stator Arms 36
No. of Stator Poles 40
Motor Kv  100
No-Load Current (A/10V)  1A
Motor Resistance  76mΩ
Max Continuous Current  40A/30S
Max Continuous Power 2000W
Weight 585g

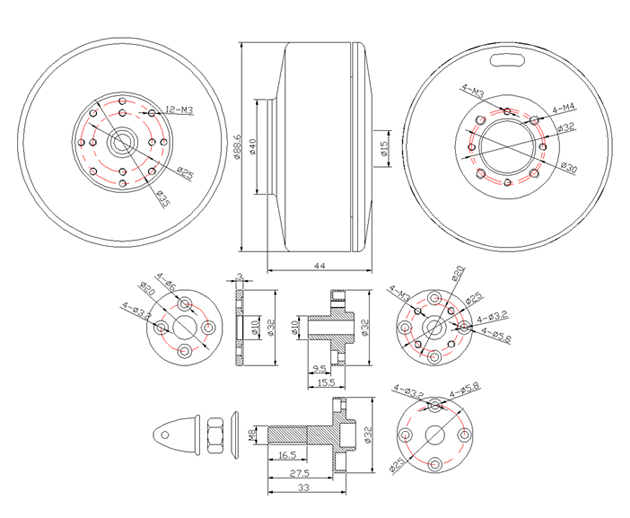

Outside Diameter 88.6mm
Shaft Diameter 10mm
Body Length 43mm
Overall Shaft Length 43mm
Max Lipo Cell  6S－12S
ESC 60A
Recommended Prop(inch) TM29x9.5; TM30x10.5
Suggested multicopter weight @ 6S ≤ 5000g x (# of axis)



Prop
Volts
Amps
Thrust(g)
Watts (W)
Efficiency
Temperature @ full throttle
(inch)
(V)
(A)
(g/W)
TM30*10.5 50 0.3 300 15 20
0.8 600 40 15
1.4 1000 70 14.3
1.7 1200 85 14.1
2.1 1400 105 13.3
2.5 1600 125 12.8
2.9 1800 145 12.4
3.3 2000 165 12.1
3.7 2200 185 11.9
4.1 2400 205 11.7
4.7 2600 235 11.1
5.1 2800 255 11.0
5.5 3000 275 10.9
6 3200 300 10.7
6.6 3400 330 10.3
7.1 3600 355 10.1
7.6 3800 380 10.0
8.1 4000 405 9.9
8.7 4200 435 9.7
9.2 4400 460 9.6
9.8 4600 490 9.4
10.5 4800 525 9.1
11.2 5000 560 8.9
11.9 5200 595 8.7
12.5 5400 625 8.6
13.2 5600 660 8.5
13.8 5800 690 8.4
14.4 6000 720 8.3
16.2 6400 810 7.9
17.4 6800 870 7.8
18.9 7200 945 7.6
20.7 7600 1035 7.3
22.5 8000 1125 7.1
23.7 8400 1185 7.1
25.9 8800 1295 6.8
27.2 9200 1360 6.8
30 9600 1500 6.4
31.4 10000 1570 6.4
35 10700 1750 6.1
38.8 11400 1940 5.9
42.8 12100 2140 5.7
46.1 12800 2305 5.6 84℃


Includes/Requires:
Includes:
1 x motor

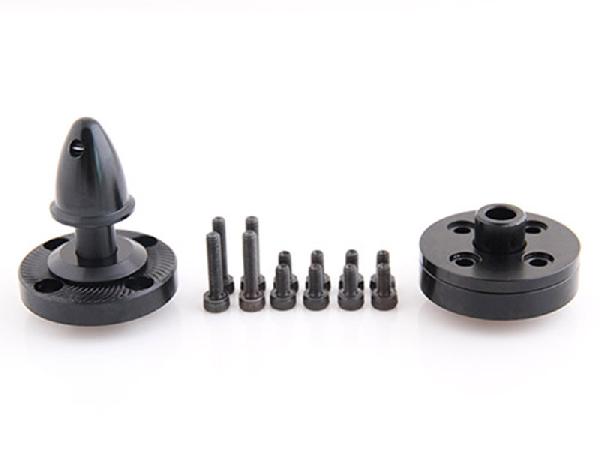

1 x accessory bag
