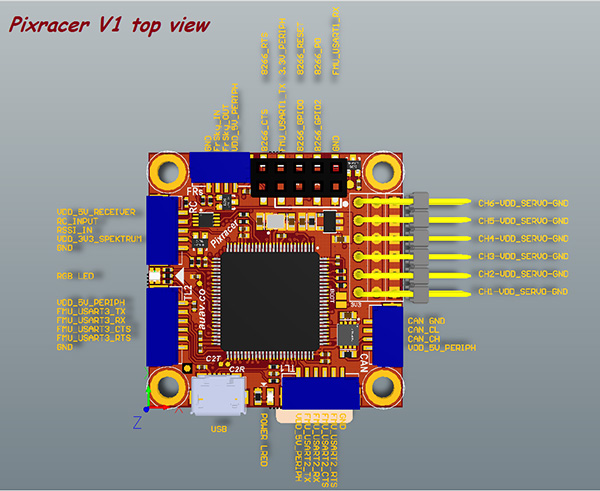

PIXRACER Mini Autopilot Flight Controller | V1.0

Processor
MCU: STM32F427VIT6 rev.3
PCB dimension: 36 x 36mm
Fixing hole spacing: 30.5mm
MEAS MS5611 barometer
5 to 5.5V power input
Weight: 26g (including case and SD card)
WIFI esp8266 802.11bgn

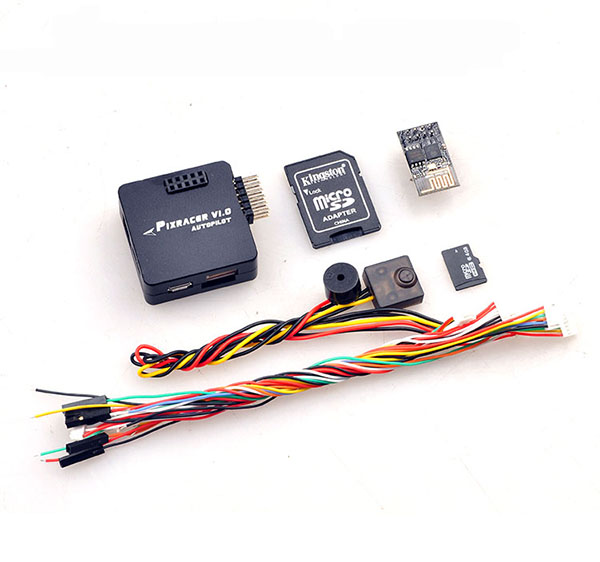

Includes:
 1x Pixracer v1.0 flight control main board
1 x CNC case
1 x safety switch + buzzer

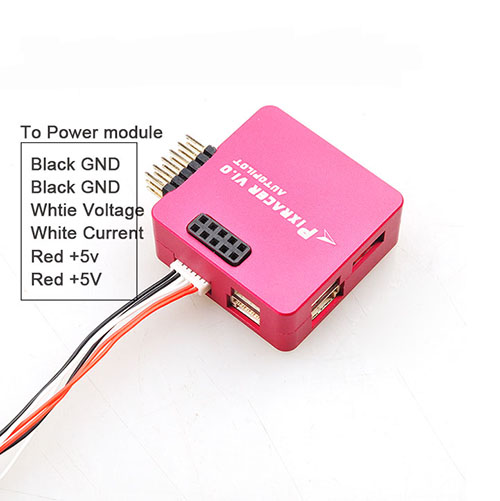

1 x power module cable
1 x serial port cable
1 x i2c connection cable

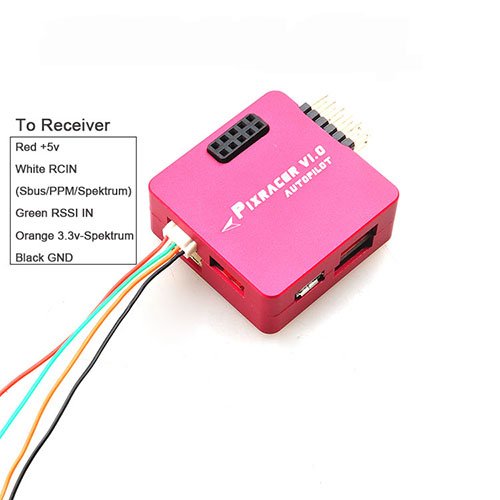

1 x receiver RC_IN cable
1 x WIFI ESP8266 module
1 x Micro SD card + card reader
