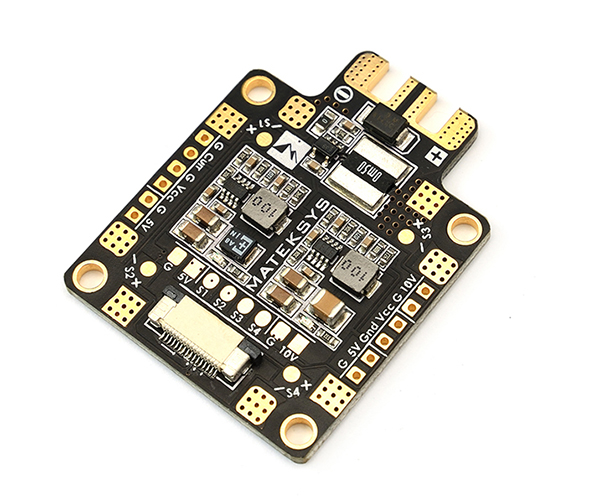

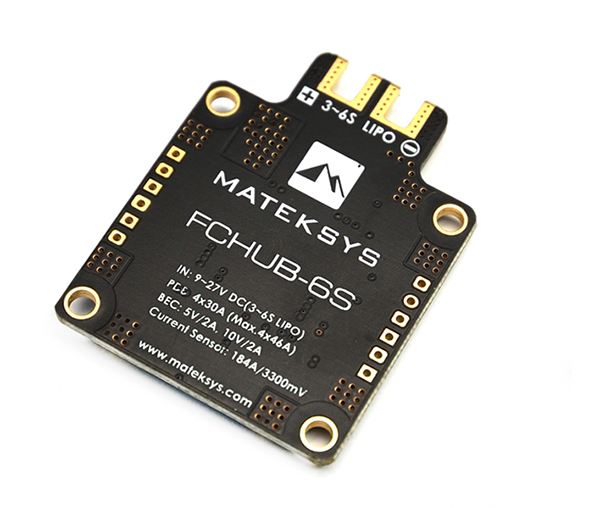

MATEK 184A Power Distribution Board W/ 5V/ 10V Output FCHUB-6S
Customers rating.
Add To Wish List
Added:2018/06/07
Updated:2018/06/07
Follow Us on:


  Tags: MATEK 184A Power Distribution Board W/ 5V/ 10V Output FCHUB-6S

Specifications:

MATEK 184A Power Distribution Board W/ 5V/ 10V Output FCHUB-6S


Total 4 pairs ESC solder tabs are fit for X type frame
Max.27V input w/ TVS protection
Built-in current sensor 184A
PDB: 4*30A (4*46A, 5 seconds), 4layers*2oz copper PCB

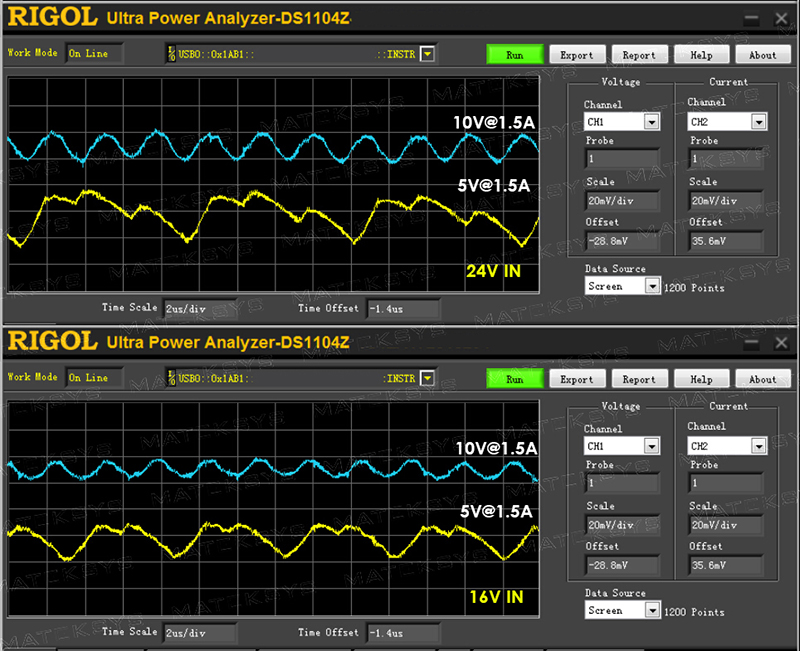

BEC 5V/1.5A(2A Max) w/ 100uF panasonic POSCAP filter
BEC 10V/1.5A(2A Max.) w/ 47uF TDK MLCC filter
5V & 10V Output LED indicators & Short circuit tolerant

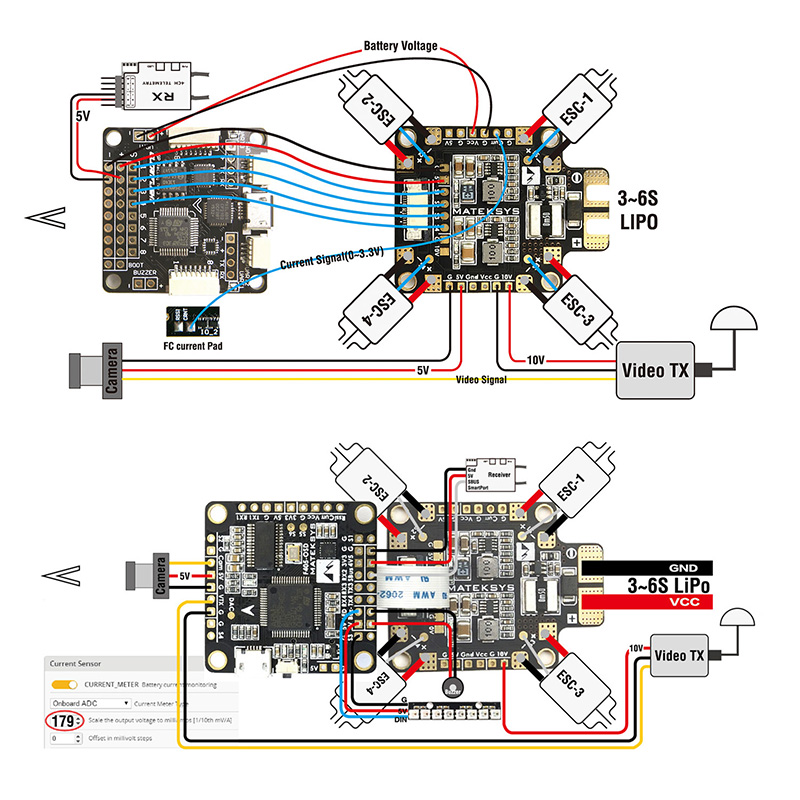

Current Module
- Max.range 184A
- 3.3V ADC
- Scale the output voltage to milliamps(1/10th mV/A): 179
BEC 5V output:
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- DC/DC synchronous buck regulator.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 1.5 Amps (Max.2.0A 10s/minute)
- Short-circuit tolerant (2 seconds/minute)
BEC 10V output:
- Designed for Video TX or FPV camera.
- Voltage: 10.0 +/- 0.2VDC
- Continuous current: 1.5 Amps (Max.2.0A 10s/minute)
- Short-circuit tolerant (2 seconds/minute)
- 10V can be used to power cameras labeled as 12V
- The 3S LiPo input voltage should be 11V plus
Physical:
- Mounting: 30.5 x 30.5mm, Φ3mm
- Dimensions: 36 x 46 x 4 mm
- Weight: 8.5g

Includes/Requires:
Includes:

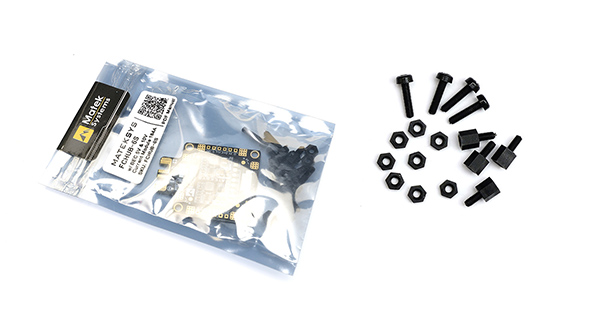

1 x Power Distribution Board
