   Multi-rotors Motors Hobbywing XRotor Race Pro 2207 2650KV Brushless Motor
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner
SKU:  XRT2207-26
Browse HOBBYWING

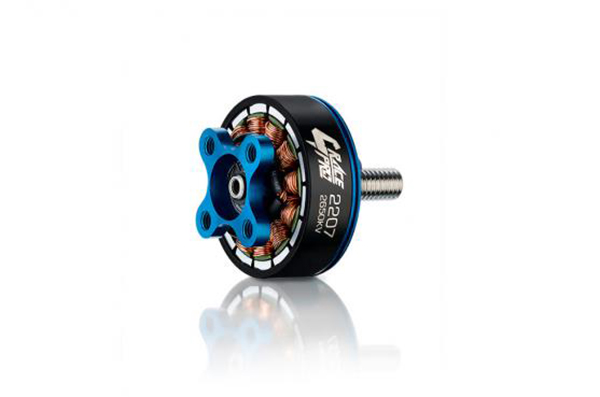

Hobbywing XRotor Race Pro 2207 2650KV Brushless Motor
Customers rating.
Add To Wish List
Added:2018/04/14
Updated:2018/04/14
Follow Us on:


  Tags: Hobbywing XRotor Race Pro 2207 2650KV Brushless Motor

Features:




Specifications:
Hobbywing XRotor Race Pro 2207 2650KV Brushless Motor


Specifications

Product Name



XRotor 2207 race pro 2650KV

XRotor 2207 race pro 2450KV

XRotor 2207 race pro 1750KV

Product Number



30405121

30405120

30405122

Relevant Parameters

KV Rating

2650KV

2450KV

1750KV

LiPo Cells

4S

4-5S

4-6S

No-Load Current(A/10V)

1.4A

1.2A

0.8A

Motor Resistance

37mΩ

40mΩ

65mΩ

Max Continuous Current / Power

51.40A/822.4W(4S)

50.09A/947.2W(5S)

39.75A/953W(6S)

Stator Diameter/Thickness

22mm/7mm

22mm/7mm

22mm/7mm

Slot/Plot Count

12S/14P

12S/14P

12S/14P

Motor/Shaft Diameter

27.5mm/4mm

27.5mm/4mm

27.5mm/4mm

Motor Length (w/o, w/ Shaft)

17.3mm/30.7mm

17.3mm/30.7mm

17.3mm/30.7mm

Weight

31.79g/29.5(w/o wires)

31.79g/29.5(w/o wires)

31.79g/29.5(w/o wires)

<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-R<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 95px; color: rgb(85, 86, 90); background-color: rgb(229, 246, 252);"<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 91px; color: rgb(85, 86,<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 97px; color: rgb(85, 86, 90); background-color: rgb(229, 246, 252);</tbo<
KV (measured value) MotorPropeller(s)Voltage(V)Throttle(%)Current(A)Thrust(g)Speed(RPM)Efficiency(g/W)Power(W)Max. Throttle Temperature(℃)
  Xrotor Race Pro 2207 2650KVAzure Power 5150-31650.845553844.0913.4491.3℃Ambient Temperature 23℃
  162811.31518161592.86180.96
  165223.59905217262.40377.44
  167636.051235250002.14576.8
  1610051.401647285712.00822.40
  Xrotor Race Pro 2207 2450KVAzure Power 5150-31650.755352754.411282.8℃

Includes/Requires:

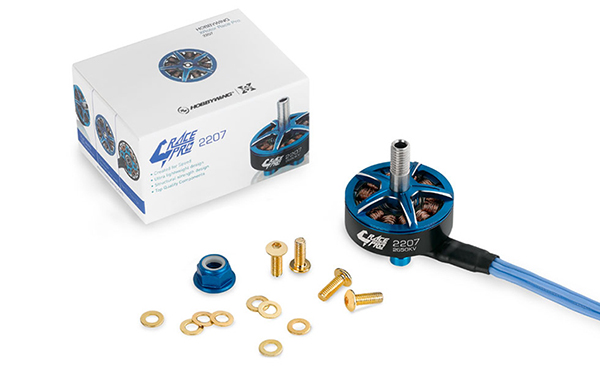

Includes:


1 x motor
1 x accessory bag
