Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers iCharger X6 800W 30A High Power Balance Charger (Portable size)
SKU:  ICHARGE-X6
Browse iCharger
iCharger X6 800W 30A High Power Balance Charger (Portable size)
Customers rating.
Add To Wish List
Added:2018/08/14
Updated:2019/05/23
Follow Us on:


  Tags: iCharger  X6  800W  30A  High  Power  Balance  Charger  Portable  size

Features:
The highest power density charger on the market, the X6 is an 800W charger capable of a full 30A rate on LiPos up to 6S. With a balance current of a full 2A, charges will finish faster than ever. The full color IPS display provides a wealth of information at a glance, using the operating system perfected on the larger Duo iChargers.


The X6 can charge at up to 30A, and it can also discharge at up to 30A! While similar size chargers limit their discharge capabilities, the X6 offers iCharger's trademark support for regenerative discharge, allowing the charger to provide a full 800W of discharge capability when powered from a suitable battery bank.


Despite its small size and low price, this is still a full featured iCharger, with multi-chemistry support and all the depth of settings you've come to expect, including an improved software interface for recording battery data and upgrading firmware.

Features:

X6 uses advanced Synchronous buck-boost DC/DC converter technology with high power, high current and high-performance power conversion circuit. The maximum charge power capacity is up to 800W, the maximum charge/discharge current of a channel is up to 30A.
X6 Supports 6s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction. Supports 1-20s NiMH/NiCd batteries and 1-12s Pb batteries.
With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)
Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.
Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced and the charger will shut down when temperature exceeds the Shut-down temperature.

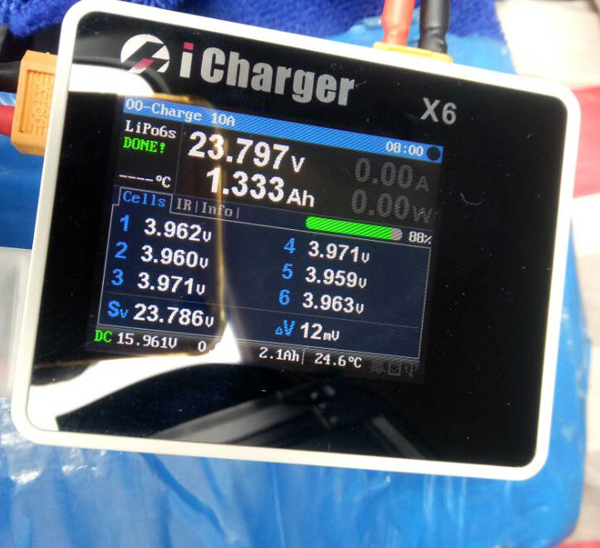

This charger can save 32 parameters sets and support the data import/export to SD card. 7. A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.
Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
X6 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, overrun time and maximum power etc.
Supports upgrading the hardware program by USB port or SD card. X6 also supports the &ldquoJunsi Console&rdquo software and can display, plot and analyze the charge and discharge data by it.

Specifications:

iCharger X6 800W 30A High Power Balance Charger (Portable size)


Net weight: 168g
Dimension: 83x65x37 ±0.5mm
Input Voltage Range: 10.0&mdash32.0VDC
Maximum Input Current Limit: <35A
Maximum Charge/Discharge Current: 30A
Maximum Charge Power Capacity: 800W
Maximum Discharge Power Capacity: 30W
Maximum Regenerative Discharge Power Capacity: 800W
Maximum Extra Discharge Power Capacity: 900W @30V/30A
Maximum Current Drain for Balancing: >2A
Includes/Requires:

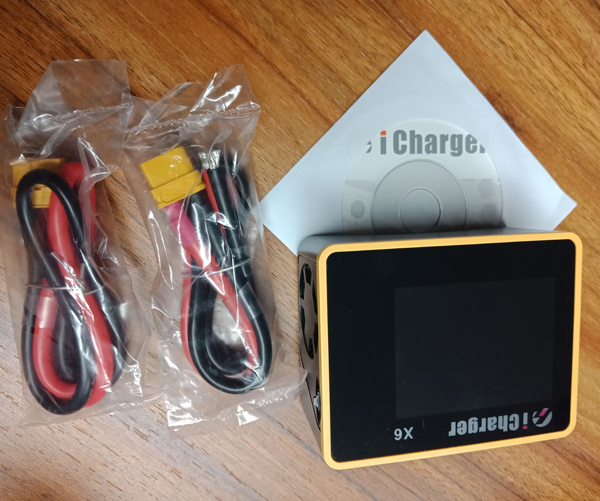

Includes:
1 x charger
2 x XT60 input cables
1 x CD disk for instruction manual & software
