Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers iCharger 4010DUO 10S x 2, 40A 2000W Dual Ports Balance Charger/ Discharger
SKU:  4010DUO
Browse iCharger

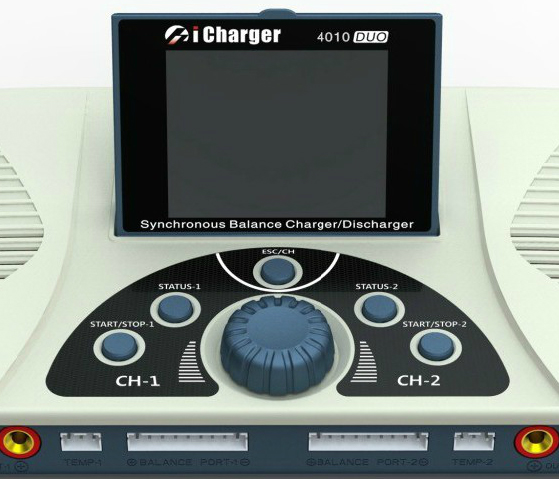

iCharger 4010DUO 10S x 2, 40A 2000W Dual Ports Balance Charger/ Discharger
Customers rating.
Manual:
Add To Wish List
Added:2013/03/27
Updated:2013/05/13
Follow Us on:


  Tags: iCharger  4010DUO  4010 DUO

Features:

● 4010DUO Special Features

1. The 4010DUO uses advanced Synchronous buck-boost DC/DC converter technology, high power, and high current and high-performance power conversion circuit. The maximum charge power capacity up to 2000W, the maximum charge/discharge current of channel up to 40A, and two channels in Synchronous Mode up to 70A.

2. Channel Supports 10s LiPo, Lilo, LiFe, with maximum 1.2A balance current, adopts unique balance calculation of internal resistance correction .

3. Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.

4. Internal temperature protection. When the internal temperature exceeds the reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the cut-temperature.

5. 64 parameters sets can be saved, without repeat setting when use, just import/export via SD card.

6. TFT LCD screen that provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.

7. Multi-discharge features: discharge-self, regenerative to input discharge, regenerative to channel discharge, and lithium battery extra expanding discharge.

8. Support measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the per-cell internal resistance of lithium battery.

9. The iCharger has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging capacity, time overrun and maximum power etc.

10. Supports upgrading the hardware program by USB port. The iChargeralso supports the “Logview” software and can display, plot and analyze the charge and discharge data by it. (See detail information about Logview in the following website: http://www.logview.info)

Specifications:

   Specifications:

● Input voltage range:     9.0—50.0VDC

● Maximum input current limit:     <65A

● Maximum charge/discharge current:    70A@Syn. Mode   40A@Asyn. Mode

● Maximum charge power capacity:    2000W (Channel 1400W @input > 23.5V)

● Maximum discharge power capacity:    200W (Channel 130W)

● Maximum regenerative discharge power capacity:   2000W (Channel 1400W)

● Maximum extra discharge power capacity:    3200W (Channel 1600W @40V/40A)

● Maximum current drain for balancing:     2.4A@Syn. Mode   1.2A@Asyn. Mode

Includes/Requires:
Includes:
1 x charger
2 x output Cables
2 x balance wires
2 x charging harnesses (balance boards)
2 x anti-slip rubber pads
1 x pair alligator clips for lead-acid battery
1 x temperature sensor
1 x USB cable
1 x CD disk for instruction manual & software
