   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars eZRun MAX5-V3-200A Brushless ESC for 1/5th Touring Car/Buggy/Truck
SKU:  EZR-MAX5
Browse HOBBYWING

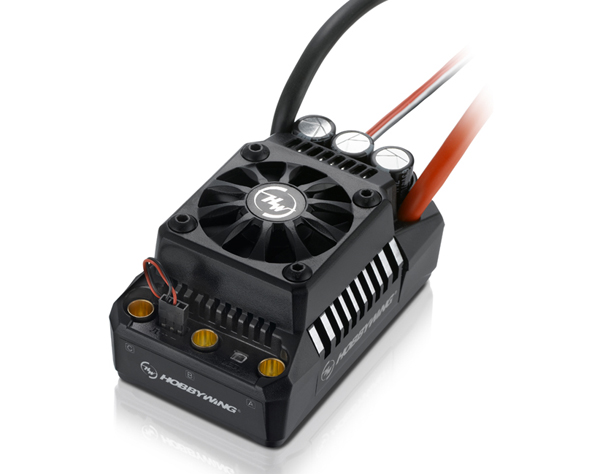

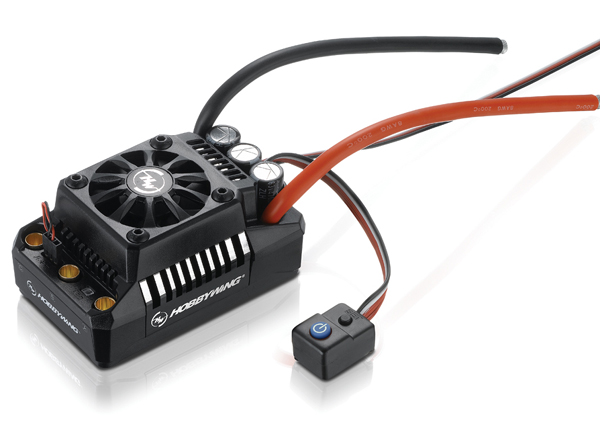

eZRun MAX5-V3-200A Brushless ESC for 1/5th Touring Car/Buggy/Truck
Customers rating.
Add To Wish List
Added:2017/02/15
Updated:2017/02/15
Follow Us on:


  Tags: eZRun MAX5-V3-200A Brushless ESC for 1/5th Touring Car/Buggy/Truck

Features:
High Reliability & Durability
Built with the most rugged and high-quality components and coupled with
cutting-edge firmware, the EZRUN MAX5 is able to deliver unmatched power
and performance for even the most hardcore of racing applications, but is also
responsive enough to protect itself from damage due to overloading due to physical
abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable
output, the MAX5 can handle instant full-torque start-ups for
wheelies, high-speed racing on straightaways and powering
through the bumpiest terrain. The user will have the choice of
adjusting the ESC parameters as per his preference and ability.

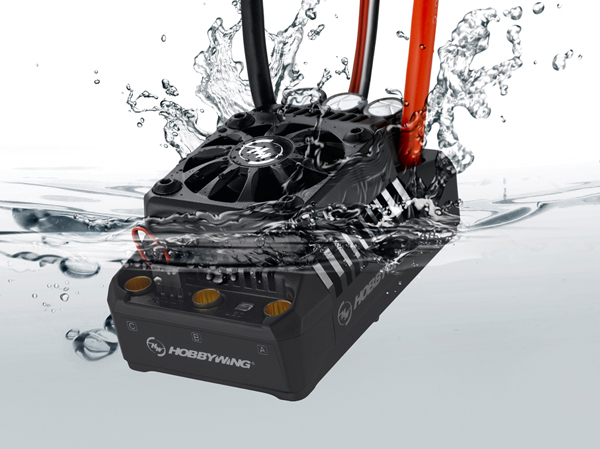

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX6 to be used in all weather
conditions without any issue of damage caused to the ESC from water or dust.

High Voltage Built-in BEC
The MAX5 has adopted the world’s first HV built-in BEC with an
output current of up to 25Amp and a switchable output voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on demand used by large scale vehicles.

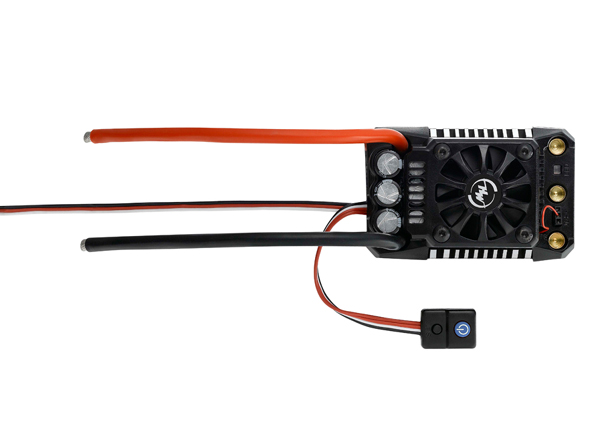

Advanced and Secure Electronic Switch
The MAX6 features an electronic switch with a lifespan of over
50000 on/off cycles, housed in a completely waterproof,
dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge
You can upgrade the MAX6 with the Hobbywing USB
LINK software, a multifunction LCD program box and a laptop.
Hobbywing updates its ESC firmware regularly giving you
upgraded features more often when available.

Maintenance Free
The ESC minus the cooling fan is basically maintenance free. The cooling fan is
designed to be shockproof, which in turn will reduce damage brought on by
frequent vehicle high jumps and landings on hard surfaces.

Built-in Anti-Spark System
The MAX5 is built with internal anti-spark circuitry that protects not only battery connectors
from damage but helps to prevent physical injury due to burnt fingers from the inevitable
issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

Wide Range of Applications
MAX5 Applications:
The EZRUN MAX 5 provides the ultimate power upgrade solution for many popular 1/5th scale
vehicles like HPI Baja buggy, Losi 5IVE-T Nitro-to-Electric truck, and Desert Buggy XL
Nitro-to-Electric buggy. It’s also suitable for various other brand of 1/5th scale on-road
cars, truggies, SCTs and buggies.



Specifications:

eZRun MAX5-V3-200A Brushless ESC for 1/5th Touring Car/Buggy/Truck


Product Name

EzRun MAX5

Product Number

30104000

Type

Scale

1/5th

Brushed/Brushless

BL

Sensored/Sensorless

SL

Waterproof

WP

Specifications

Cont./Peak Current

200A/1300A

Input

3-8S LiPo/9-24 Cells NiMH

BEC Output

Switch Mode:6V/7.4V,6A

Wires & Connectors

Input Wires

Red-8AWG-200mm*1/Black-8AWG-200mm*1

Output Wires

Black-10AWG-200mm*3

Input Connectors

No

Output Connecotors

6.5mm Famale Gold Connectors (pre-soldered onto the PCB)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

45.0x45.0x10.0mm

Voltage Range

5-7.4V

Powered by

Powered by BEC

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

FAN/Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

93.4x58.1x47.8mm

Weight

342g

Applications

Motors

SL BL Motors/SD BL Motors(only in SL mode)

Vehicles

1/5th Touring Car/Buggy/Truck

KV Rating/T Count

8S LiPo: KV ≤ 1000 (58110 Size Motors)





























































































Includes/Requires:
Includes:
1 x ESC
