Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars eZRun MAX10 60A Brushless ESC for 1/10 Car
SKU:  EZR-MAX10
Browse HOBBYWING

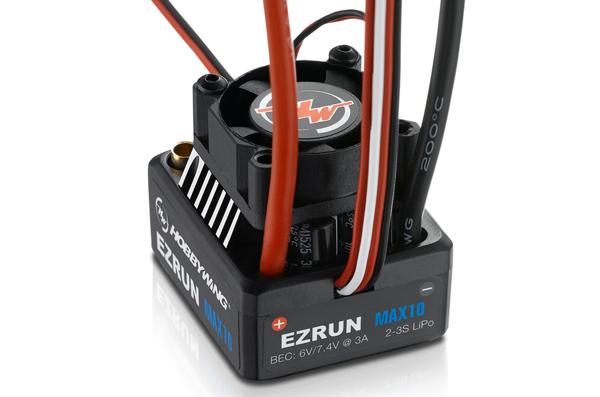

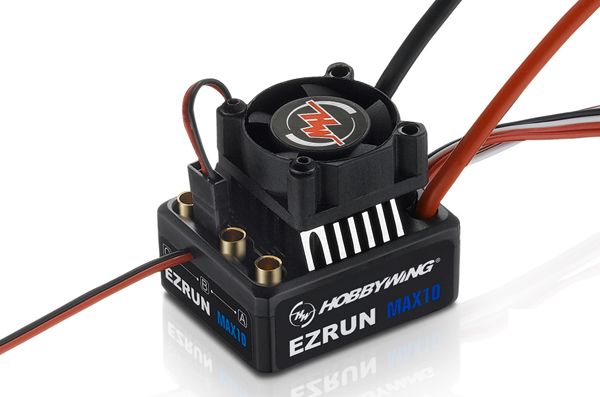

eZRun MAX10 60A Brushless ESC for 1/10 Car
Customers rating.
Add To Wish List
Added:2017/02/11
Updated:2017/02/11
Follow Us on:


  Tags: eZRun MAX10 60A Brushless ESC for 1/10 Car

Features:
The MAX10 uses a Motor Thermal Protection circuit (in Sensorless Mode)

When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor),
the temperature sensor cable on the ESC will monitor the motor temperature and protect the
motor from irreversible damage due to overheating in real time.

Capacitor Thermal Protection

The capacitor thermal protection first implemented in the MAX10
will effectively protect capacitors from diaelectric failure causing
irreversible damage to the ESC due to overload.

High Reliability & Durability
Built with high-quality components and coupled with
cutting-edge firmware, the MAX10 is able to deliver unmatched
power and performance for even the most extreme racing
applications, but it is also responsive enough to protect itself
from damage due to overloading due to physical abuse,
overuse or even human error.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage
adjustable between 6V and 7.4V allows the use of various high voltage servos.

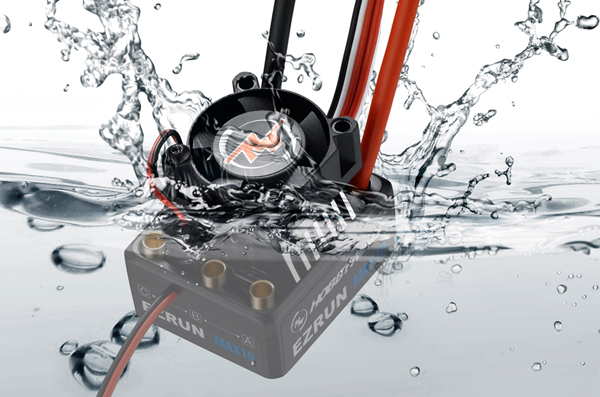

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX10 to be used in all weather
conditions without any issue of damage caused to the ESC from water or debris.

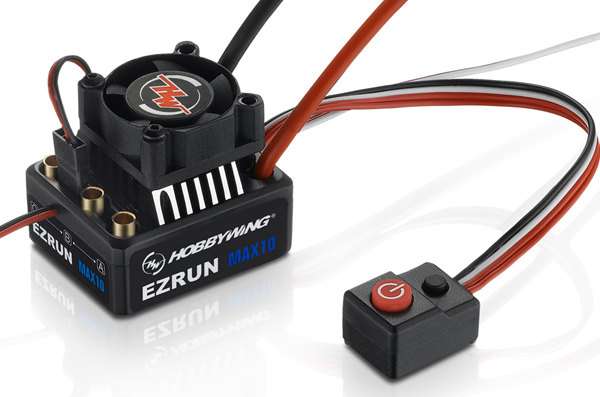

Advanced and Secure Electronic Switch
The MAX10 features an electronic switch with a lifespan of over 50000 on/off
cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge
You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi
module/ LED or program box and a smartphone/laptop (not included). Hobbywing updates its
ESC firmware regularly giving you upgraded features more often when available.
Specifications:
Specification:

Specifications

Product Name

EzRun MAX10

Product Number

30102602

Type

Scale

1/10th

Brushed/Brushless

BL

Sensored/Sensorless

SL

Waterproof

Yes

Specifications

Cont./Peak Current

60A/450A

Input Voltage

2-3S LiPo/6-9 Cells NiMH

BEC Output

Switch Mode: 6V/7.4V,3A

Wires & Connectors

Input Wires

Red-14AWG-200mm*1/Black-14AWG-200mm*1

Output Wires

Black-14AWG-200mm*3

Input Connectors

No

Output Connectors

3.5 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size

25.0x25.0x10.0mm

Voltage Range

5-7.4V

Powered by

BEC

ESC Programing via

SET Button on ESC

Supported

LED Program Box

Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

PRG/Fan Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

39.4x32.8x23.1mm (w/o Fan)

Weight

67.8g

Applications

Motors

SL BL Motors/SD BL Motors (only in SL mode)

Vehicles

1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck

KV Rating/T Count

2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors)

Includes/Requires:
Includes:
1 x ESC
