   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis ZTW Mantis series 85A OPTO 2-6S Electric Speed Controller
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  MZTW85A
Browse ZTW

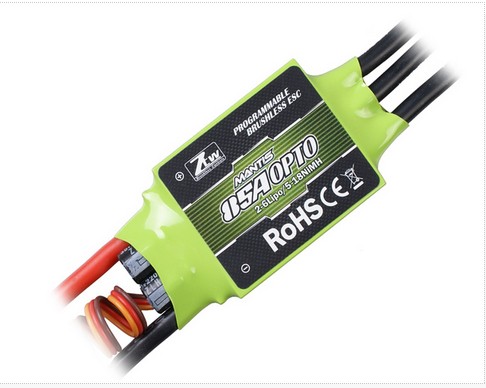

ZTW Mantis series 85A OPTO 2-6S Electric Speed Controller
Customers rating.
Manual:
Add To Wish List
Added:2014/05/12
Updated:2015/09/25
Follow Us on:


  Tags: ZTW Mantis ESC speed controll ZTWOEM

Features:

ZTW Mantis series ESC is a medium level product line designed for fixed wing and Helis. This product line cover wide range of product to meet various customer needs from 6A to 155A including OPTO HV version.It’s performance and stability have been approved by distributors and pilots around the world. It features compact size, light weight, fashion design, super smooth start up and throttle linearity, multiple protection, governor, strong BEC output etc. All these feature make this product line a perfect intermediate level for the park, sports, aerobatic pilots.

Features
Supports high RPM motors,can be used with most of the motors in the rc market .
Secondary sub-menu setting ,is easier to be programmed .
Advanced Governor Mode ( has the B-Series ESC to keep the motor speed even though the load is changed)
More optional motor timing Setup and soft acceleration start ups ( make the motors run smoothly)
Super smooth and accurate throttle linearity
Power arming protection (prevents the motor from accidentally running when switched ON)
Auto throttle shut down in signal lose situation
Safety thermal over-load protection, when the temperature of ESC exceeds 110 deg C,the ESC will reduce the output power to allow it to cool.
Use new generation of the MOSFET to ensure ESC's heating low,supporting biggest Peak current and higher reliability .
3.1 New Advanced programming software

Specifications:

ZTW Mantis series 85A OPTO 2-6S Electric Speed Controller



Length

47mm

Width

35mm

Height

15mm

Weight

57g

Max Output

Continuous Current 85A

Burt Output

100A (10s)

Battery

2-6Lipo/5-18NC

BEC Output

No



Includes/Requires:
Includes:
1 x ESC ZTW Mantis
