Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis XRotor Micro BLHeli-s 30A DShot600
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  XRT30A
Browse HOBBYWING

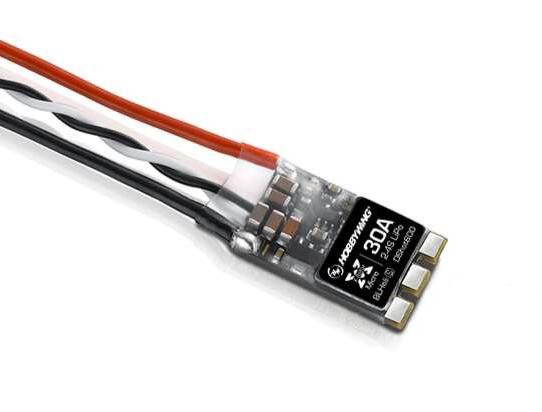

XRotor Micro BLHeli-s 30A DShot600
Customers rating.
Add To Wish List
Added:2017/07/25
Updated:2017/07/25
Follow Us on:


  Tags: XRotor Micro BLHeli-s 30A DShot600

Features:





Specifications:

XRotor Micro BLHeli-s 30A DShot600

Specifications

Product Name



XRotor Micro BLHeli-s 30A DShot600

Product Number



30901075

Specifications

Cont./Peak Current

30A/40A

 Input Voltage

2-4S LiPo

BEC output

No

Wires & Connectors

Input Wires

Red-18AWG-100mm*1 / Black-18AWG-100mm*1

Output Wires

No wires but solder tabs

Input Connectors

No

Output Connectors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Firmware

BLHeli-S A-H-50 16.5

ESC Programming

Stick Programming, BLHeliSuite

Stick Programming

Supported

DEO

Supported

Throttle Range Calibration

Supported

Oneshot125 Mode

Supported

Oneshot42 Mode

Supported

MultiShot Mode

Supported

DShot150/300/600

Supported

Timing

Supported

Motor Rotation

Supported

Size & Weight

Size

23.8x14.5x5.8mm

Weight

6g

Applications



150-280mm FPVs


Includes/Requires:
Includes:
1 x ESC
