   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X2204S II 2300KV Outrunner Brushless Motor CCW | V2
   Multi-rotors Motors
SKU:  2204SIICCW

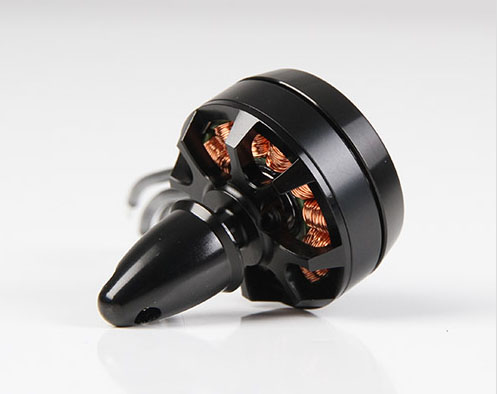

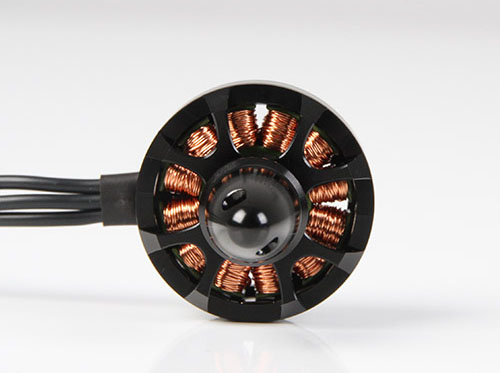

SUNNYSKY X2204S II 2300KV Outrunner Brushless Motor CCW | V2
Customers rating.
Add To Wish List
Added:2016/03/12
Updated:2016/03/20
Follow Us on:


  Tags: SUNNYSKY X2204S 2300KV Outrunner Brushless Motor CCW II version 2 V2

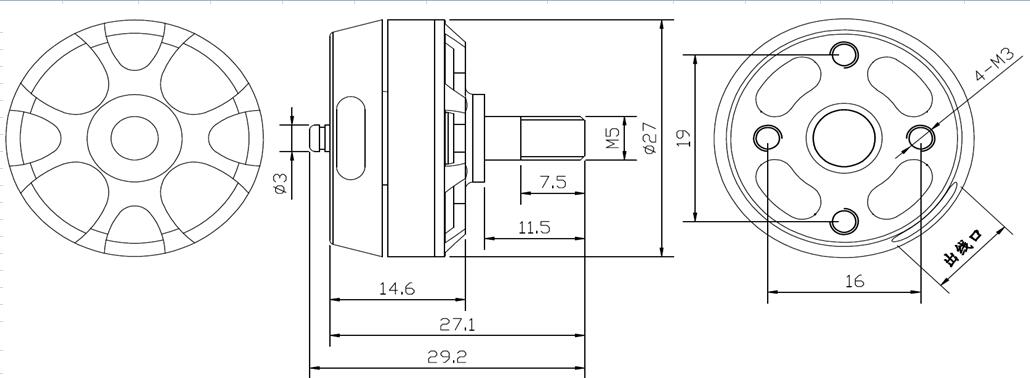

Specifications:

SUNNYSKY X2204S II 2300KV Outrunner Brushless Motor CCW | V2


Stator Diameter22mm
Stator Thickness4mm
No.of Stator Arms12
No.of Stator Poles14
Motor Kv2300
NO-Load Current(A/10V)0.5A
Motor Resistance100mΩ
Max Continuous Current20A/15S
Max Continuous Power296W
Weight25g
Outside Diameter27mm
Shaft Diameter3mm
Body Length14.6mm
Overall Shaft Length29.2mm
Max Lipo Cell2-4S
ESC30A
Recommend Prop(inch)5030, 5040, 5045



PropVoltsAmps Thrust(g)Watts (W)Efficiency
(g/W)
Full throttle Temperature
(inch)(V)(A)
HQ5*311.11.410015.546.435006435
2.415026.645.630630631
3.420037.745.299417064
4.425048.845.118755119
5.630062.164.826254826
6.835075.484.636989931
7.638084.364.50450450524
HQ5*314.81.110016.286.142506143
1.815026.645.630630631
2.620038.485.197505198
3.525051.84.826254826
4.530066.64.504504505
5.535081.44.2997543
6.640097.684.095004095
7.8450115.443.898128898
8.9500131.723.795930762
10.1550149.483.679421996
11.5600170.23.52526439530
HQ5*411.11.510016.656.006006006
2.515027.755.405405405
3.720041.074.869734599
4.925054.394.596433168
6.230068.824.359197908
7.635084.364.148885728
9.1400101.013.96000396
11.1460123.213.73346319327
HQ5*414.81.110016.286.142506143
215029.65.067567568
2.920042.924.659832246
3.925057.724.331254331
5300744.054054054
6.135090.283.876827647
7.4400109.523.65230095
8.7450128.763.494874185
10.1500149.483.344929088
11.5550170.23.231492362
12.8600189.443.16722973
14.9650220.522.947578451
17710251.62.82193958737
HQ5*4.511.11.510022.24.504504505
2.615038.483.898128898
3.720054.763.65230095
4.925072.523.447324876
6.230091.763.269398431
7.53501113.153153153
9400133.23.003003003
11.4470168.722.78568041727
HQ5*4.514.81.110016.286.142506143
1.915028.125.33428165
2.920042.924.659832246
3.825056.244.445234708
4.930072.524.136789851
6.135090.283.876827647
7.3400108.043.702332469
8.6450127.283.535512256
105001483.378378378
11.5550170.23.231492362
13.1600193.883.094697751
14.8650219.042.967494522
16.9700250.122.798656645
17.57202592.7799227839



Includes/Requires:
Includes:
1 x motor CCW
