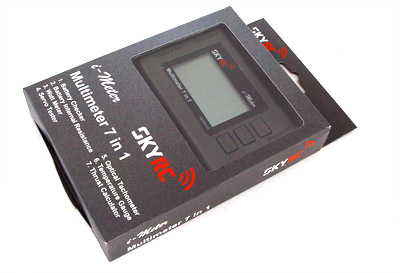

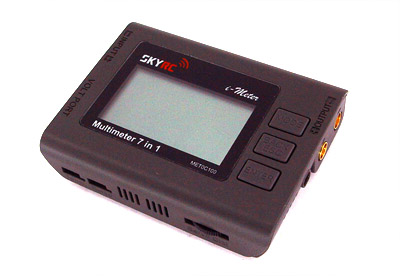

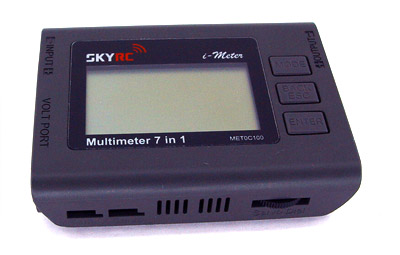

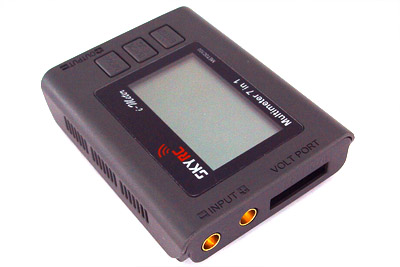

SKYRC i-Meter Multimeter 7 in 1
Customers rating.
Manual:
Add To Wish List
Added:2010/12/22
Updated:2011/05/25
Follow Us on:



  Tags: battery meter  battery internal resistance  watt meter  servo tester  tachometer  temperature gauge  thrust calculator

Features:
FEATURES
1. Battery Checker
2. Battery Internal Resistance
3. Watt Meter
4. Servo Tester
5. Optical Tachometer
6. Temperature Gauge
7. Thrust Calculator
Specifications:
Max input voltage: 60V
Voltage measurement range: 2-8S LiPo/LiFe/LiIon
Voltage display resolution: 0.001V
Volt Port: 2.54mm pitch pins, 9 pins
Max current: 100A
Shunt resistance:0.001ohm
Displayed resolution A: 0.01
Temperature resolution: 1 Celsius / 1 Fahrenheit
PPM signal output: 750uS – 2150uS
Number of propeller measurable : 1 to 5
Propeller rotating range: 1-60000RPM
Dimension: 95.3x72.8x21.5mm
Net Weight: 85g
Includes/Requires:
Includes:

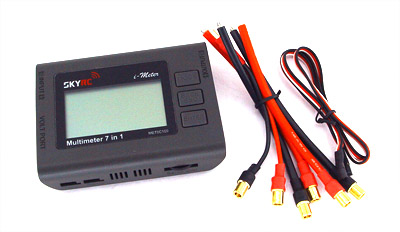

1 x multimeter
1 x temp. sensor
4 x input and output wires (with connectors on one end)
1 x battery resistance testing wire
1 x instruction manual
