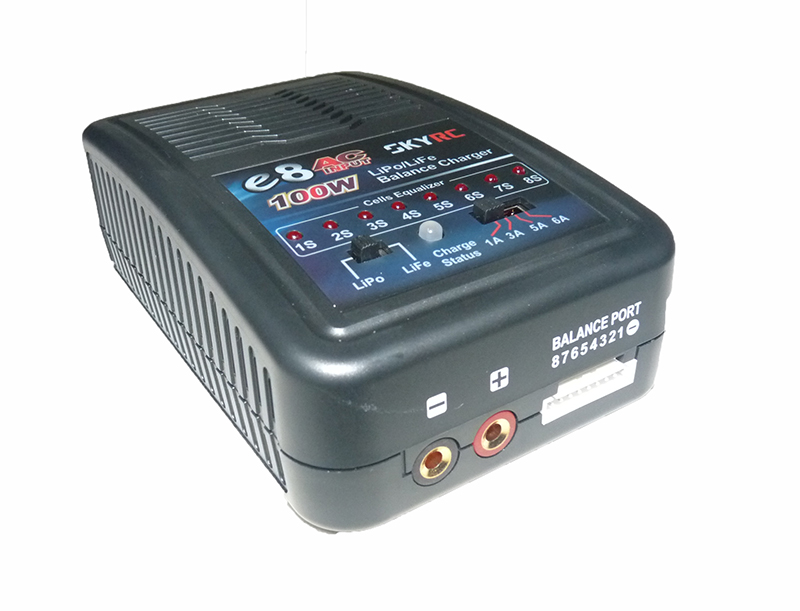

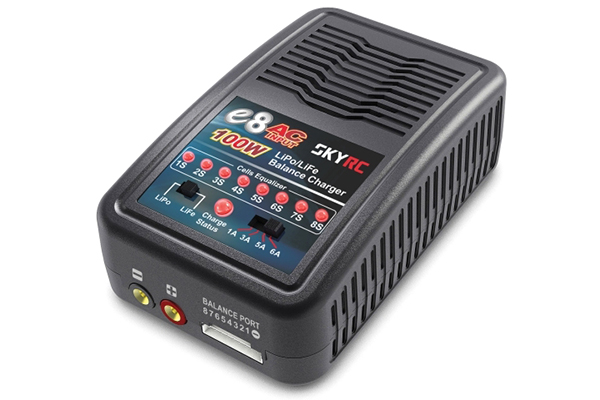

SKYRC e8 Charger is an economic, high quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-8 cells in balance mode. The circuit power is 100W and max charge current can reach to 6A. There are four different charge current 1A/3A/5A/6A which can be selected. You could select the proper charge current according to battery capacity.


Features:

  • Low cost and Compact Size .
  • With Built-In AC Adaptor and universal voltage AC 100-240V input, e8 charger can be used all over the world and no need additional adaptor.
  • Easy to operate .
  • Charge in balance Mode.

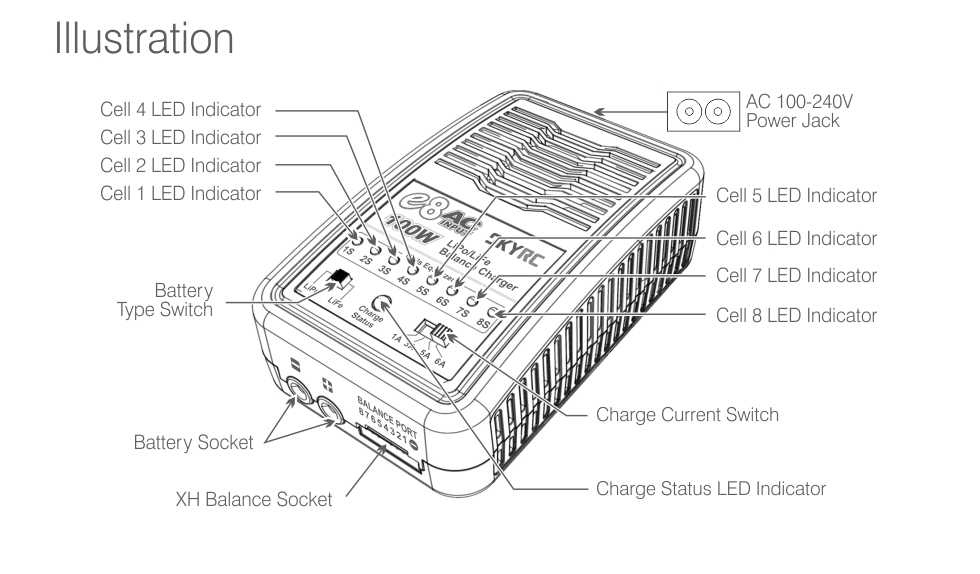

Charge Status LED	LED green blinking	The charger is ready to charge.
	LED glows constant red	The charger is charging in CC mode.
	LED glows constant orange	The charger is charging in CV mode.
	LED glows constant green	The charging process finishes.
Cell Status LED	LED glows constant red	The cell is charging.
	LED flashes red	The cell is discharging.

   * Error Message
If there is an error, the charge status LED and one of the cell LED will blink in sequence.

LED Status	Error Message
charge status LED + Cell 1 LED	The voltage difference among cells is too big(more than 300mV)
charge status LED + Cell 2 LED	Wrong connection
charge status LED + Cell 3 LED	Over current protection
charge status LED + Cell 4 LED	Reverse polarity

   In this case, please disconnect the power cord from the wall socket and unplug the battery from the charger.
