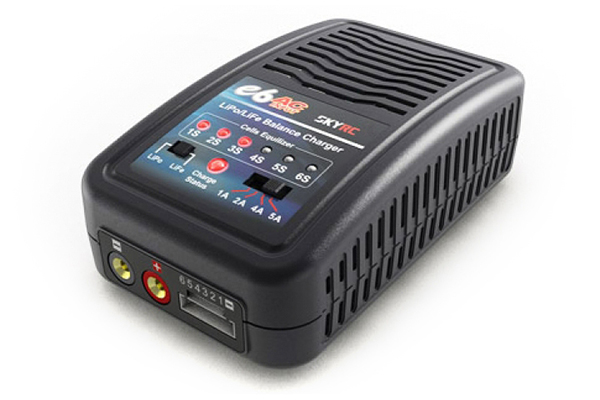

SKYRC E6 100-240V AC 2-6S 5A LiPo Charger
Customers rating.
Add To Wish List
Added:2015/11/24
Updated:2015/11/24
Follow Us on:


  Tags: SKYRC E6 100-240V AC 2-6S 5A LiPo Charger

Features:

SKYRC e6 Charger is an economic, high quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-6 cells in balance mode. The circuit power is 50W and max charge current can reach to 5A. There are four kinds of charge current 1A/2A/4A/5A that can be selected. You could select the proper charge current according to the battery capacity.



There is one LED indicating the charge status (ready to charge/charge in CC mode/charge in CV/ mode/charge finish) and six LEDs indicating each battery cell status (charge/discharge). In this case, we could know the charge process at any time easily through the LEDs status.



The operation of the charger is also very simple. There are two toggle switches in the charger which can be used to select battery type and charge current. After you power on the charger, select the battery type and charge current, connect the battery and charger with the balance board, the charger will start working.



The features of the charger is as below,

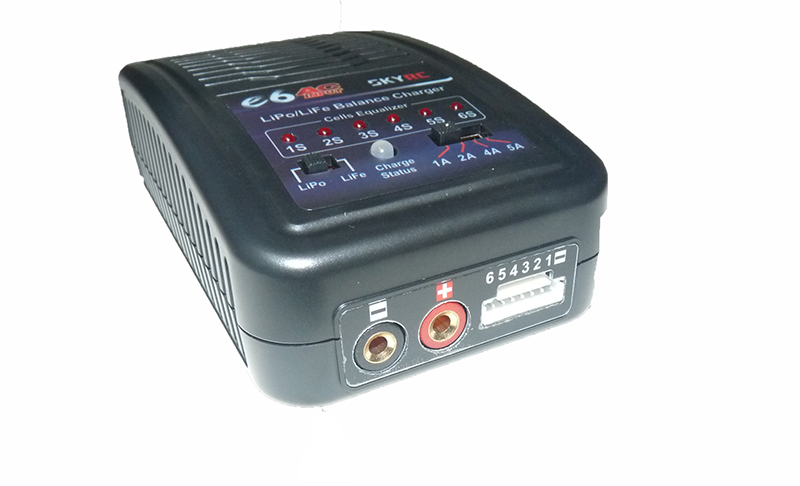

Illustration






Explanation of LED Status



Charge Status LEDLED flashes green.The charger is ready to charge.
LED glows constant red.The charger is charging in CC mode.
LED glows constant orange.The charger is charging in CV mode.
LED glows constant green.The charging process finishes.
Cell Status LEDLED glows constant red.The cell is charging.
LED flashes red.The cell is discharging.


Specifications:

SKYRC E6 100-240V AC 2-6S 5A LiPo Charger


AC Input Voltage: 100-240V,50-60HZ
Output Power: 50W
Charging Current (Selected by Switch): 1A,2A,4A,5A
Battery Type (Selected by Switch):LiPo/LiFe
Battery Cell Count: 2-6S
Current Drain for Balancing: 200mA
6 LEDs for Balancing Indicatior
1 LED for Charging Status
Dimension: 82.7*140.5*45.7mm
Weight: 310g

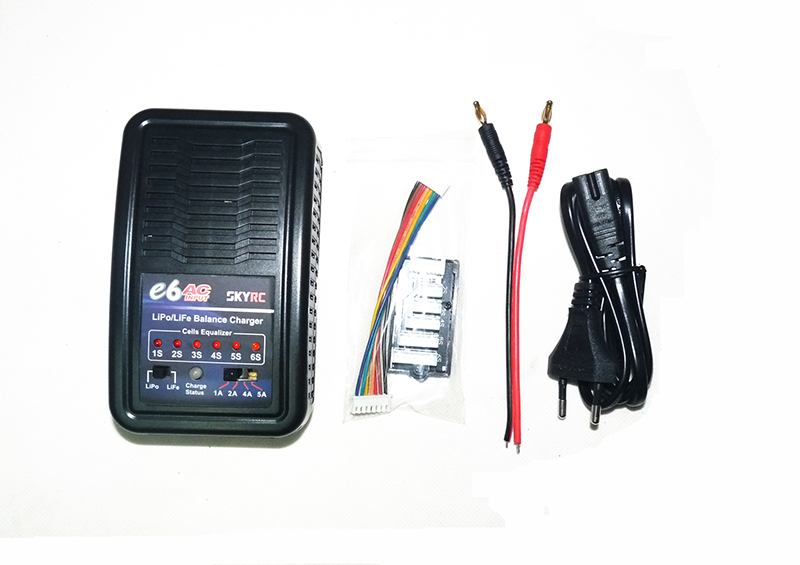

Includes/Requires:
Includes:
1 x charger
