SKYRC D200 110-240V AC 1-6S 2x10W Balance Charger W/ Soldering Iron D200
Customers rating.
Add To Wish List
Added:2015/11/24
Updated:2015/11/24

Follow Us on:


  Tags: SKYRC D200 110-240V AC 2-3S Compact Balance Charger W/ Soldering Iron D200

  Features:


  SKYRC D200 is a dual output charger, which supports power distribution with AC source. It has new functions, like, Terminal Voltage Control (TVC), Battery Meter, Battery Internal Resistance Meter.
  It has software protection, like, Current Limit, Capacity Limit, Temperature Threshold and Charging Time Limit.It supports PC control and firmware upgrade.
  Additionally,it has a built in soldering iron that can heat up to 450℃ with heavy duty 60W, the temperature is adjustable from 200-450℃.

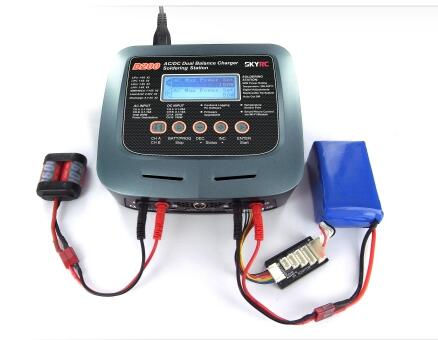

Dual Output

SKYRC D200 allows you to charge two different battery packs simultaneously.

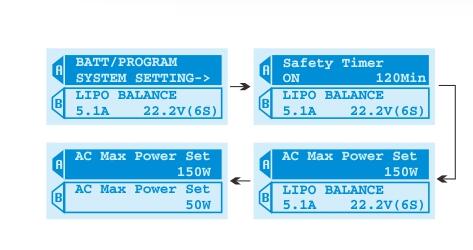

Power Distribution

With AC source, if you set the maximum output power of channel A xW, then that of channel B will be yW(y=200-x).

LiHV Modes

SKYRC D200 can charge /dicharge 4.35V LiHV battery.

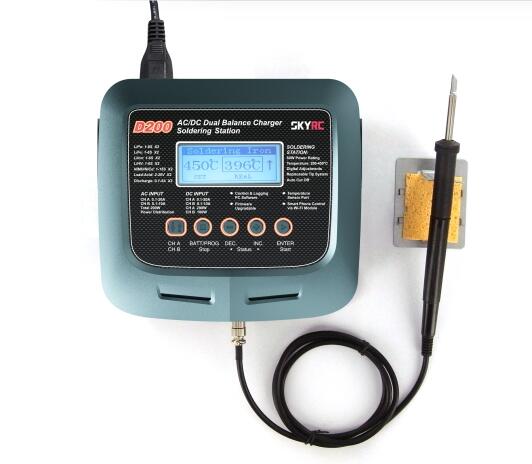

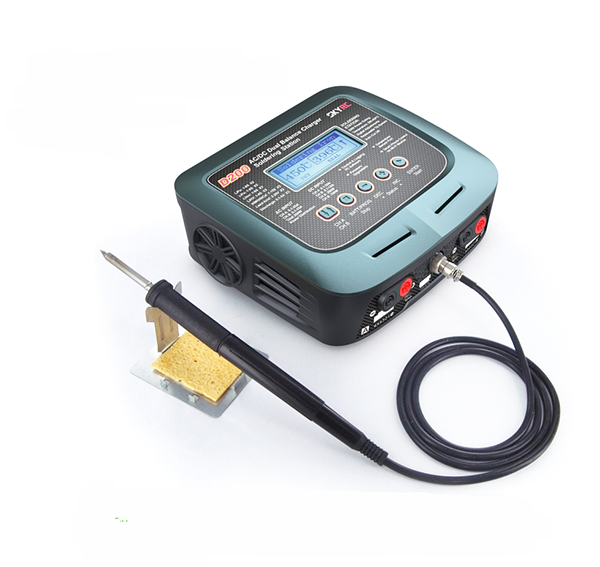

Soldering Iron



Power: 60W, Temperature Range: 200-450℃ (392-842℉)
Spare tips: pencil tip×1pc,
                   chisel tip×1pc



It has a built in soldering iron that can heat up to 450℃ with heavy duty 60W.
  SKYRC D200 has built in cell voltage balancer.
  Current Limit
Capacity Limit
Temperature Threshold
Charging time Limit

  User can store 20 charge/discharge profiles which can be called out without any special program setting.
  User can check battery pack's total voltage, and each cell's voltage.
  User can check battery pack's total internal resistance, and each cell's internal resistance.
  User can use 'Charge Master' controlling and viewing real time data with graphs, also can update firmware with it.
  User can modify the end voltage (for expert only).
  Support LiHV battery.


  User can monitor battery pack's total voltage, individual cell voltage etc., and view real time data and graphs of related specs during charging/discharging. Also user can use 'Charge Master' to update firmware.




  Specifications:

SKYRC D200 110-240V AC 1-6S 2x10W Balance Charger W/ Soldering Iron D200





 Dimension
 Net Weight 1260g

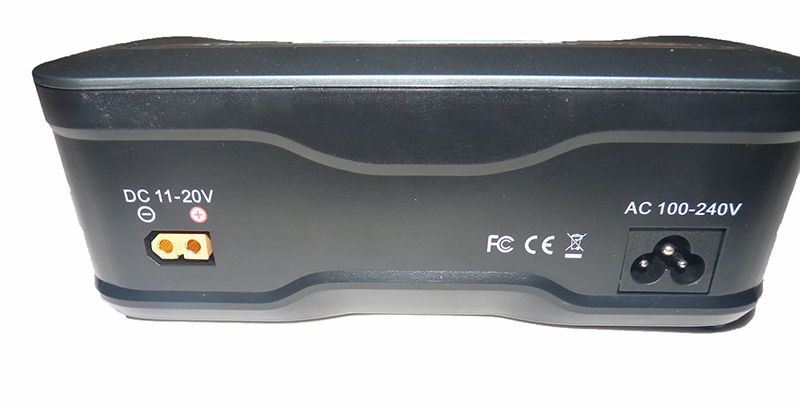

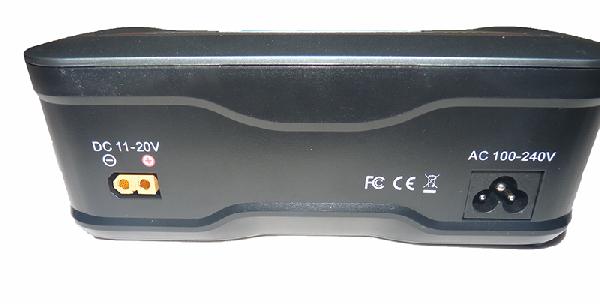

 Input Voltage AC100-240V / DC 11-20V
 Charge Circuit Power DC Input CH A 200W / CH B 100W
 AC Input 200W (Support Power Distribution)
 Discharge Circuit Power 2 x 10W
 Charger Current Range CH A 0.1-20A / CH B 0.1-10A
 Discharge Current Range 0.1-5A
 Current Drian for Balancing Port Max 300mA/cell
 Trickle Charging Current 30mA-300mA & OFF
 LiPo/LiFe/Lilon/LiHV Battery Cell Count 1-6S
 NiMH/NiCd Battery Cell Count 1-15S
 Pb Battery Voltage 2-20V








  Includes/Requires:

Includes:

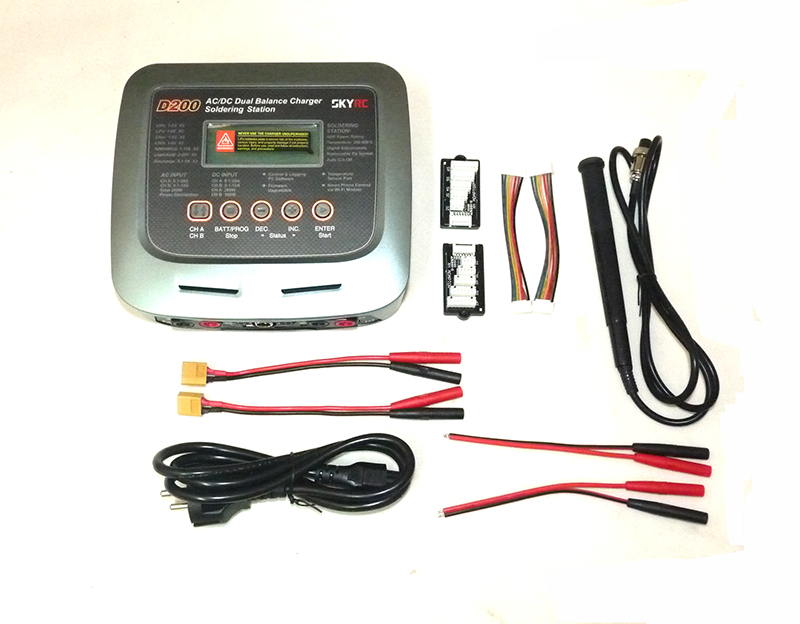

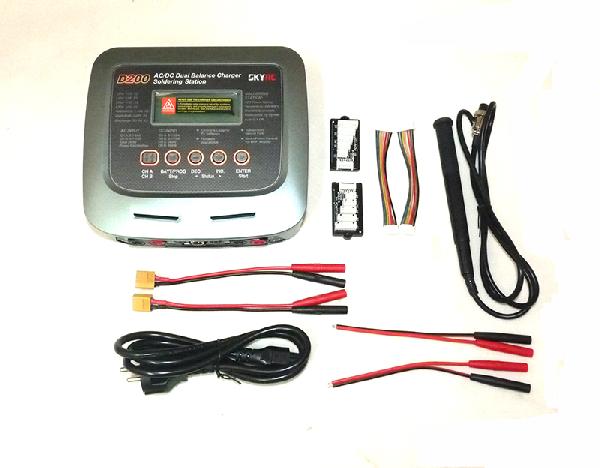

1 x charger with soldering iron D200
