Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Charger Adaptors/Conversion Cables/Leads SKYRC 2-6S JST-XH Parallel charging Board BCP-6S
SKU:  BCP-6S
Browse HiModel
SKYRC 2-6S JST-XH Parallel charging Board BCP-6S
Customers rating.
Manual:
Add To Wish List
Added:2011/08/02
Updated:2012/10/23
Follow Us on:


  Tags: XH charging Adaptor

Features:
This product is used to connect and charge 1 to 6 batteries in parallel (including the LiPo, LiFe and Lion).
Feature:
1. It can protect the charging batteries when short circuit happens.
2.It can support combined use for three parallel charging boards (It means you can charge eighteen batteries which have the same characters at the same time).
3. It has 20Z-thick copper foil, so it can withstand continual current of 80A.




4. It can prevent each cell overcharge, so it can improve the balance efficiency. And the later period of the balance charging cycle is shorted substantially.
5. It consumes only 1/6 of the time when charging six batteries separately consumes, so it can save the total charging time.
6. It avoids the trouble of replacing batteries repeatedly.
Specifications:

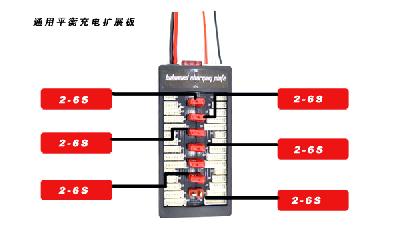

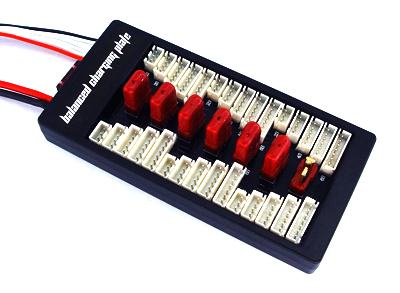

SKYRC 2-6S JST-XH Parallel charging Board BCP-6S
Balance Connector type: JST-XH (the type used for all HiModel Lipo batteries)
Charging port:
6 x 2S
6 x 3S
6 x 4S
6 x 5S
6 x 6S


* WARNING:
As all the connectors are connected in parallel, so it is highly recommended:
a. only charge batteries with same capacity and cell number (S number) at same time;
b. only charge the batteries which the voltage difference is within 1V at same time.
Includes/Requires:
Includes:
1 x Parallel charging Board
