Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers SKYRC 110-240V AC 1-6S 50W 6A Balance Charger B6AC+ V2
   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers
SKU:  B6ACV2
Browse SKYRC

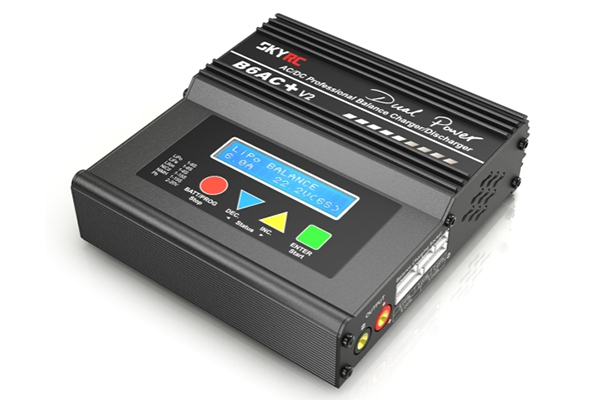

SKYRC 110-240V AC 1-6S 50W 6A Balance Charger B6AC+ V2
Customers rating.
Add To Wish List
Added:2015/11/24
Updated:2017/07/06
Follow Us on:



  Tags: SKYRC 110-240V AC 1-6S 50W 6A Balance Charger B6AC+ V2

Features:

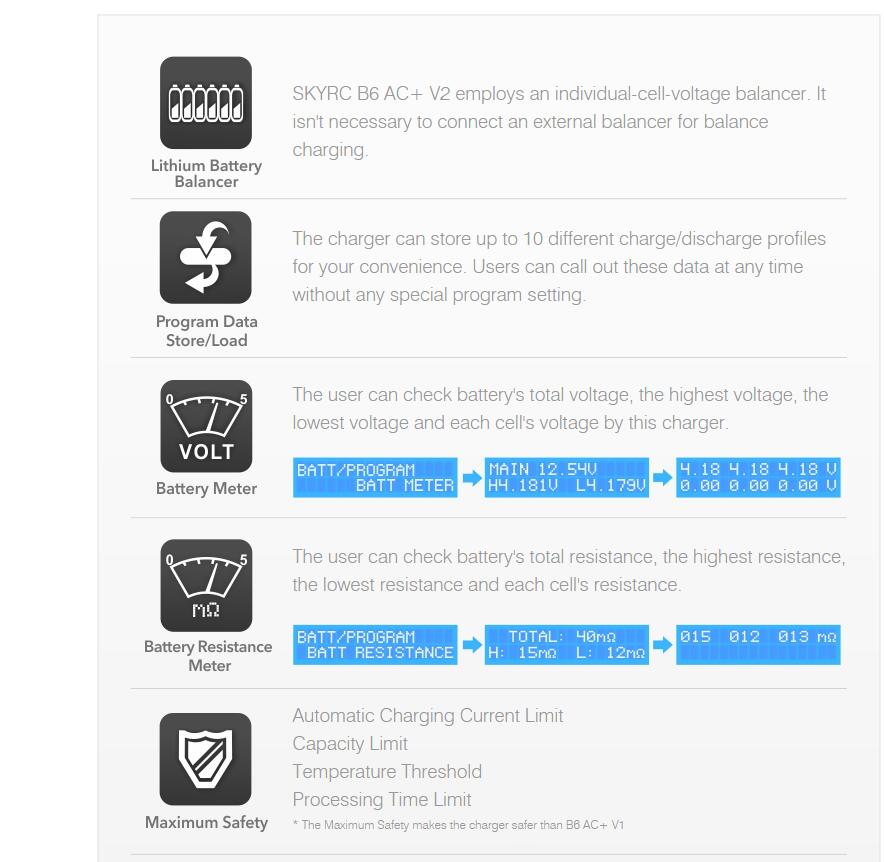

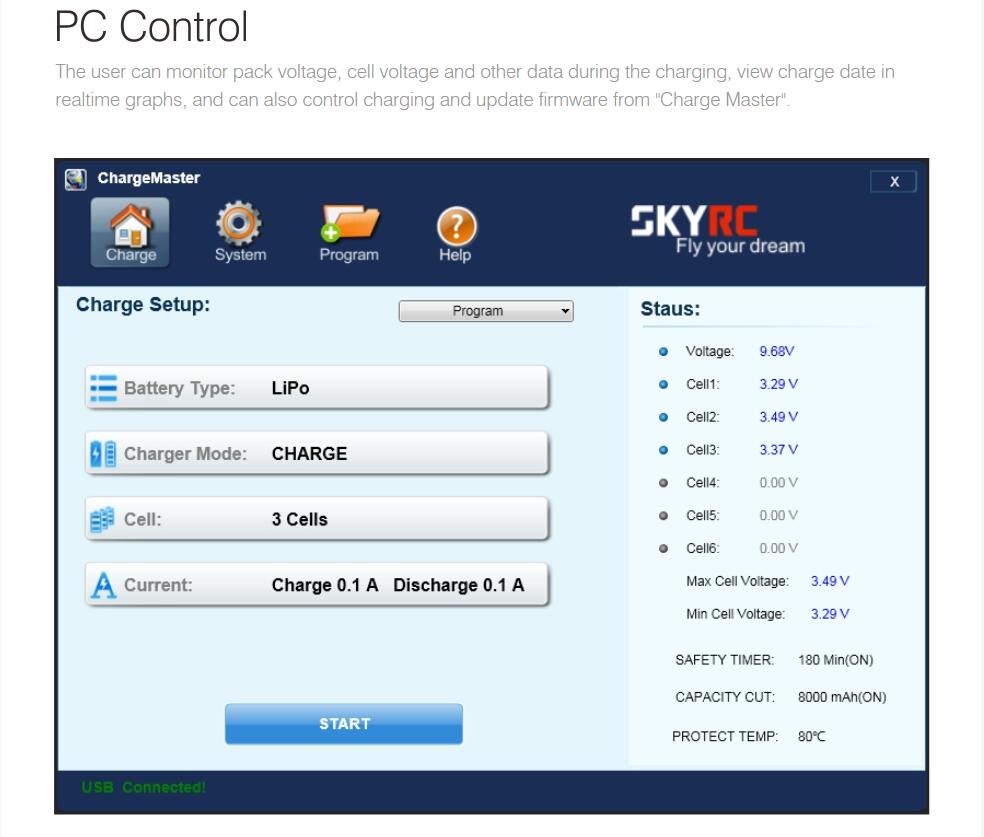

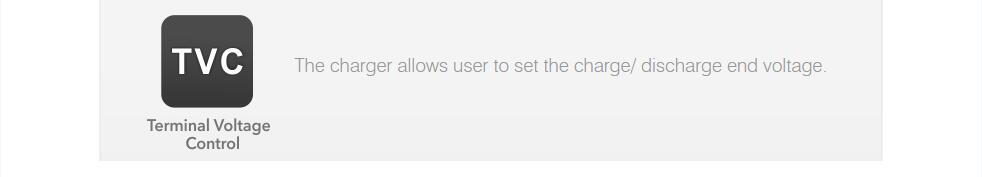

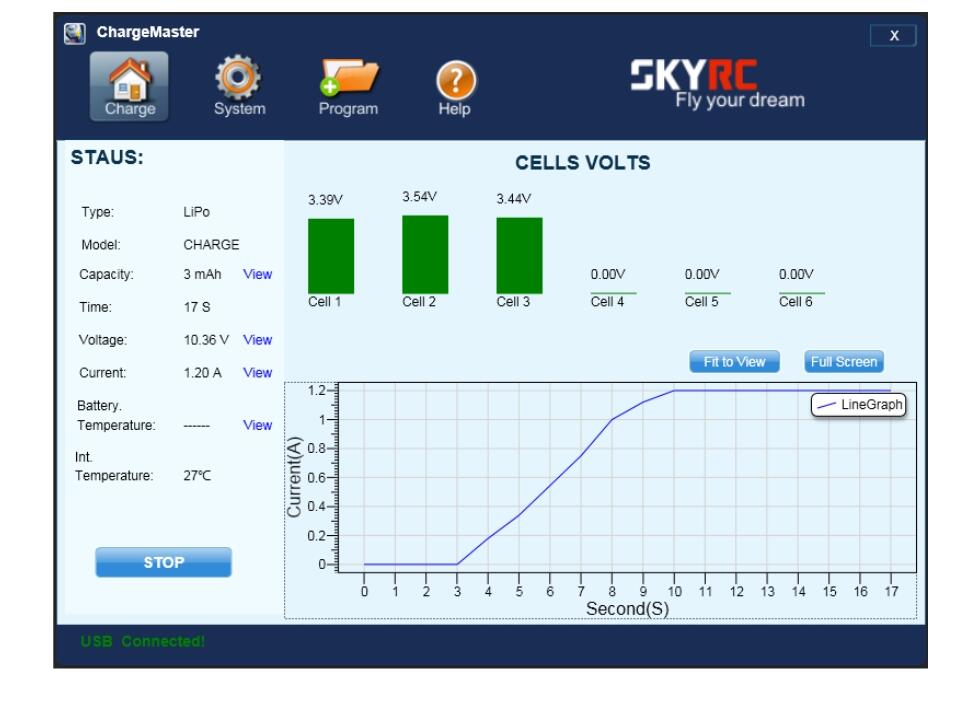

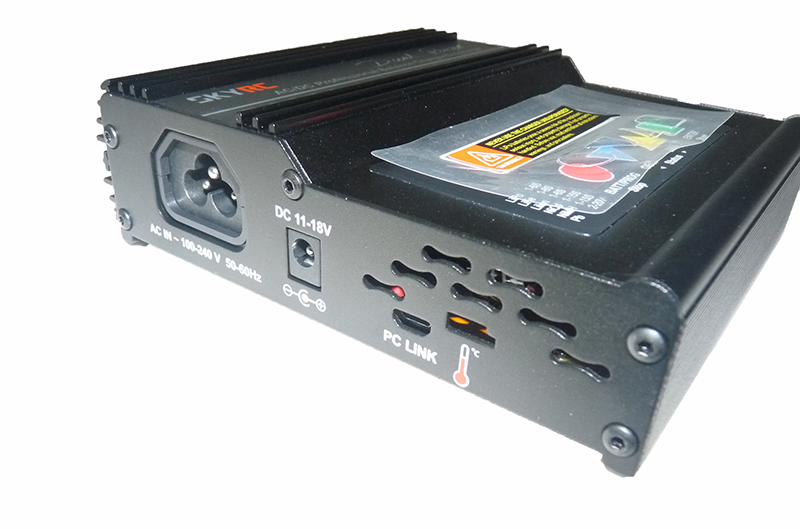

SKYRC B6AC+ V2 is the upgraded version for well-known IMAX B6AC+ V1. Compared with B6AC+ V1, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.

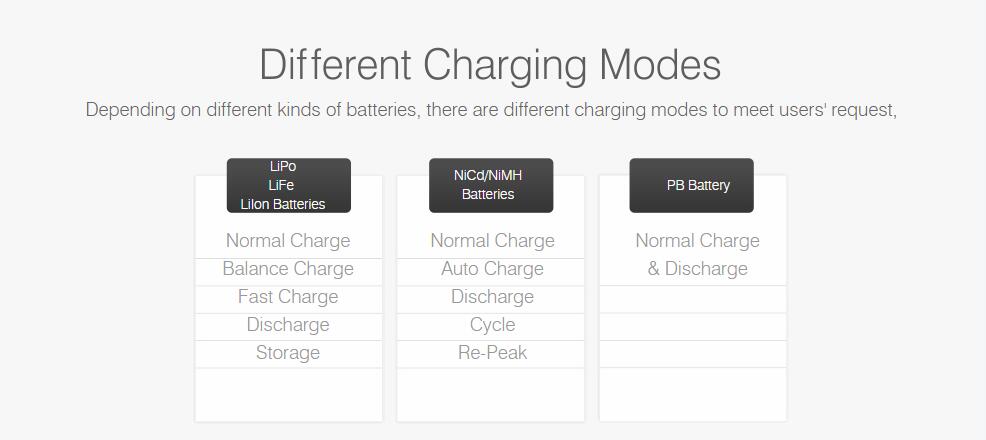

  SKYRC B6AC+ V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.










Specifications:

SKYRC 110-240V AC 1-6S 50W 6A Balance Charger B6AC+ V2

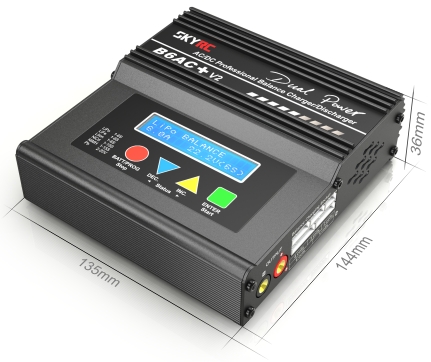

 Dimensions
 Net Weight 632g

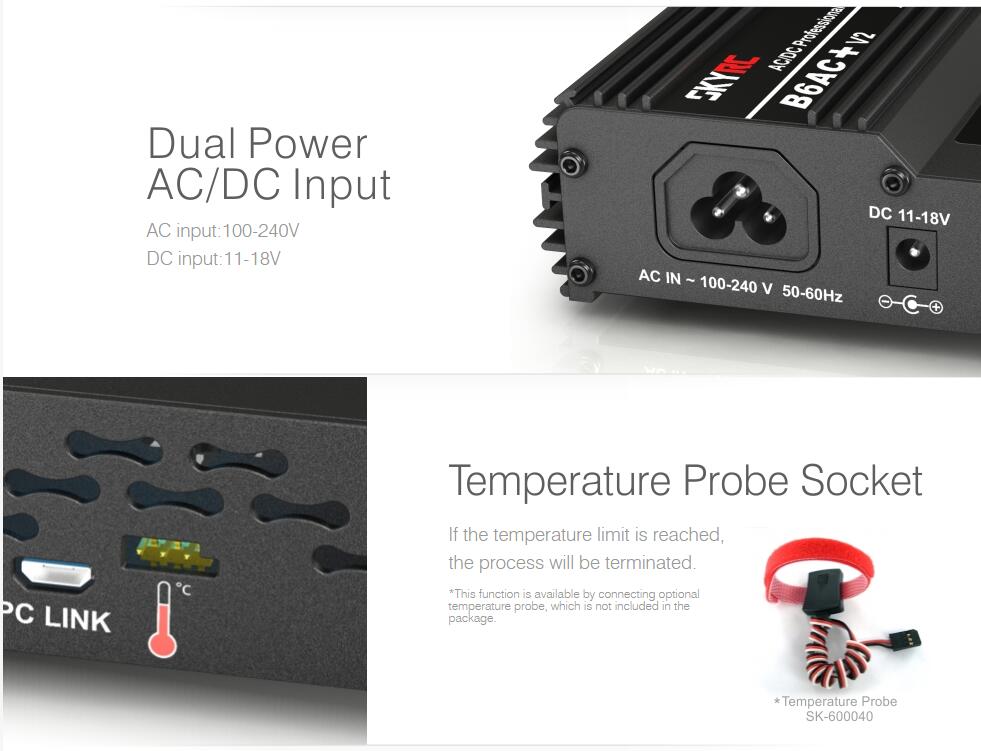

 AC Input Voltage 100-240V
 DC Input Voltage 11-18V
 Circuit Power Max Charge: 50W
Max Discharge: 5W
 Charge Current Range 0.1-6.0A
 Discharge Current Range 0.1-2.0A
 LiPo/LiFe/LiIon Cells 1-6S
 NiMH/NiCd Cells 1-15S
 Pb(Lead Acid) battery Voltage 2-20V

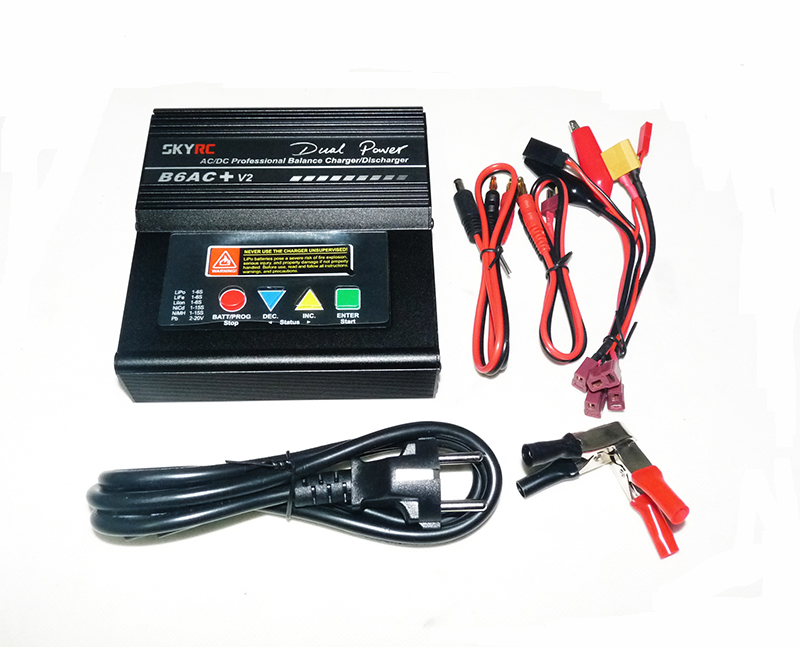

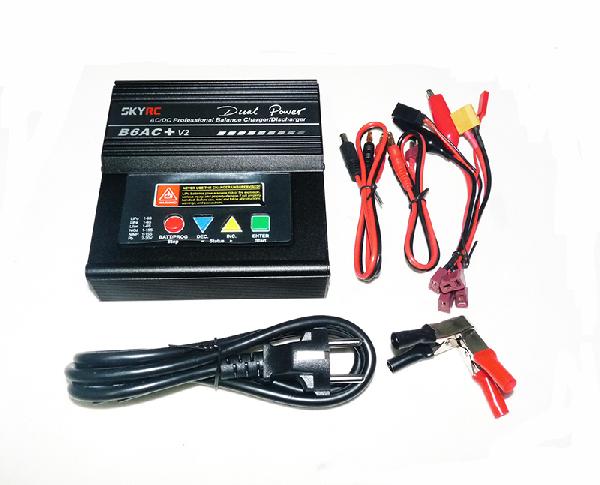

Includes/Requires:
Includes:
1 x charger
